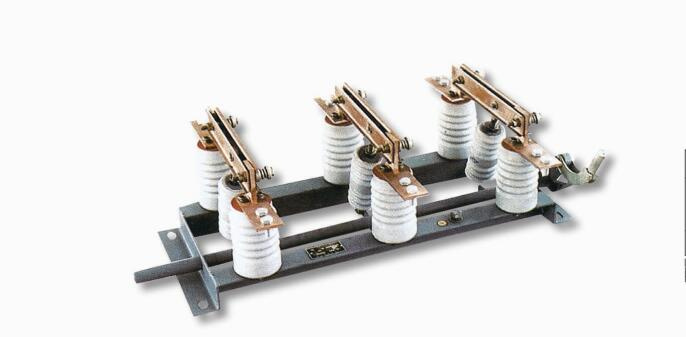

Gn19-12 Series 12kv Indoor High Voltage Isolating Switch

Name: Gn19-12 Series 12kv Indoor High Voltage Isolating Switch
Brand: all-electronics-online.com
SKU: 826463475
Availability: InStock
Rating: 4.9 (146 reviews)

Price:	Negotiable/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GN19-12 Series Disconnector
Type:	High-voltage
Structure:	Three-column Disconnector
Installation:	Indoor High-voltage
Operation:	Manual
Certification:	IEC
Brand:	Ziyong

Product Description

GN19-12 series isolate switch(indoor), used for in the three-phase AC 50/60Hz, rated voltage 12KV power system, comply with CS6-1 type manual operation mechanism which are designed to open and close overloading current and short-circuit.

Material: porcelain
Color: white

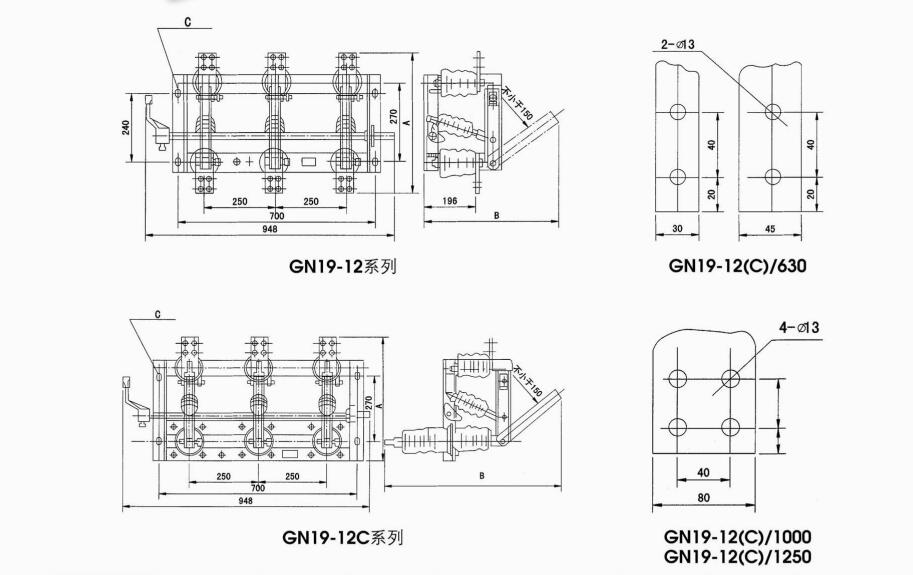

Drawing

Basic Data

Type	GN19-12/400	GN19-12/630	GN19-12/1000	GN19-12/1250	GN19-12C/400	GN19-12C/630	GN19-12C/1000	GN19-12C/1250
A	450	490	510	510	420	460	505	505
B	436	436	530	530	625	625	745	745
C	4-14×24	4-14×24	4-14×24	4-18×28	4-14×24	4-14×24	4-18×28	4-18×28

Type		GN19-12 /400-12.5	GN19-12 /630-20	GN19-12 /1000-31.5	GN19-12 /1250-31.5	GN19-12C /400-12.5	GN19-12C /630-20	GN19-12C /1000-31.5	GN19-12C /1250-31.5
Rated Voltage	kV	12	12	12	12	12	12	12	12
Rated Current	A	400	630	1000	1250	400	630	1000	1250
Rated Short-time withstand current	kA	12.5	20	3105	31.5	12.5	20	31.5	31.5
Rated Peak Withstand Current	kA	31.5	50	80	80	31.5	50	80	80

Festures:
Installation way is flexible
Perfect sealing Performance and Resistant To Rust
Simple, reliable mechanical rotating way
Perfect dustproof, waterproof, and anti-corrosion ability
Full set of steel galvanized foundation frame and the vertical and horizontal for option

Service
Choose our products! You'll get
1) Good quality guarantee (2 years)
2) Factory direct prices
3) On time delivery
4) Free sample
5) Professional technology support

Strict quality controls have been taken to ensure that you'll get reliable products.
a. Material checks before production.
b. Random inspection during production.
c. Inspection before the shipment.

Our products fully comply with well recognized standards such as IEC, BS, ANSI.

FAQ:
1. Q: Do you have a catalog? Can you send me the catalog to have a check of all your products?
A: Yes, We have product catalog. Please contact us, we'll send our catalog by E-mail.

2 Q: I can't find the product on your catalog, can you make this product for me?
A: Our catalog shows most of our products but not all. If you couldn't find it, let us know the specification of your requirements, it usually takes 20-30 days for us to design and make new moulds which match your requirements.

3 Q: What's your payment term?
A: The price FOB Ningbo under payment term is 50% T/T in advance and the balance before shipment.

Chongqing Ziyong Technology Co., Ltd(Wenzhou(Yueqing) Ziyong Electrical Co., Ltd )is a professional supplier and exporter of electric cable connectors and fittings. Our products include a wide range of Aerial Electrical Fittings (Main products like: Insulation piercing connectors, suspension clamps, anchor clamp, etc. ); A variety of Electric Power Fittings (PG clamps, Aluminium alloy stain clamps, wedge clamps, earth rod); Various kinds of terminals, lugs and link fittings; And many other products for power line system.

Our products are widely used in LV & MV power line system. All of our products with highest quality. We are CE certified, have the ISO9001: 2000 certificate, all the produce is according to International Standard, such as NFC, GB and so on. We also offer OEM service of customized requests. We owns the most advanced technology. Have the ability to research and design electricala apparatus by ourselves.

We also hope that we can receive the feedback from you on evaluating our products, offering your good ideas. Let us build up international quality in China together!
