Outdoor High Voltage 12kv Disconnect Switch Gw9-10W Series

Name: Outdoor High Voltage 12kv Disconnect Switch Gw9-10W Series
Brand: all-electronics-online.com
SKU: 826423885
Availability: InStock
Rating: 4.7 (67 reviews)

Price:	Negotiable/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	High Voltage GW9-10W Series
Type:	High-voltage
Structure:	Double-column Disconnector
Installation:	Outdoor High-voltage
Operation:	Manual
Certification:	IEC
Brand:	Ziyong

Product Description

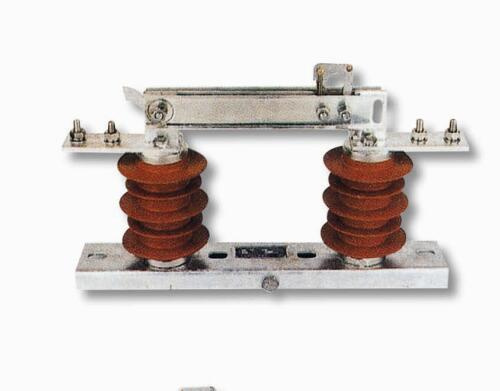

The "GW9" type of outdoor high voltage disconnector applies to the corresponding voltage and current load of power systems for electrical transmission and distribution lines and equipment connected or disconnected use, in order to overhaul the power system or power failure, indemnify the security of staff. Our products are designed, manufactured and tested to the disconnector requirements of current IEC standards.

Material:polymer
Color:brown
Standard:IEC

Drawing

Basic Data

Type		GW9-10W/400	GW9-10W/630
Rated voltage	kV	12	12
Rated Current	A	400	630
4S Heat steady e.c.	A	12500	12500
Shock current	A	31500	31500
Impulse withstand voltage	To earth, kV	75	75
Impulse withstand voltage	Across the isolating distance, kV	85	85
Power frequency withstand voltage	To earth, kV	38	38
Power frequency withstand voltage	Across the isolating distance, kV	42	42

Festures:
Beautiful shape and small size
Anti-aging and good anti-fouling and corrosion resistant ability
Light weight and easy installation
No need for periodic cleaning and maintenance

Service
Choose our products! You'll get
1) Good quality guarantee (2 years)
2) Factory direct prices
3) On time delivery
4) Free sample
5) Professional technology support

Strict quality controls have been taken to ensure that you'll get reliable products.
a. Material checks before production.
b. Random inspection during production.
c. Inspection before the shipment.

Our products fully comply with well recognized standards such as IEC, BS, ANSI.

FAQ:
1. Q: Do you have a catalog? Can you send me the catalog to have a check of all your products?
A: Yes, We have product catalog. Please contact us, we'll send our catalog by E-mail.

2 Q: I can't find the product on your catalog, can you make this product for me?
A: Our catalog shows most of our products but not all. If you couldn't find it, let us know the specification of your requirements, it usually takes 20-30 days for us to design and make new moulds which match your requirements.

3 Q: What's your payment term?
A: The price FOB Ningbo under payment term is 50% T/T in advance and the balance before shipment.

Chongqing Ziyong Technology Co., Ltd(Wenzhou(Yueqing) Ziyong Electrical Co., Ltd )is a professional supplier and exporter of electric cable connectors and fittings. Our products include a wide range of Aerial Electrical Fittings (Main products like: Insulation piercing connectors, suspension clamps, anchor clamp, etc. ); A variety of Electric Power Fittings (PG clamps, Aluminium alloy stain clamps, wedge clamps, earth rod); Various kinds of terminals, lugs and link fittings; And many other products for power line system.

Our products are widely used in LV & MV power line system. All of our products with highest quality. We are CE certified, have the ISO9001: 2000 certificate, all the produce is according to International Standard, such as NFC, GB and so on. We also offer OEM service of customized requests. We owns the most advanced technology. Have the ability to research and design electricala apparatus by ourselves.

We also hope that we can receive the feedback from you on evaluating our products, offering your good ideas. Let us build up international quality in China together!
