Cable AWG Thhn # 8 6 4 2 1 Electric Copper Cable Wire

Name: Cable AWG Thhn # 8 6 4 2 1 Electric Copper Cable Wire
Brand: all-electronics-online.com
SKU: 733198532
Availability: InStock
Rating: 5 (36 reviews)

Price:	US $ 0.2-3/Meter
Min Order:	1/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	THHN # 8 6 4 2 1
Rated Voltage:	300/500V 450/750V 600/1000V
Wire Type:	Thhn Thwn Cable
Jacket:	Nylon
Gasoline & Oil Resistant:	Mtw 90
Sheath:	PVC
Customized Service:	Yes
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	CCC
Brand:	Mafal

Product Description

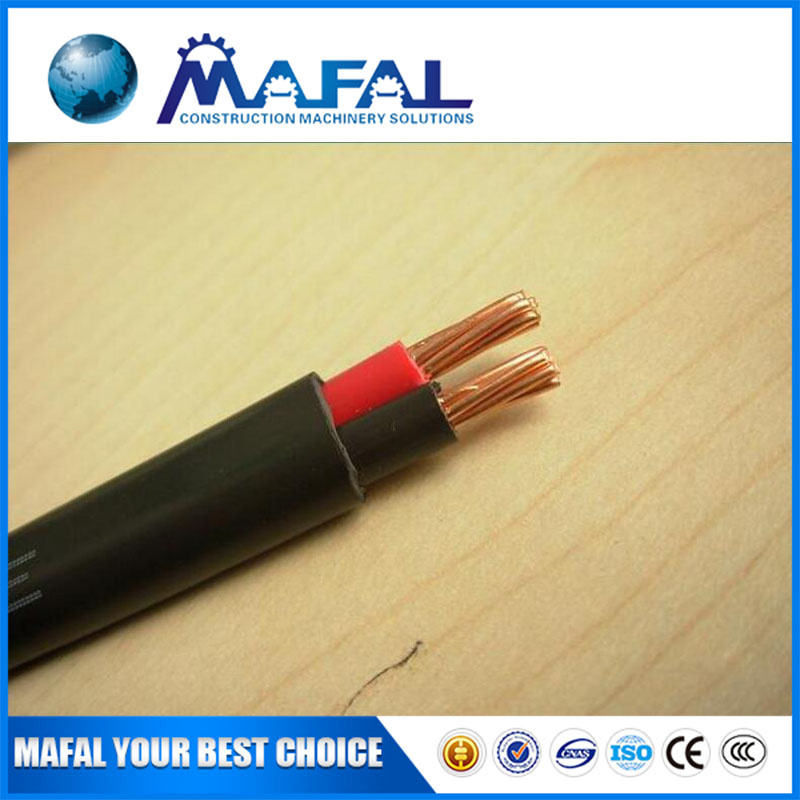

Cable AWG THHN # 8 6 4 2 1 Electric Copper Cable Wire

Product Description

Cable AWG THHN # 8 6 4 2 1 Electric Copper Cable Wire'

1.Product features:
The nylon jacket line termite, rodent, heat resistance
Nylon jacket line without any harm to the surrounding environment, green, environmentally friendly, and is best with a line of home improvement equipment power, lighting.
Nylon jacket line with light weight, smooth appearance, lubricity nylon itself, threading is not easy bruising, easy to wear pipe laying, and installed laying brings convenience and economy.
Having a high mechanical strength and excellent abrasion resistance, cold resistance, surface hardness, flexural strength, impact strength, chemical resistance, oil resistance, gasoline resistance and self-lubricating properties. 2.THHN THWN Nylon Coated Wire Applications:
THHN building wire is meant for use as general purpose wiring for installation in conduit or other recognized raceway. THHN may also be used for machine tool, appliance and control circuit wiring.

2. Approvals for 1/0AWG 2/0AWG 3/0AWG Nylon Insulated THHN THWN Electrical Wire :

UL listed Stds. 83 & 1063 as: Type THHN Wire 90° C in dry locations, Type THWN Wire 75° C in wet locations.

A-A-59544, NEMA WC-5, UL-758

CSA approval upon request

3. Description for 1/0AWG 2/0AWG 3/0AWG Nylon Insulated THHN THWN Electrical Wire :

Conductor: Bare copper, Soft Drawn

Insulation: PVC

Jacket: NYLON

Standard Colors(denoted by a dash and number code following the part number below): Black (-0), Brown (-1), Red (-2), Orange (-3), Yellow (-4), Green (-5), Blue (-6), Violet (-7), Gray (-8), White (-9), Pink (-10), Tan (-11); Striping and Other colors available upon request.

Gasoline & oil resistant - Type MTW 90° C Machine Tool Wire (stranded only) 105° C AWM, 80° C where exposed to oil.

Characteristics

SIZE AWG MCM	CROSS SECTION AL mm2	STRANDING number of wire x diametre mm	INSULATION THICKNESS mm	EXTERNAL DIAMETER mm	TOTAL WEIGHT KG/KM
20	0.52	1×0.813	0.76	2.33	9.81
18	0.82	1×1.02	0.76	2.54	13.16
16	1.31	1×1.29	0.76	2.81	18.1
14	2.08	1×1.63	0.76	3.15	26.1
12	3.31	1×2.05	0.76	3.57	38.3
10	5.26	1×2.59	0.76	4.11	57.4
8	8.34	1×3.26	1.14	5.54	95.2
14	2.08	7×0.62	0.76	3.38	27.8
12	3.31	7×0.78	0.76	3.86	40.1
10	5.26	7×0.98	0.76	4.46	59.9
8	8.37	7×1.23	1.14	5.97	105.2
6	13.3	7×1.55	1.52	7.69	170.4
4	21.15	7×1.96	1.52	8.92	255.5
2	33.62	7×2.47	1.52	10.45	388.9
1	42.36	7×2.78	2.03	12.4	482.9
1/0	53.49	19×1.89	2.03	13.51	621
2/0	67.43	19×2.12	2.03	14.66	778
3/0	85.01	19×2.39	2.03	16.01	934
4/0	107.2	19×2.68	2.03	17.46	1159
250	127	37×2.09	2.41	19.45	1368
300	152	37×2.29	2.41	20.85	1623
350	177	37×2.47	2.41	22.11	1876
400	203	37×2.64	2.41	23.3	2128
500	253	37×2.95	2.41	25.47	2631
600	304	37×3.23	2.79	28.19	3174
650	329	37×3.37	2.79	29.17	3345
700	355	37×3.49	2.79	30.01	3609

You may interested in some of our other products:

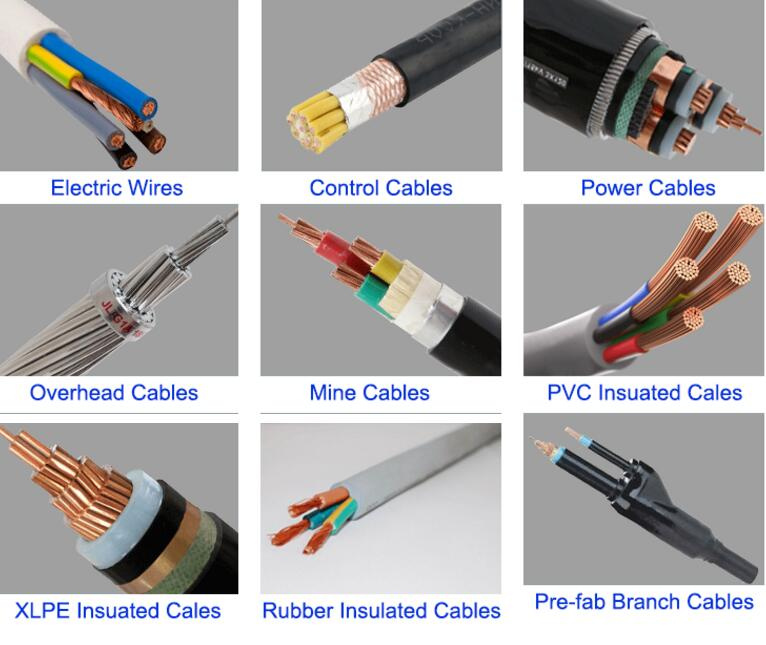

We specialize in supplying coaxial cable, welding cable, telephone cable, speaker cable, network cable, flexible cable, flat cable, alarm cable, single core cable and so on.
