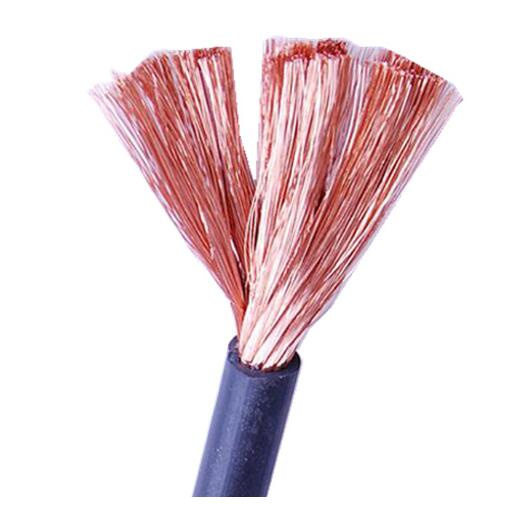

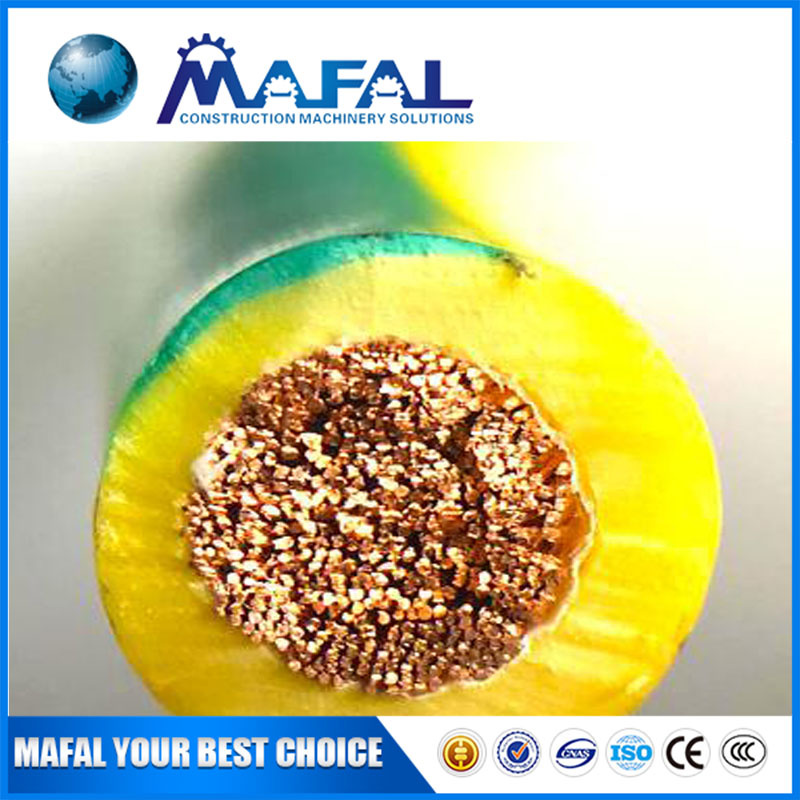

PVC Insulated Copper Conductor Single Core 25mm Electric Cable

PVC Insulated Copper Conductor Single Core 25mm Electric Cable
Price: US $ 0.1-1.2/Meter
Min Order: 1/Meter
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: 25mm electric cable
Rated Voltage: 300/500V 450/750V 600/1000V
Supply Ability: 2000 Kilometer/Kilometers
Maximum Serv: 90
Cores Number: 1-24
Sheath: PVC
Customized Service: Yes
Type: Insulated
Conductor Type: Stranded
Application: Underground
Conductor Material: Copper
Insulation Material: PVC
Certification: CCC
Brand: Mafal

Product Description

PVC Insulated Copper Conductor Single Core 25mm Electric Cable
Product Description

Item Name

Copper conductor PVC insulated wire

Model

17227IEC01(BV)

17227IEC05(BV)

17227IEC07(BV-90)

Abstract

Non-sheathed cables for fixed wiring

70 ºC Sheathed cables for fixed wiring

90 ºC single-core solid conductor sheathed cable

Rated Voltage

450/750V

300/500V

300/500V

Application

Power equipment, electrical appliances, instruments and telecom equipment



Characteristics

Normal area

(mm2)

Structure

(mm)

Insulation thickness

(mm)

Approx overall dia.

(mm)

1.0

1/1.13

0.60

2.50

1.5

1/1.38

0.70

3.00

7/0.52

0.70

3.20

2.5

1/1.78

0.80

3.40

7/0.68

0.80

3.60

4.0

1/2.25

0.90

4.00

7/0.85

0.90

4.20

6.0

1/2.76

0.90

4.80

7/1.04

0.90

5.00

10.0

7/1.35

1.00

5.80

16.0

7/1.70

1.00

6.80

25.0

7/2.14

1.20

8.50

35.0

7/2.52

1.20

10.00

50.0

19/1.78

1.40

11.90

70.0

19/2.14

1.40

13.70

95.0

19/2.48

1.60

15.80

120.0

37/1.95

1.60

17.20

150.0

37/2.20

1.80

19.30
