Cable Lug, Copper Tube Terminal

Name: Cable Lug, Copper Tube Terminal
Brand: all-electronics-online.com
SKU: 778129555
Availability: InStock
Rating: 4.8 (90 reviews)

Price:	US $ 10/Bag
Trade Terms:	FOB
Min Order:	2000/Bag
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Clnle Sq:	1.5~1000
Type:	Single Hole Terminals
Material:	Copper
Application:	Conduct Electricity

Product Description

Cable Lug, Copper Tube Terminal
·                       Shape/material: fork or ring/copper
·                       Processing: cold press
·                       Material: copper
·                       Surface treatment: silver-plated
·                       Good conductivity
·                       We also can supply you terminals according to your special requirement
·                       fork terminals, ring terminals, copper cable lugs, pin terminals, bullet male terminals, bullet female terminals, spade terminals, copper splice, piggy back terminals, long full insulating terminals, short full insulating terminals, tube terminals, cord end terminals, pin terminals

ITEM.NO.	d2	DIMENSION					CLNLE SQ
		d	D	B	E	L
SC1.5-5	5.2	1.8	3.7	8.0	6.5	16	1.5
SC2.5-4	4.2	2.4	4.0	8.0	7.0	18	2.5
SC2.5-5	5.2			10.0	7.0	20
SC4-5	5.2	3.1	4.8	10	7.5	20	4
SC4-6	6.5
SC6-5	5.2	3.8	5.5	10	8.0	23	6
SC6-6	6.5			12
SC10-6	6.5	4.5	6.2	12	9.0	25	10
SC10-8	8.4
SC16-6	6.5	5.4	7.1	12	11.0	30	16
SC16-8	8.4
SC25-6	6.5	6.8	8.8	13	13.5	33	25
SC25-8	8.4			18
SC35-8	8.4	8.2	10.6	15.3	14.5	38	35
SC35-10	10.5			18
SC50-8	8.4	9.5	12.4	17.8	17	45	50
SC50-10	10.5
SC70-10	10.5	11.2	14.7	21.0	19.5	50	70
SC70-12	13.0
SC95-10	10.5	13.5	17.4	25	23.5	55	95
SC95-12	13
SC120-12	13	15	19.4	28	26	63	120
SC120-16	17
SC150-12	13	16.5	21.2	30	29	70	150
SC150-16	17
SC185-16	17	18.5	23.5	34	33	75	185
SC240-16	17	21	26.5	38	40	90	240
SC240-20	21
SC300-16	17	23.5	30	43	44	98	300
SC300-20	21
SC400-16	17	28.5	36.5	50.1	46	110	400
SC400-20	21
SC500-16	17	30	39	56	50	120	500
SC500-20	21
SC630-20	21	35	45	65	56	140	630
SC800-BL	-	39	50.6	73.5	60	170	800
SC1000-BL	-	43	56.2	81	87	200	1000

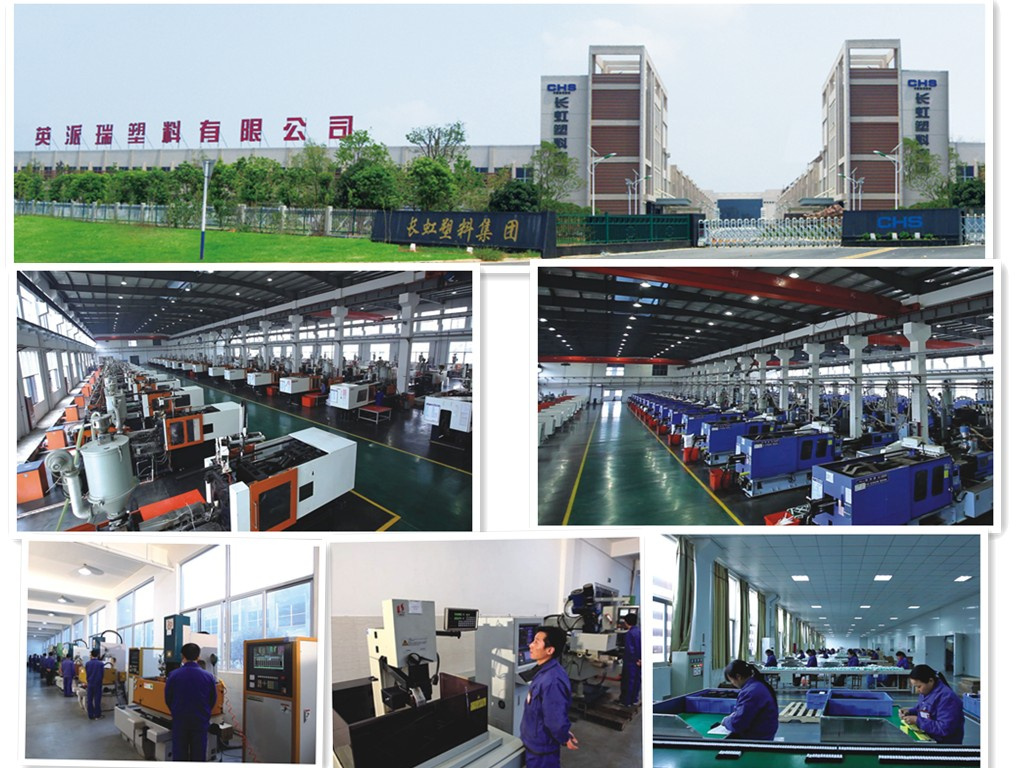

Headquarters: Xinguang Industrial Zone, Liushi, Yueqing, Zhejiang, China. President: Zheng Yuanhe
Production Base: Xinwu Economic development Zone, Wuhu, Anhui.
Date of Establishment: July 7, 1989. Registration Fund: RMB50, 500, 000
Floor Space: 150000m2 Building area: 230000m2 Employees: 1100(Mar, 15, 2012)
Main Product: self-locking nylon cable ties and other kind of nylon cable ties, stainless steel cable ties, cable clips, terminal blocks,
insulated terminals, wire joints, tie mounts, spiral wrapping bands, wiring ducts, cable glands, and other wire accessories.
Philosophy of CHS: Living on quality, developing on credit.
Approval Certificates:
In 1998, CHS was approved by ISO9001 International Quality System.
In 1999, Cable ties were certified by UL.
In 2000, Terminal blocks were awarded CE certificate.
In 2002, Cable glands got CE approval and passed IP 68 test by England UKAS Inspection Institution.
In 2004, Insulated terminals got the CE approval.
In 2005, Cable ties were awarded DNV certificate by Norway Ship Classification Society.
In 2006, CHS products passed SGS tests, conforming to the environment-protection standard of EU.
In 2007, CHS is chosen as "Chinese Famous Brand"
In 2008, Terminal blocks were certified by NF.
Wire ioints were certified by UL.
CHS was approved by ISO14001-Environmental Management system.
In 2009, CHS was named "Zhejiang Brand Product".
In 2010, CHS was named "Wenzhou Top Export Brand".
In 2010, CHS was named "Zhejiang Top Export Brand".
CHS was approved by OHSAS18001.
CHS was upgraded to group "Changhong Plastics Group".
CHS's production base-Wuhu in Anhui now is put into operation formally
