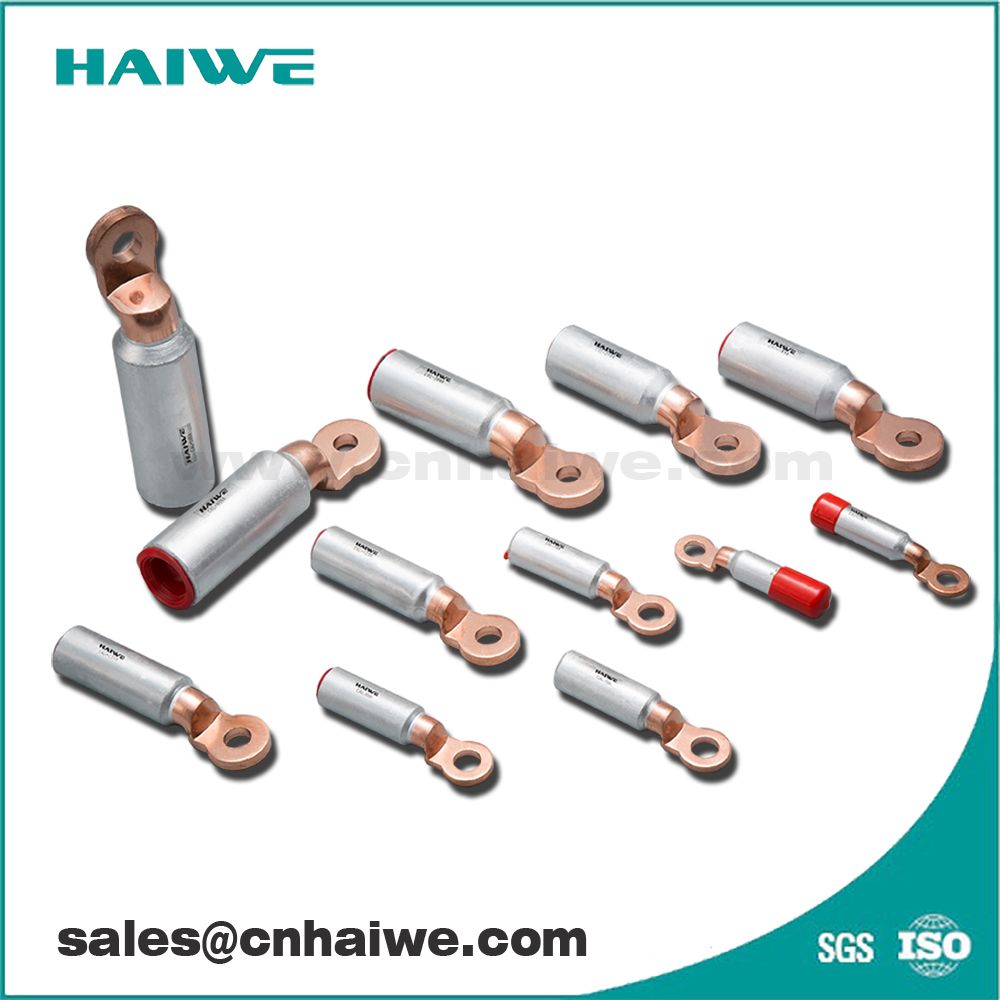

Cal Bimetal Cable Wire Terminal Lug

Prod Model:	CAL
Technique Of Production:	Friction Welding
Finished:	Acid Cleaning
OEM:	Accept
Sample:	Free
Application:	Conduct Electricity
Type:	Crimp Terminal, Terminal Lugs
Material:	Copper,Aluminum
Character:	High Conductivity
Production Process:	Punching
Shape:	Tubular
Interface Type:	Crimping
Certification:	SGS
Brand:	Haiwe

Product Description

Product Description
CAL Bimetal Cable Wire Terminal Lug
Material:
E-Cu; Al-99.6%

Technical Requirements:
1.Due to the coupling effect when Aluminum Comes in contact with copper, corrosion will happen in the short time.
The best solution is to use aluminum-copper bimetal connectors. It is according with IEC 61238-1.
2.The transition section between aluminum and copper is produced by friction welding, bending 180°,no breaking weld.
3.The marking should be clearly,well-proportioned with the depth of 3mm;
4.Closed angle and edge curl are not allowed at the mouth of the pipe.

Type No	Main Dimensions(mm)
	Φ	D	d	L	L1
CAL-16A	11	16	5.5	83	42
CAL-25A	11	16	6.5	83	42
CAL-35A	11	16	8	83	42
CAL-50A	13	20	9	90	43
CAL-70A	13	20	11	90	43
CAL-95A	13	20	12.5	90	43
CAL-120A	13	25	13.5	115	60
CAL-150A	13	25	15.5	115	60
CAL-185A	13	32	17.5	125	60
CAL-240A	13	32	19.5	125	60
CAL-300A	13	34	22.5	135	62


FAQ
1. How to buy your ideal products?
A: You can provide us your drawings, and we will produce it as per your drawings. Or we can design it if you do not have a clear plan.

2. How to pay?
A: TT and L/C are acceptable and TT will be more appreciated.30% deposit before producing, 70% balance before loading by TT.

3. What is the delivery time?
A: It depends on order quantity .Generally, the delivery time will be within 15 to 30 days.

4. Package information
A:For inner box and master carton are made as per international standards,and we can make special designed for you if need. And if necessary,will be packed in pallet to avoid any damage.
B:Not more than 35kg per carton box, about 1000kg per pallet

5.How long to make a sample? Is it free?
A:7 days depending on the sample's complexity .Normally ,our sample is free

6.How to contact us?
A:Send your inquiry details in the below,Click "send" now!
