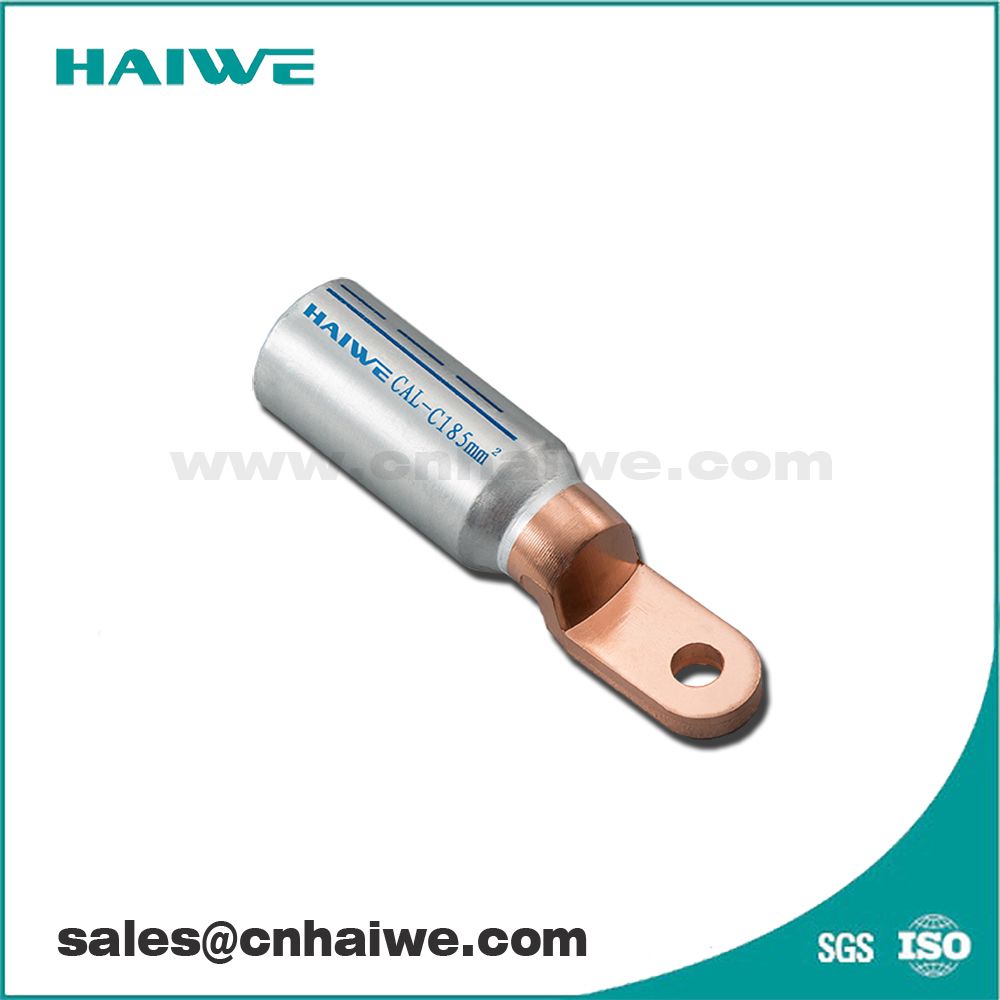

Cal-C Bimetal Copper Weld Cable Terminal Lugs

Prod Model:	CAL-C
Technique Of Production:	Friction Welding
Finished:	Acid Cleaning
OEM:	Accept
Sample:	Free
Application:	Conduct Electricity
Type:	Crimp Terminal, Lug
Material:	Copper,Aluminum
Character:	High Conductivity
Production Process:	Punching
Shape:	Tubular
Interface Type:	Crimping
Certification:	SGS
Brand:	Haiwe

Product Description

CAL-C Bimetal Copper Weld Cable Terminal Lugs

Application:
Bimetallic lug are mostly useful where an aluminum cable has to be terminated by a copper busbar or copper contact.
Technique of production:friction welding.
The transition section between aluminum and copper is produced by friction welding,bending 180°,no  breaking welding.
Barrels are supplied capped and filled with jointing compound to avoid oxidation of the aluminum conductor.

Material:
99.9% purity copper & 99.5% purity aluminum
1.Conductivity:copper 99.7% IACS  Aluminum 61.2% IACS(1050)
2.Final treatment:Acid cleaning
3.Size:16sqmm to 630sqmm,Note: Copper palm for 500sqmm and 630sqmm is square.

Type No	Main Dimensions(mm)
	Φ	D	d	L	A
CAL-16C	8.5	16	5.5	83	14
CAL-25C	8.5	16	6.5	83	14
CAL-35C	8.5	16	8	83	14
CAL-50C	8.5	20	9	90	16
CAL-70C	8.5	20	11	90	16
CAL-95C	8.5	20	12.5	90	16
CAL-120C	11	25	13.5	115	23
CAL-150C	11	25	15.5	115	23
CAL-185C	11	32	17.5	125	23
CAL-240C	13	32	19.5	125	29
CAL-300C	13	34	22.5	135	29
CAL-400C	13	39	25	137	29
