Capacitance Fuel Level Sensor for Fleet Management Jt606X

Name: Capacitance Fuel Level Sensor for Fleet Management Jt606X
Brand: all-electronics-online.com
SKU: 674234302
Availability: InStock
Rating: 5 (137 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	3/Piece
Pay Type:	T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	JT606X
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Materials Housing:	Industrial Aluminum
Medium Types:	Biodiesellllllllll; Kerosene; Petrol
Consumption:	0.17W/5V\0.24W/12V\0.48/24V
Digital:	RS-232, Eia-485, Can(Option)
Baud Rate:	2400, 4800, 9600, 57600, 115200
Accuracy:	0.5%
Electrode Pole:	Aluminum Alloy
Sealing:	IP67
Weight:	500mm
Output:	Switching Sensor
Type:	Digital

Product Description

1. Fuel level sensor
2. Easy to install
3. Can be cut off
4. Fuel consumption monitoring
5. Oil transportation

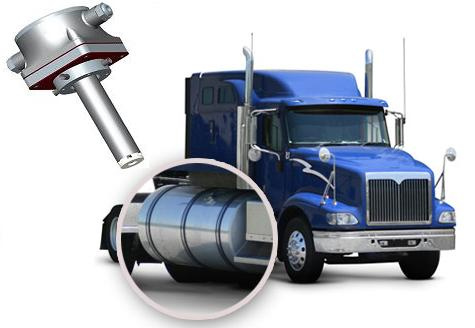

Fuel level sensor used for fleet managment and fuel level monitoring solution.

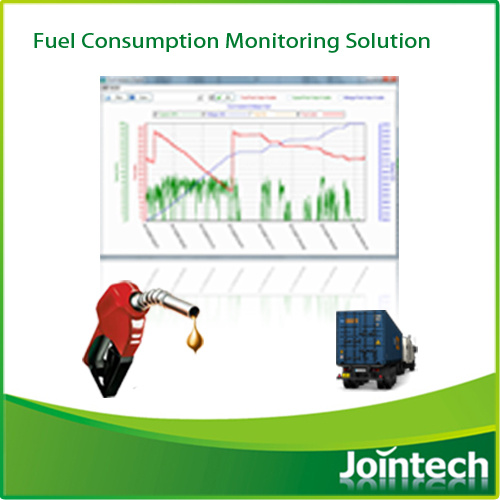

This solution provides high-precision measurement of fuel level in a fuel tank; Gives detailed informaiton about fuel tank refueling, draining, consumption; Prevents fraud or unauthorized use of fuel.

Unique features:
Adoption of measurement principle of high precision capacitance and application of power processing technology of industrial auto electronics, JT606X series fuel sensor sovled problem of measuring fuel level change precisely in severe environment. Which can not only be cut at spot, but also replace the origina l fuel detection unit, Especially with adoption of patented installation technology, which enable simple, reliable and convenient assembly.

Specifications:
Voltage: 4-70V
Consumption: 0.17W/5V, 0.24W/12V, 0.48W/24V
Output:
Current: 4 - 20mA
Voltage: 0 - 5V
Emulated resistive: 10 - 500Ω
Resolution: 0.5mm
Accuracy: 0.5%
Material:
Housing: Industrial aluminum
Electrode pole: Aluminum alloy
Medium Types:
Diesel; Biodiesel; Petrol, not suitable for conducting medium
Environment rating:
Temperature operating: -40° C - +85° C
Temperature storage: -40° C - +105° C
Sealing: IP67
Weight: 40G (500mm)

Skilled professionals dedicated to flexible customised solutions

For more than 10 years, the JOINT Industrial development team has been creating and implementing highly effective and innovative solutions to meet the varied needs of their customers. They have a proven reputation as the experts in cost-effectively deploying solutions for any equipment monitoring and management requirement

The JOINT industrial development team is also very experienced in streamlining ongoing operations to improve the performance of your monitoring and management solution in order to give you the greatest continuing return on your investment. The JOINT development team are proud of this reputation which not only boasts absolute flexibility, but also highlights their ability to come up with the perfect solution for all their customers irrespective of how unique or obscure the customer need.

When you choose a JOINT solution, their developers will work closely with you to design a solution to suit both your needs and your budget. They will investigate alternatives, clarify your requirements, project manage your order, train your staff and commission your system, all with the backup of an interactive database that keeps you informed and properly supported.

At your discretion, JOINT can fully train your staff and hand-over your system to enable ongoing in-house operations and management. This includes allowing full administrative rights over the software and the ability to modify the configuration / setup of any component of your system to best suit your company needs.

Their engineering team will continue to work with you to analyse your implementation, look for ways to improve the operations and useability of their implemented systems, and utilise their experience to help you find ways of more effectively integrating your new solution.

JOINT have a large global network of distributors and OEM product partners who have deployed to many companies across most industries. Contact JOINT today to discuss your needs and how they may be able to help. Who knows, they may have already deployed a solution to match your specific requirement.
