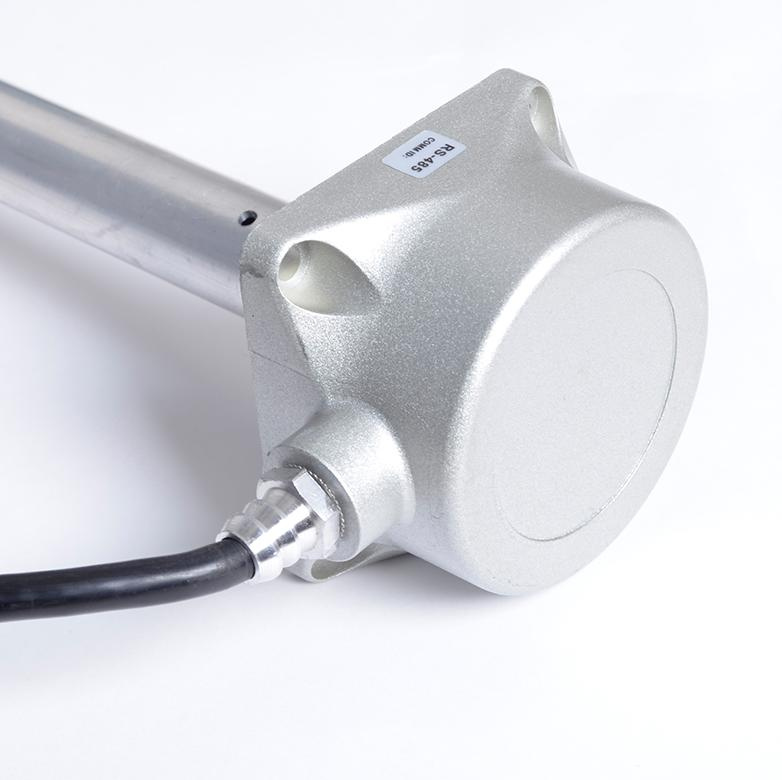

Capacitance Fuel Sensor for Fuel Monitoring System

Name: Capacitance Fuel Sensor for Fuel Monitoring System
Brand: all-electronics-online.com
SKU: 720605405
Availability: InStock
Rating: 5 (112 reviews)

Price:	US $ 80-90/Piece
Trade Terms:	EXW
Min Order:	3/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	JT606X
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificate:	CE
Housing Material:	Aluminum Alloy
Protection Grade:	IP67
Outputs:	RS-232, RS-485, 0-5V, 4-20mA
Function:	Fuel Monitoring
Accuracy:	0.5%
Length:	100-1500mm
Kind:	Liquid Level Transmitter
Structure:	All in One
Type:	Fuel Level Sensor

Product Description

The capacitance fuel sensor

Application: fuel monitoring in dynamic conditions for fleet fuel management.

Model: JT606X

1. Speciality:
1) Cuttable by clients themselves, fit for different fuel tanks.
2) Able to monitor regular shape fuel tanks and iregular shape fuel tank
3) flange design, easy installation
4) Passed Anti-explosion certification

2. Key Features
Accuracy: 0.5%
Resolution: 1mm
Output Signal: Voltage, Current, RS232, RS485
Output Voltage: 0— 5V
Output Current: 4— 20mA
Size: 10— 1500cm
Easy Installation
Easy Calibration

3. Parameters

Index	Parameter
Acquisition Principle	Capacitive
Power Input	4-70V
Power Consumption	0.13W/5V,0.19W/12V,0.38W/24V
Accuracy	Resolution: <1mm, Accuracy: <0.5%
Communication Interface	RS-232, RS-485, CAN (Customizable)
Baud Rate	2400,4800,9600,57600,115200 (or customized by users)
Output	Voltage : 0-5V, Current: 4-20mA
Measuring Range	10CM-150CM
Protection Grade	IP67
Housing Material	Aluminum alloy
Operating Temperature	-40°C ~~+85°C
Storage Temperature	-40°C ~~+105°C
Weight	400g (500mm)
Size	550mm, 750mm, 1000mm (Customizable)
