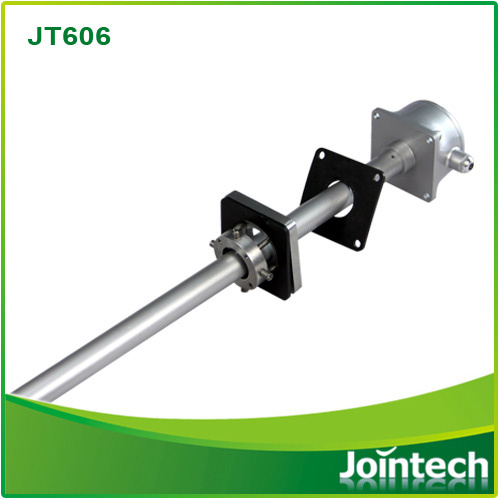

Capacitance Fuel Sensor with Easy Installation

Capacitance Fuel Sensor with Easy Installation
Price: US $ 75-160/Piece
Trade Terms: FOB
Min Order: 3/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: JT606
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificate: CE
Housing Material: Aluminum Alloy
Protection Grade: IP67
Outputs: RS-232, RS-485, 0-5V, 4-20mA
Function: Fuel Monitoring
Accuracy: 0.5%
Type: Fuel Level Sensor
Length: 100-1500mm
Kind: Liquid Level Transmitter
Structure: All in One

Product Description

The capacitance fuel sensor is used for fuel monitoring in dynamic conditions for fleet fuel management.


1. Applications
Logistics Fleet Fuel Consumption Monitoring
Oil Transportation Remote Monitoring
Genset Fuel Consumption Monitoring
Buses Fuel Consumption Monitoring
Coaches Fuel Consumption Monitoring
Consutruction Machineries Fuel Consumption Monitoring
Diesel Fuel Consumption Monitoring


2. Key Features
Accuracy: 0.5%
Resolution: 1mm
Output Signal: Voltage, Current, RS232, RS485
Output Voltage: 0— 5V
Output Current: 4— 20mA
Size: 10— 1500cm
Easy Installation
Easy Calibration


3. Parameters
Index Parameter
Acquisition Principle Capacitive
Power Input 4-70V
Power Consumption 0.13W/5V,0.19W/12V,0.38W/24V
Accuracy Resolution: <1mm, Accuracy: <0.5%
Communication Interface RS-232, RS-485, CAN (Customizable)
Baud Rate 2400,4800,9600,57600,115200 (or customized by users)
Output  Voltage : 0-5V, Current: 4-20mA
Measuring Range 10CM-150CM
Protection Grade IP67
Housing Material Aluminum alloy
Operating Temperature -40°C ~~+85°C
Storage Temperature -40°C ~~+105°C
Weight 400g (500mm)
Size 550mm, 750mm, 1000mm (Customizable)
Skilled professionals dedicated to flexible customised solutions

For more than 10 years, the JOINT Industrial development team has been creating and implementing highly effective and innovative solutions to meet the varied needs of their customers. They have a proven reputation as the experts in cost-effectively deploying solutions for any equipment monitoring and management requirement

The JOINT industrial development team is also very experienced in streamlining ongoing operations to improve the performance of your monitoring and management solution in order to give you the greatest continuing return on your investment. The JOINT development team are proud of this reputation which not only boasts absolute flexibility, but also highlights their ability to come up with the perfect solution for all their customers irrespective of how unique or obscure the customer need.

When you choose a JOINT solution, their developers will work closely with you to design a solution to suit both your needs and your budget. They will investigate alternatives, clarify your requirements, project manage your order, train your staff and commission your system, all with the backup of an interactive database that keeps you informed and properly supported.

At your discretion, JOINT can fully train your staff and hand-over your system to enable ongoing in-house operations and management. This includes allowing full administrative rights over the software and the ability to modify the configuration / setup of any component of your system to best suit your company needs.

Their engineering team will continue to work with you to analyse your implementation, look for ways to improve the operations and useability of their implemented systems, and utilise their experience to help you find ways of more effectively integrating your new solution.

JOINT have a large global network of distributors and OEM product partners who have deployed to many companies across most industries. Contact JOINT today to discuss your needs and how they may be able to help. Who knows, they may have already deployed a solution to match your specific requirement.
