Capacitive Fuel Level Sensor with Analog Output 0~5V

Name: Capacitive Fuel Level Sensor with Analog Output 0~5V
Brand: all-electronics-online.com
SKU: 674185012
Availability: InStock
Rating: 4.4 (150 reviews)

Price:	US $ 80-89/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	3/Piece
Pay Type:	T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	JT606
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Length:	10mm~2500mm
Accuracy:	0.5%
Sealing:	IP67
Medium Types:	Not Suitable for Conducting Medium
Output:	RS232, RS485, 0~5V, 4~20mA
Tank Shape:	All Different Kinds
Connection Cable Optional:	5m, 10m, 15m
Type:	Capacitive
Material:	Aluminium

Product Description

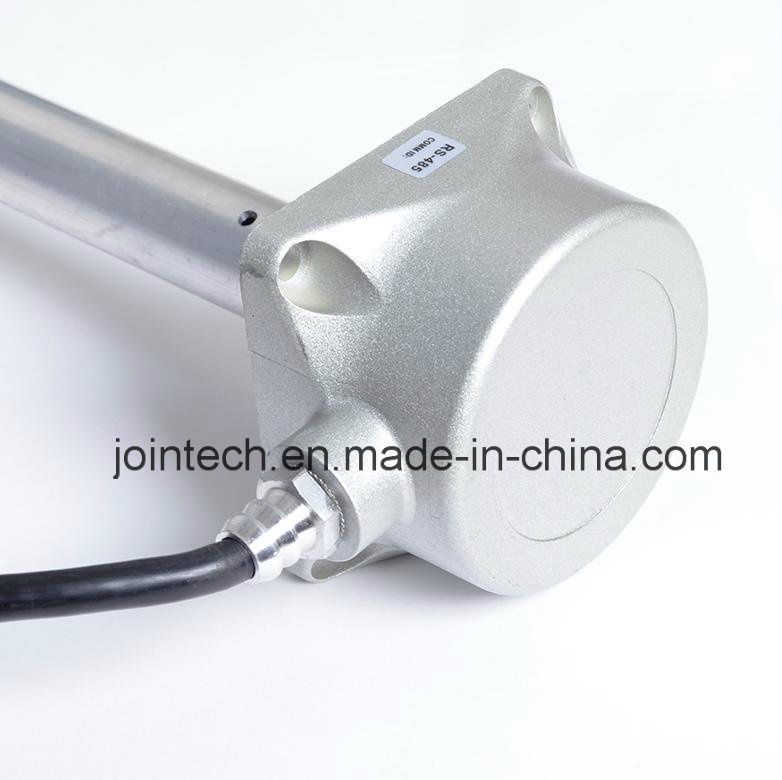

Capacitive Fuel Level Sensor 0~5V

MODEL NUMBER: JT606

Fuel sensor is a good tool to manage your mobile fleet and assets.

Fuel sensor JT606 is a capacitance type of fuel sensor of high precision, the accuracy is 0.5% and the resolution is 1mm, Voltage type, Current type and Digital type are available.

Fuel sensor JT606 could be cut off according to different size fuel tank. With high accuracy, better monitor your fleet. Only need drill one hole, with flange design

Working with GPS tracker & software:
1. Fuel sensor: Our capacitance fuel sensor with high accuracy 0.5%, in addition, it can be cut according to the depth of fuel tank, we can provide different types of fuel sensor: Digital, analog, voltage, the resolution is 1mm.
2. Hardware: Our GP series can monitor fuel sensors for detecting fuel consumption.
3. Software: Data will be displayed as curve real time. Good tool for manager to manage your fleet.

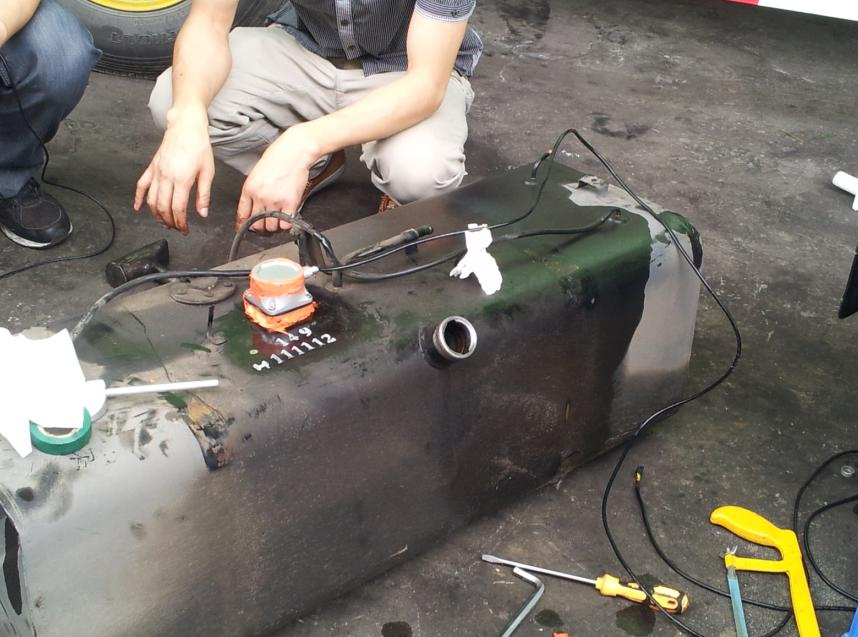

Real installation example:

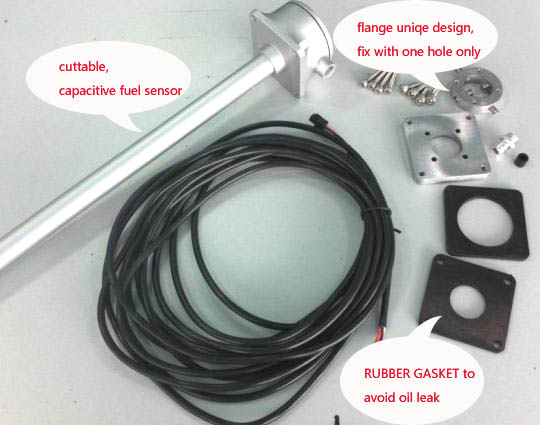

Drill one hole only, can reduce the risk of installation
Rubber gasket, can avoid oil leak

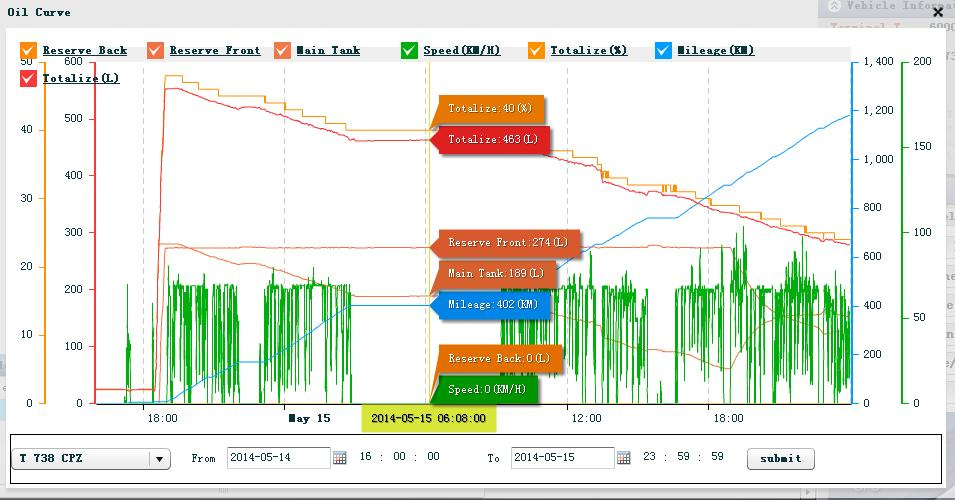

Performance on software:
Green line is speed, Red and orange is fuel data, only when speed > 0, there should be a fuel consumption.
And we can see directly bout 18:00, there's a refuel case.

Index	Parameter
Acquisition principle	Capacitive
Power input	4-70V
Power Consumption	0.13W/5V,0.19W/12V,0.38W/24V
Accuracy	Resolution: <1mm, Accuracy: <0.5%
Communication Interface	RS-232, EIA-485, CAN (can be customized)
Baud rate	2400,4800,9600,57600,115200 (or customized by users)
Analog Output	Voltage : 0-5V, Current: 4-20mA, Resistance: 10-500Ω
Measuring range	10CM-150CM
Protection grade	IP67
Housing Material	Aluminum alloy
Operating Temperature	-40°C ~~+85°C
Storage Temperature	-40°C ~~+105°C
Weight	400g (50mm)
Size	550mm, 750mm, 1000mm, can be customized.

Skilled professionals dedicated to flexible customised solutions

For more than 10 years, the JOINT Industrial development team has been creating and implementing highly effective and innovative solutions to meet the varied needs of their customers. They have a proven reputation as the experts in cost-effectively deploying solutions for any equipment monitoring and management requirement

The JOINT industrial development team is also very experienced in streamlining ongoing operations to improve the performance of your monitoring and management solution in order to give you the greatest continuing return on your investment. The JOINT development team are proud of this reputation which not only boasts absolute flexibility, but also highlights their ability to come up with the perfect solution for all their customers irrespective of how unique or obscure the customer need.

When you choose a JOINT solution, their developers will work closely with you to design a solution to suit both your needs and your budget. They will investigate alternatives, clarify your requirements, project manage your order, train your staff and commission your system, all with the backup of an interactive database that keeps you informed and properly supported.

At your discretion, JOINT can fully train your staff and hand-over your system to enable ongoing in-house operations and management. This includes allowing full administrative rights over the software and the ability to modify the configuration / setup of any component of your system to best suit your company needs.

Their engineering team will continue to work with you to analyse your implementation, look for ways to improve the operations and useability of their implemented systems, and utilise their experience to help you find ways of more effectively integrating your new solution.

JOINT have a large global network of distributors and OEM product partners who have deployed to many companies across most industries. Contact JOINT today to discuss your needs and how they may be able to help. Who knows, they may have already deployed a solution to match your specific requirement.
