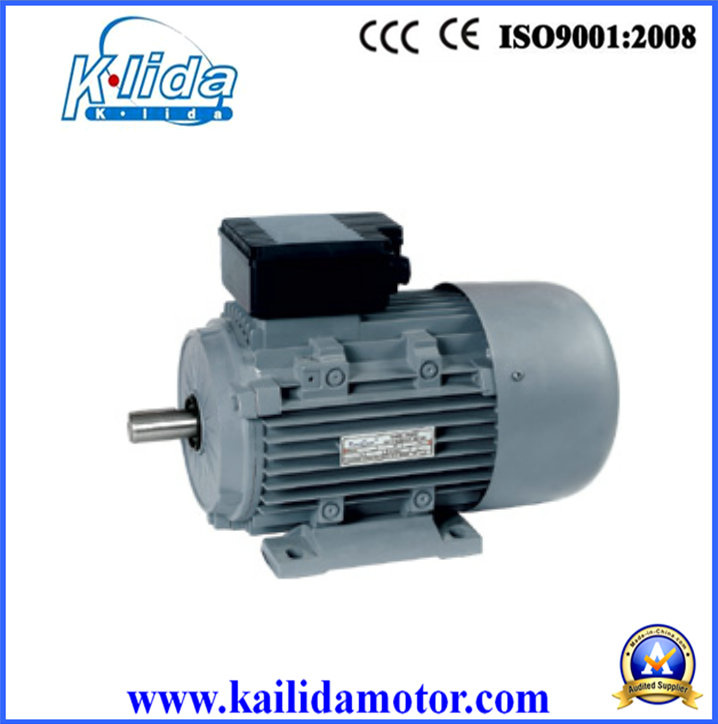

Capacitor Running Asynchronous Motor, According to IEC Standard.

Name: Capacitor Running Asynchronous Motor, According to IEC Standard.
Brand: all-electronics-online.com
SKU: 729741905
Availability: InStock
Rating: 4.3 (39 reviews)

Price:	US $ 30/Piece
Trade Terms:	FOB,EXW
Min Order:	50/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	YY-80M1-2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Blue
Eff.:	Ie1, Ie2, Ie3
Power:	0.12~315kw
Application:	Industrial
Operating Speed:	Constant Speed
Number Of Stator:	Single-Phase
Rotor Structure:	Winding Type
Casing Protection:	Protection Type
Brand:	K.Lida
Species:	Single Phase
Certification:	CE

Product Description

YY series single-phase capacitor running asynchronous motor is suitable for fans, ventilation and all kinds of light loading and none loading start equipment.

The series motor features by high power factor and efficiency, little shape, light weight, excellent running performance, low noise and easy maintenance.

Protection Class: IP44/IP54/IP55
Operation Type: S1
Insulation Class: B or F
Rated Voltage: 115/230, 220V
Cooling Type: IC0141
Rated Frequency: 60 Hz(50 Hz)
Shell material: Casting iron, aluminium alloy.
Cooling Method: IC411

TECHENICAL DATA OF Y2 SERIES
Type	Rated Power		Current	Speed	EFF	Power Factor	Tst/Tn	Ist/In	Mst/Tn	Noise	Libration grade
Type	kW	HP	A	r/min	(%)	COSφ	Tst/Tn	Ist/In	Mst/Tn	(dB)	(mm/s)
Y2-631-2	0.18	0.24	0.53	2730	65	0.8	5.5	2.2	2.2	61	1.8
Y2-632-2	0.25	0.33	0.69	2730	68	0.81	5.5	2.2	2.2	61	1.8
Y2-711-2	0.37	0.5	0.99	2750	70	0.81	6.1	2.2	2.2	64	1.8
Y2-712-2	0.55	0.75	1.39	2790	73	0.82	6.1	2.2	2.3	64	1.8
Y2-80M1-2	0.75	1	1.83	2845	75	0.83	6.1	2.2	2.3	67	1.8
Y2-80M2-2	1.1	1.5	2.6	2840	77	0.84	7.0	2.2	2.3	67	1.8
Y2-90S-2	1.5	2	3.5	2840	79	0.84	7.0	2.2	2.3	72	1.8
Y2-90L-2	2.2	3	4.9	2840	81	0.85	7.0	2.2	2.3	72	1.8
Y2-100L-2	3	4	6.4	2850	83	0.87	7.5	2.2	2.3	76	1.8
Y2-112M-2	4	5.5	8.1	2890	85	0.88	7.5	2.2	2.3	77	1.8
Y2-132S1-2	5.5	7.5	11	2910	86	0.88	7.5	2.2	2.3	80	1.8
Y2-132S2-2	7.5	10	15	2920	87	0.88	7.5	2.2	2.3	80	1.8
Y2-160M1-2	11	15	22	2935	88	0.89	7.5	2.2	2.3	86	2.8
Y2-160M2-2	15	20	29	2935	89	0.89	7.5	2.2	2.3	86	2.8
Y2-160L-2	18.5	25	35	2935	90	0.9	7.5	2.0	2.3	86	2.8
Y2-180M-2	22	30	41	2940	90	0.9	7.5	2.0	2.3	89	2.8
Y2-200L1-2	30	40	56	2945	91.2	0.9	7.5	2.0	2.3	92	2.8
Y2-200L2-2	37	50	68	2945	92	0.9	7.5	2.0	2.3	92	2.8
Y2-225M-2	45	60	82	2950	92.3	0.9	7.5	2.0	2.3	92	2.8
Y2-250M-2	55	75	100	2965	92.5	0.9	7.5	2.0	2.3	93	3.5
Y2-280S-2	75	100	136	2965	93	0.9	7.5	2.0	2.3	94	3.5
Y2-280M-2	90	125	160	2965	93.8	0.91	7.1	2.0	2.3	94	3.5
Y2-315S-2	110	150	196	2975	94	0.91	7.1	1.8	2.2	96	3.5
Y2-315M-2	132	180	234	2975	94.5	0.91	7.1	1.8	2.2	96	3.5
Y2-315L1-2	160	215	280	2975	94.6	0.92	7.1	1.8	2.2	99	3.5
Y2-315L2-2	200	270	348	2975	94.8	0.92	7.1	1.8	2.2	99	3.5
Y2-355M2-2	250	340	433	2980	95.3	0.92	7.1	1.8	2.2	103	3.5
Y2-355L2-2	315	420	544	2980	95.6	0.92	7.1	1.8	2.2	103	3.5
Y2-631--4	0.12	0.16	0.44	1320	57	0.72	4.4	2.1	2.2	52	1.8
Y2-632-4	0.18	0.24	0.62	1320	60	0.73	4.4	2.1	2.2	52	1.8
Y2-711-4	0.25	0.33	0.79	1350	65	0.74	5.2	2.1	2.2	55	1.8
Y2-712-4	0.37	0.5	1.12	1340	67	0.75	5.2	2.1	2.3	55	1.8
Y2-80M1-4	0.55	0.75	1.57	1390	71	0.75	6.0	2.4	2.3	58	1.8
Y2-80M2-4	0.75	1	2.05	1380	73	0.76	6.0	2.3	2.3	58	1.8
Y2-90S-4	1.1	1.5	2.9	1390	75	0.77	6.0	2.3	2.3	61	1.8
Y2-90L-4	1.5	2	3.7	1410	78	0.79	7.0	2.3	2.3	61	1.8
Y2-100L1-4	2.2	3	5.2	1410	80	0.81	7.0	2.3	2.3	64	1.8
Y2-100L2-4	3	4	6.8	1440	82	0.82	7.0	2.3	2.3	64	1.8
Y2-112M-4	4	5.5	8.8	1445	84	0.82	7.0	2.3	2.3	65	1.8
Y2-132S-4	5.5	7.5	11.9	1445	85	0.83	7.0	2.3	2.3	71	1.8
Y2-132M-4	7.5	10	16	1460	87	0.84	7.0	2.3	2.3	71	2.8
Y2-160M-4	11	15	23	1470	88	0.84	7.5	2.2	2.3	75	2.8
Y2-160L-4	15	20	30	1470	89	0.85	7.5	2.2	2.3	75	2.8
Y2-180M-4	18.5	25	36	1475	90.5	0.86	7.5	2.2	2.3	76	2.8
Y2-180L-4	22	30	43	1475	91	0.86	7.2	2.2	2.3	76	2.8
Y2-200L-4	30	40	58	1475	92	0.86	7.2	2.2	2.3	79	2.8
Y2-225S-4	37	50	70	1485	92.5	0.87	7.2	2.2	2.3	81	2.8
Y2-225M-4	45	60	85	1485	92.8	0.87	7.2	2.2	2.3	81	3.5
Y2-250M-4	55	75	103	1485	93	0.87	7.2	2.2	2.3	83	3.5
Y2-280S-4	75	100	140	1485	93.8	0.87	7.2	2.2	2.3	86	3.5
Y2-280M-4	90	125	197	1485	94.2	0.87	6.9	2.1	2.2	93	3.5
Y2-315S-4	110	150	201	1485	94.5	0.87	6.9	2.1	2.2	93	3.5
Y2-315M-4	132	180	241	1485	94.8	0.88	6.9	2.1	2.2	97	3.5
Y2-315L1-4	160	215	288	1485	94.9	0.88	6.9	2.1	2.2	97	3.5
Y2-315L2-4	200	270	360	1485	95	0.89	6.9	2.1	2.2	97	3.5
Y2-355M3-4	250	340	443	1490	95.3	0.9	6.8	2.1	2.2	101	3.5
Y2-355L3-4	315	420	556	1490	95.6	0.9	6.8	2.1	2.2	101	3.5

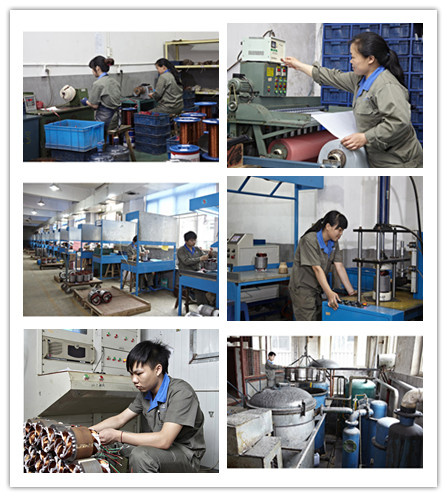

Zhejiang Kailida Explosion-Proof Electromechanical Co., Ltd. is an advanced manufacturer integrating design, production, sales and service. We specialize in developing & manufacturing electric motor, explosion-proof motors. We make progress and improvement constantly with complete quality checking facilities and strict quality controlling feedback system.

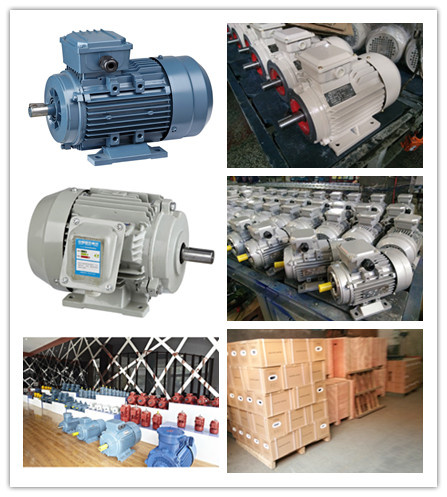

Main products include YB2, YBFseries explosion-proof motor. YS, Y, Y2, Y3, YX3, YSF series three phase electric motor, YC, YY, YL series single phase motor. We have passed ISO9001: 2000 quality management system, CCC, EXDI, EXDII BT4, MA and CE certification. Our products have been distributed to Europe, Middle East, southeast Asia, Africa, and so on.

We believe "best quality, highest reputation, important clients". We offer high quality products with competitive price and best service. We sincerely hope to establish steady cooperation with customers all of the world based on mutual benefits.
