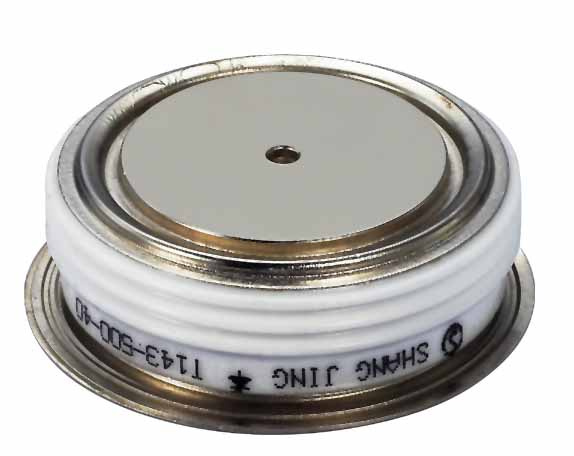

Capsule Version Welder Class Diode

Capsule Version Welder Class Diode
Price: US $ 35-50/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T,Paypal,Western Union
Prod Model: SD4000
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Vrrm: 200-600V
Irrm: 100mA
If(AV): 4000A
Vfm: 1.2V
Manufacturing Technology: Discrete Device
Material: Element Semiconductor
Type: Intrinsic Semiconductor
Package: Ceramic Disc Type Seal
Application: High Power Transformer, Motor Control
Model: SD4000
Batch Number: 2016+

Product Description

ZE series feature
Special for invert welder design
Low VTM
Short recovery time
Last soft recovery characteristic
Ceramic disc type seal
Double-sided cooling

KE series feature
Special for invert welder design
Diffuse biffer trigger
Low VTM
Short switch loss
Good dynamic feature
Could work at high switch frequency
TYPEIF(AV)VRRMIRRMIFSMI 2 TVFM/IFMrFRth(j-c)TjmM2Outline
AVmAAkA2sV/kA° C /W° CkN

SD40004000200-60010050KA180001.2/140.040.03-40-+15025E17
SD60006000200-60010060KA180001.2/150.040.025-40-+15025E17 E18
SD80008000200-60010080KA180001.2/160.040.02-40-+15025E18
China Shangjing Rectifier Co., Ltd. Was co-founded by China DELIXI Group, Shanghai Rectifier Co., Ltd. And Jingtai Electric Co., Ltd. In 1999. As one of the most professional manufacturers of power semiconductors and silicon rectifying whole set equipments, as well as the manufacturer for timer switch ( programmable timer switch, digital timer switch mechanical timer switch ) and circuit breaker ( mini circuit breaker, DPN miniatire circuit breaker, DPNL residual current circuit breaker etc) our company has been devoted to provide the high quality electronicsr products for our customers all over the world.

Shangjing Rectifier Co., Ltd. is located in Liushi Town which is well known as the "Capital of Electric City" in China. We are very close to the Wenzhou Airport and the deep-water sea port, which makes it very easy for us to reach our customers from the whole world.

Our company has been certified by China Industrial Department and we have got CE certificate. Furthermore, our products are compliant to the latest RoHS directions.

We have brought advanced technologies and equipment from abroad and kept improving our management and products quality. We stick the spirit of "Chasing for high quality and Servicing our clients with all our heart and credibility", we have gained a lot of honors like "AAA class China quality & credibility company", "member of China Electric Industry Association", etc. We have been exporting our products to Europe, South and North America, Middle East, Africa and earned a lot of good feedback.

We hope our high quality products and service will be bringing successful future to all our customers.
