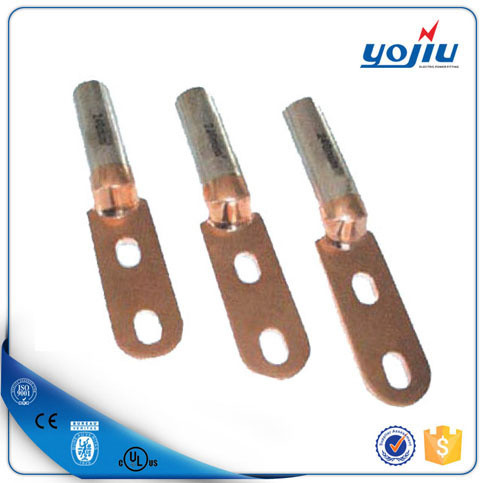

Casd Bimetallic Cable Lug Double Hole Crimping Terminal Type

Name: Casd Bimetallic Cable Lug Double Hole Crimping Terminal Type
Brand: all-electronics-online.com
SKU: 840403775
Availability: InStock
Rating: 4.3 (95 reviews)

Price:	US $ 0.1-10/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	CASD
Yojiu Profession:	28 Years
Crimp Terminal Surface:	Original or Tin Plated
Crimp Terminal Material:	Copper and Aluminium
Usage:	Wire Connector, Power
Others:	OEM Service Offered
Product Name:	Dtld-2 Lug
Name:	Bimetal Cable Lug
Special:	Friction Welding
Certificate:	ISO9001
Samples:	Available
Type:	Dual Hole Terminals
Application:	Conduct Electricity
Material:	Aluminium&Copper
Character:	Other
Production Process:	Friction Welding
Interface Type:	Other
Certification:	Other
Brand:	Yojiu or OEM

Product Description

Product Description

1.Good nature in electrification
2.Resistance to galvanic corrosion
3. Long service life.

CAS Bimetal Cable Lug,Terminal lugs DTL-2 Type CAS Bimetal Cable Lug,Terminal lugs DTL-2 Type

CASD bimetal cable lug/terminal lugs TDL-2 type with two holes on the palm are suitable for transition connection of the circular aluminum wires,hemicycles-sector aluminum wires, power supply cables in the distribution equipment and copper terminals of the electrical equipment. They are made from Cu 99.9% purity and Al 99.5 purity. The barrel is friction wedded to the palm, so that the best possible transition between copper palm and aluminum barrel. To avoid oxidization of the aluminum barrel capped greased. When crimping, it forced the joint compound into conductor strands.

We are able to produce special bimetals on request.

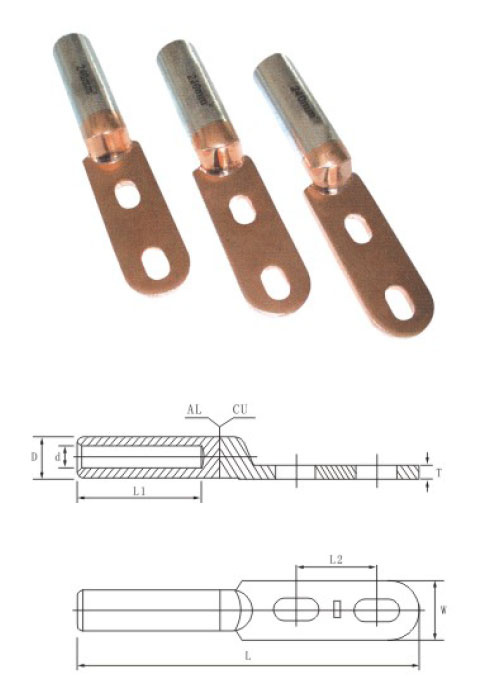

Dimension

Item No.	Cable spec(mm2)	Dimension(mm)							Note
Item No.	Cable spec(mm2)	D	d	L1	L	W	T	φ	Note
CASD35	35	14	8.5	40	155	26	4	4	1)Can be produced according to customer's drawings 2)Friction welded
CASD50	50	16	9.5	40	155	26	4.5	4.5
CASD70	70	18	11.5	40	155	26	5	5
CASD95	95	21	13.5	50	180	30	5.5	5.5
CASD120	120	23	15	50	180	30	6	6
CASD150	150	25	16.5	50	180	30	6	6
CASD185	185	28	18.5	60	200	40	7	7
CASD240	240	30	21	60	200	40	7	7

We are the biggest manufacturer and exporter of electric power fitting and cable accessory in China. We have more than 20 years experience and we are ISO9001/2000 certified enterprise. Our campany located in Liushe Town, Wenzhou. Liushi is the centr of eelectric appliance in China. It isabout 15Kmfar away from Wenzhou Airport and Railway Station and 104State level highway across through. Therefore the transportation is very convenient.

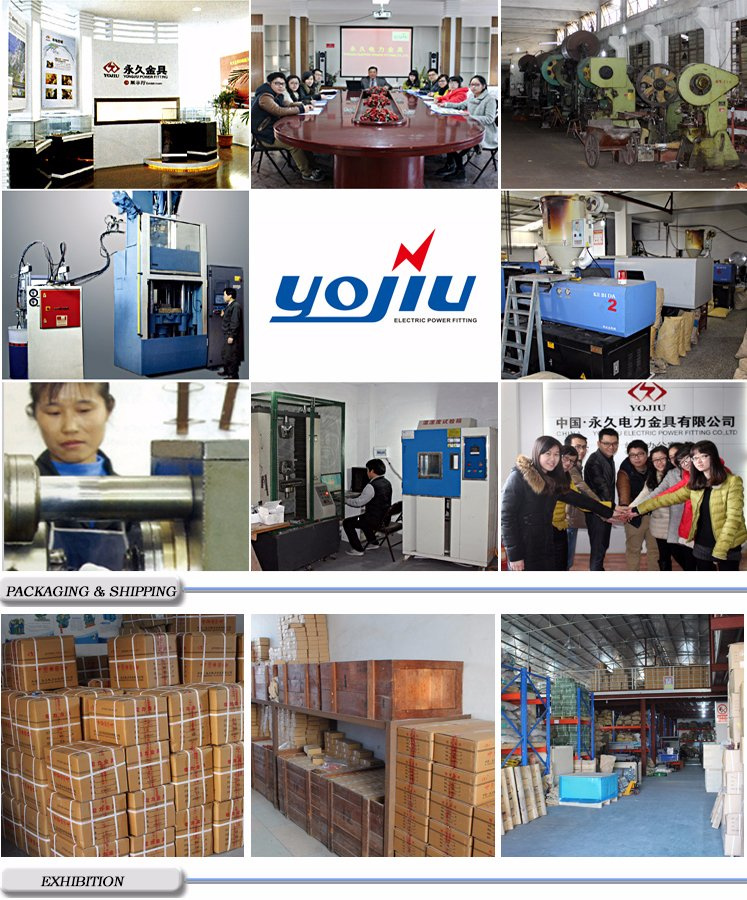

The total area of our company is over 1500m2. We have more than300 workers include 38 senior and intermcdiate special technical personnel and administraive personnel. We havemore than 200 series and 3000 vareties products. Include cable hardware, circuity hardware, substation hardware, power station hardware, cabletie, heat or cold shrinkable material and other accessory.

Our product has been exported to the Southeast Asia, Africa, Middle East, Europe and America more than 40 countries. In our trade with merchants of various countries, we always adhere to theprinciple of equality and mutual benefit. Welcomecustomers in this line to come over for negotia-tion and cooperation and make contribution to development of electric power.
