Pre-Insulated Bimetallic Cable Lugs Aluminum Copper Terminal for Over Head Line

Name: Pre-Insulated Bimetallic Cable Lugs Aluminum Copper Terminal for Over Head Line
Brand: all-electronics-online.com
SKU: 840402155
Availability: InStock
Rating: 5 (104 reviews)

Price:	US $ 0.1-10/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	CPTA
Yojiu Profession:	28 Years
Crimp Terminal Surface:	Original or Tin Plated
Crimp Terminal Material:	Copper and Aluminium
Usage:	Wire Connector, Power
Others:	OEM Service Offered
Product Name:	Cptau Cable Lug
Name:	Bimetal Cable Lug
Special:	Friction Welding
Certificate:	ISO9001
Samples:	Available
Type:	Single Hole Terminals
Application:	Conduct Electricity
Material:	Aluminium&Copper
Character:	Other
Production Process:	Friction Welding
Interface Type:	Other
Certification:	Other
Brand:	Yojiu or OEM

Product Description

Product Description

Pre-insulated bimetallic lug is composed of an aluminum barrel friction welded to an aluminum or copper palm. The insulation of the barrel is made with a black thermoplastic sealed with a flexible elastomeric ring.A seal is also installed in, between the copper and the aluminum, in order to avoid galvanic corrosion.The crimping is made directly on the plastic part.
CPTA/CPTAU Standard Pre-Insulated Bimetal Cable Lug For ABC Cable;
CPTA/CPTAU Standard Pre-Insulated Bimetal Cable Lug is designed to connect the insulated cable(include ABC cable). It is in accordance with NFC33-021. The waterproof cap can prevent the water into the barrel. It is colored differently to distinguish the cable sizes.
CPTA/CPTAU Standard Pre-Insulated Bimetal Cable Lug For ABC Cable.

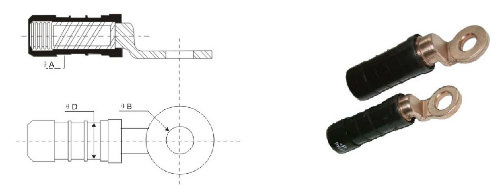

Dimension

Item No.	Corss section	Dimensions(mm)
	(mm2)	Φa	φB	Φd
CPTA 35	35	8	16	20
CPTA 50	50	9	16	20
CPTA 54	54	10	16	20
CPTA 70	70	10.5	16	20
CPTA 95 D20	95	12.2	16	20
CPTA 150-21 D20UK	150	15.5	21	20
CPTUAU 16D16	16	5.5	10.5	16
CPTAU 25D16	25	6.5	10.5	16
CPTAU 35	35	8	12.8	20
CPTAU 50	50	9	12.8	20
CPTAU 54	54	10	12.8	20
CPTAU 70	70	10.5	12.8	20
CPTAU 95	95	12.2	12.8	20
CPTAU 120 D25	120	14.2	12.8	25
CPTAU 150 D25	150	15.5	12.8	25
