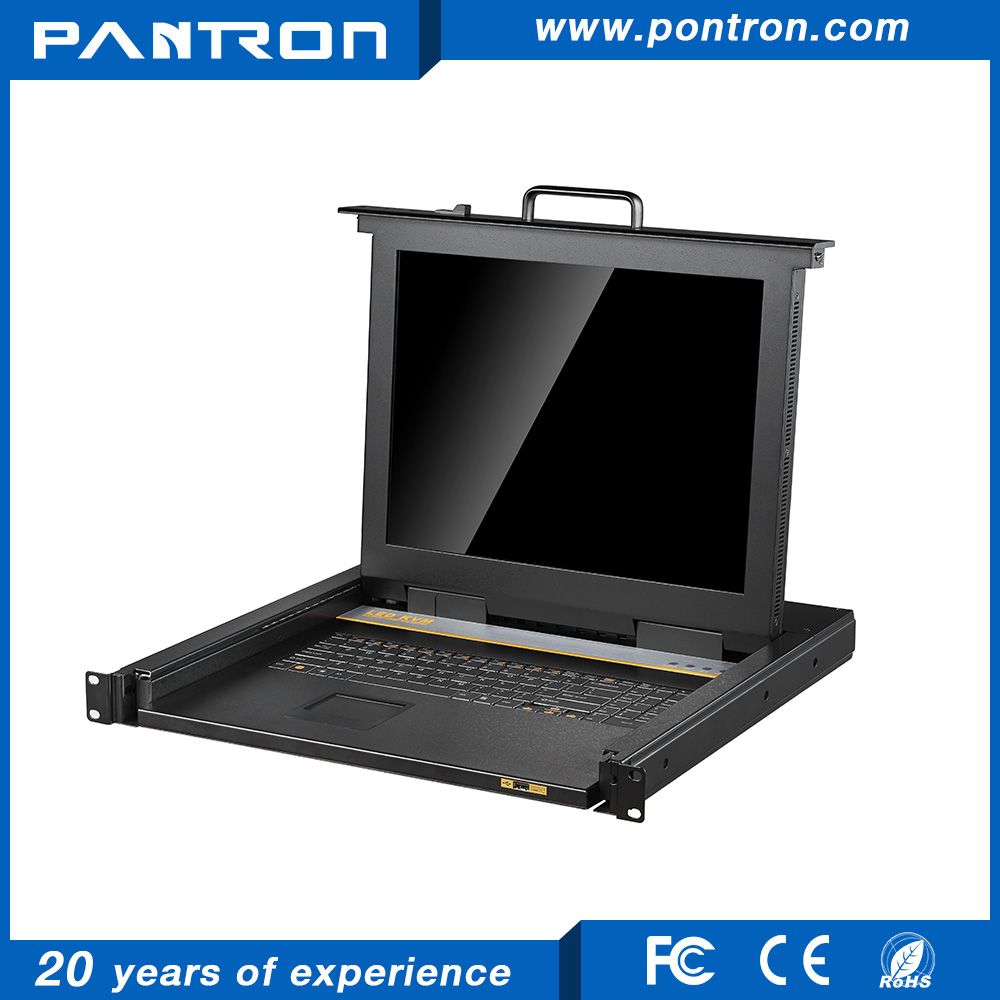

CAT5 8ports/16ports/ 32ports 1U rack mount 17'' LED KVM switch
| Price: |
US $ 425/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
KVM-1700C |
| Size: |
17 inch high-brightness LCD screen |
| Local Console: |
Keyboard / Mouse/ Display (2*USB +1* HDB-15 female |
| Connector Port: |
8 /16 / 32 * CAT5 (RJ45 port ) |
| Resolution: |
1024 * 1280 @75Hz |
| Brightness: |
300nit |
| Power Input: |
DC12V input, (AC100-240V 47-63Hz, 35W ) optional |
| Usage: |
Server |
| Type: |
Wired |
| Support Network: |
Ethernet |
| Information Content: |
Data |
| Certification: |
FCC |
| Condition: |
New |
Product Description
Main feature:« 19'' 1U rack mount 17'' LED KVM switch with touch pad+Mouse +104keys keyboard with integrated Digital&E-switch keys. « Supports front USB for keyboard/mouse« Support USB+VGA local console « Excellent video effects, the best resolution is up to 1280*1024@ 75HZ. « Using RJ-45 interface, the CAT5/ CAT5E/CAT6 UTP cable are connected to the host computer ,control distance is up to 20M.« With 21 electronic al gain adjustment, it can avoid signal attenuation cause by distance problem .Introduction:
« Withdrawing installation design, the length can be adjusted to fit the rack space.« Humanized design, can be installed and removed by only one person , which improves the efficiency of the administrator.« To switch the host computer though the hotkey or OSD menu, which can manage up to 1024 computers.« Password security protection, only authorized users can view and manage on-line computer.« Support a variety of brand industrial computer and the sever, eg: EVOC / Lenovo / IBM / DELL / HP/ SUN, ect .« Support various operating system: Window XP, 7 /8 / 10 ,Microsoft, Linux, Unix,etc. Specification:| Model | KVM-1708C | KVM-1716C | KVM-1732C |
Computer connect
| Direct : 8 | Direct : 16 | Direct : 32 |
| Max : 256 | Max : 512 | Max : 1024 |
| Keyboard | 104 Mechanical mute Keyboard |
| Mouse | Touchpad |
| Switch Mode | Hotkey , OSD Menu |
| Switch Scan Time | 1-255 second ( OSD adjustable ) |
| Cable Port ( CAT5 connected network cable is up to 200M ) | Local console | Keyboard / Mouse/ Display
(2*USB +1* HDB-15 female ) |
| Connector port | 8 /16 / 32 * CAT5 (RJ45 port ) |
| Power supply | 1 * 3 pin AC power supply socket |
Panel
| Size | 17'' TFT LED |
| Resolution | 1024 * 1280 @75HZ |
| Max Color | 16.2M |
| Brightness | 300nit |
| Contrast ratio | 700:1 |
| Pixel Pitch | 0.297 x 0.297 mm |
Work environment
| Operating Temp | -10ºC~60ºC |
| Storage Temp | -20ºC~70ºC |
| Humidity | 0%-95%RH |
| Power input | DC12V input , (AC100-240V 47-63Hz, 35W ) optional |
| Cabinet Material | high-strength and Anti-corrosive steel plate |
| Color | Insulated black (optional) |
| For Cabinet | 800-1040mm |
| Net weight | 12KG-16KG |
| Gross Weight | 16kG-21KG |
| Dimension(Lx W x H) | 567.4*480.4*44mm |
| Package (L x W x H) | 708*608*195mm |
| Certificate | CE , FCC , RHOS |
Ordering information :| KVM - 1708C | 1U Rack mount 17" TFT LED KVM switch, W/ 8 RJ45 port , W/ 12V power supply. |
| KVM - 1716C | 1U Rack mount 17" TFT LED KVM switch, W/ 16 RJ45 port , W/12V power supply, |
| KVM - 1732C | 1U Rack mount 17" TFT LED KVM switch, W/ 32 RJ45 port , W/ 12V power supply. |
PONTRON is a global leader in design and manufacturing innovative embedded products and solutions. With over 20 years of experience in the IPC field, PONTRON offers its deep experience in the market with solutions at all stages of embedded development including up-to-date embedded designs, manufacturing capabilities, quality platforms, comprehensive integration services, and global logistics support to provide complete end-to-end solutions.
PONTRON works closely with its customers and connect them with global resources to bring an affordable embedded solution, all while offering a local touch. The result is an effective reduction of total cost of ownership, quicker time-to-market, and a competitive advantage with sustainable computing platform.
Through an extensive portfolio, designed from over 50 ingenious engineers, PONTRON's solutions range from embedded boards, industrial computers, data storage products and OEM/ODM services. Having a state of the art research and development and complete in-house manufacturing facilities, our customers are empowered with embedded custom designs as well as streamlined production process to allow them to focus more on their core competencies.
Whether in the design phase or moving to mass production, PONTRON provides all the reliable resources to get your project off the ground running. Stringent quality control measures are placed at every step of the process to ensure consistency to the highest level of standards

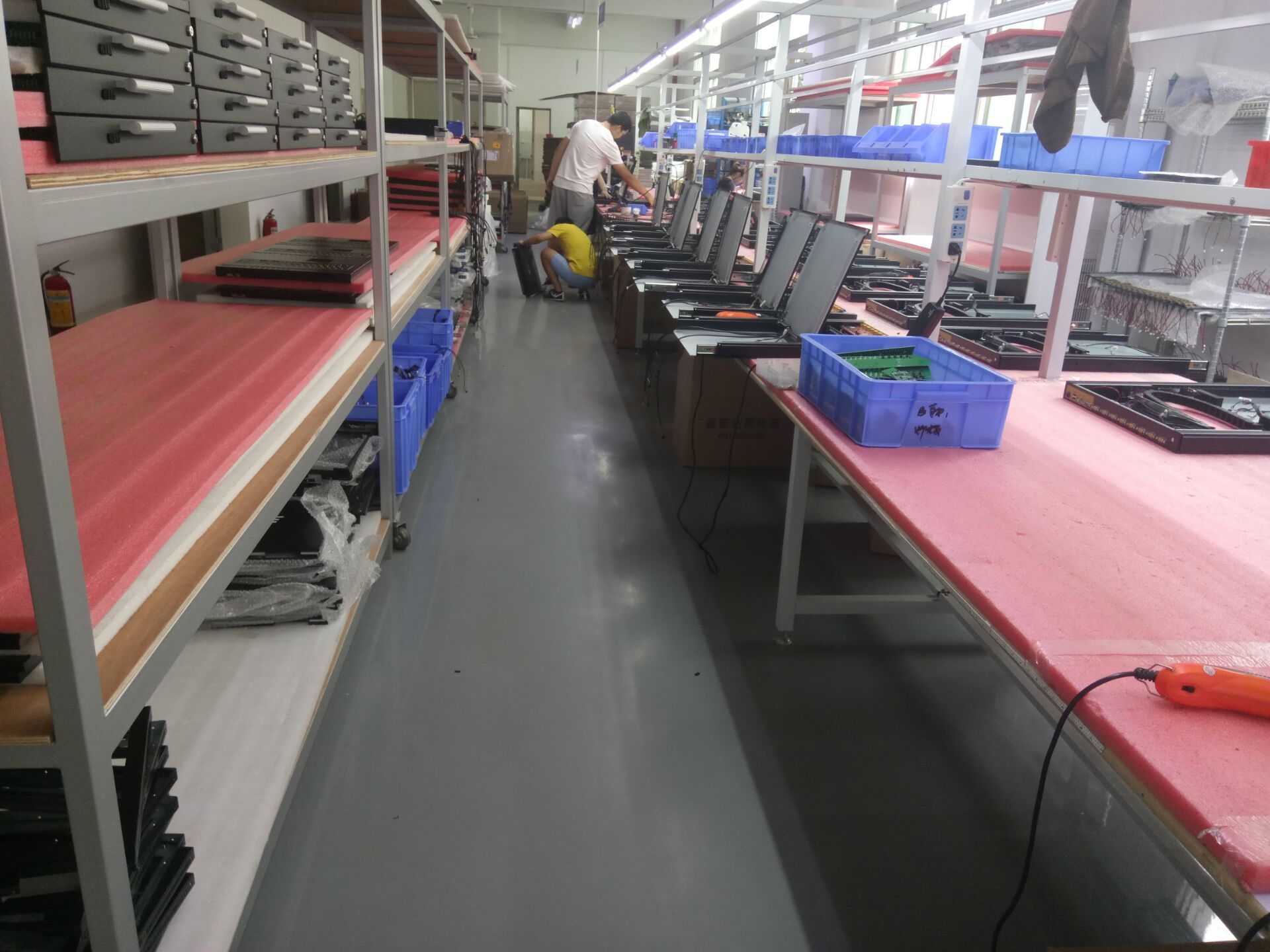

We also extend our service of assembly and logistics to offer a turnkey solution for a wide-range of markets, including Industrial Automation, Digital Signage, Infotainment, Communication, Gaming, Energy, POS, Retail, Self-service, Medical, Aero, Military, Transportation, Defense, and Machine-to-Machine applications. With a 6, 5000 square meters production base in Huizhou and over 30 offices worldwide, PONTRONlooks to be your reliable global solutions provider with a local touch.
