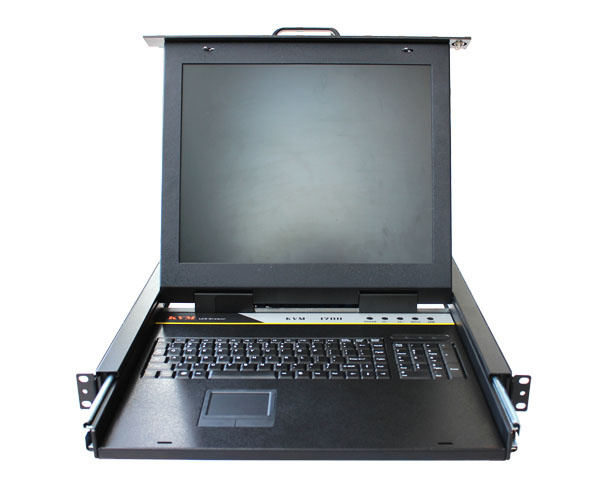

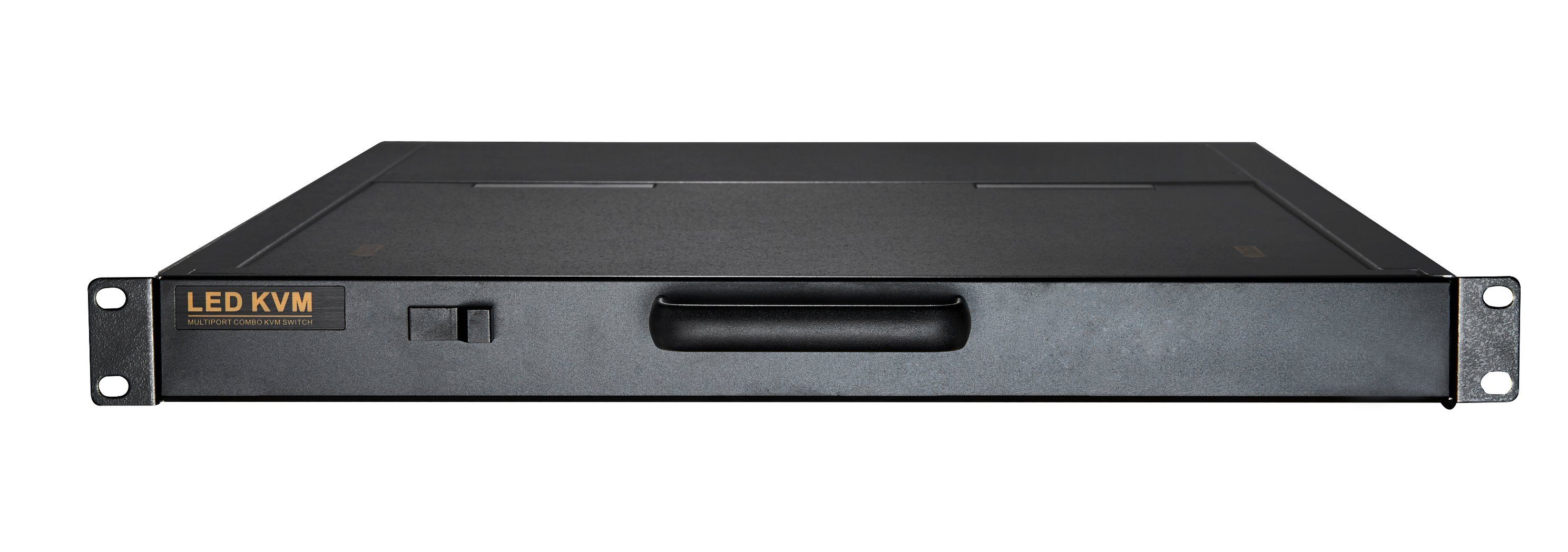

over IP 15 inch 8 port VGA LED KVM switches
| Price: |
US $ 545/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
IP KVM-1508M |
| PC Port Connection: |
HDB15 |
| Switching Mode: |
OSD menu, hotkey and panel button |
| LCD Resolution: |
1280*1024 DDC2B |
| Safety Performance: |
Provide access control list function |
| Dimension ( L X W X H ): |
518mm*480mm*44mm |
| Housing: |
Metal |
| Usage: |
Server |
| Type: |
Wired |
| Information Content: |
Data |
| Certification: |
FCC |
| Condition: |
New |
| Support Network: |
LCD Kvm Drawer |
Product Description
Main feature:> KVM (keyboard, video ,mouse ) access over IP and analogous telephone line (modem needed) .> Full control under any OS, in BIOS mode , during boot, at Blue Screen> 256 bit SSL encryption of all transmitted data and certificate management> Port to connect a user console for direct analogous access to KVM switch> Can be used with most standard KVM> To switch the host computer though the hotkey or OSD menu, which can manage up to 512 computers.> Password security protection, only authorized users can view and manage on-line computer.> Support a variety of brand industrial computer and the server: EVOC/Lenovo/IBM/DELL/HP/SUN, etc> Support various operating system: Microsoft, Linux, Unix, etc. Introduction: · IP-KVM switch can save your Money ,Time, Space, Equipment and Power . IP KVM switch defines a new class of remote KVM switch devices. IP KVM switch combines digital remote KVM access via IP networks with comprehensive and integrated system management. · IP KVM Switch provides convenient, remote KVM access and control via LAN or internet . it captures, digitizes, and compresses videa signal and transmits it with keyboard and mouse signals to and from a remote computer. IP KVM switch provides a non-intrusive solution for remote access and control . Remote access and control software runs on its embedded processors only but not on mission-critical servers, so that there is no interference with server operation or inpact on network performance. Specification:| Model | IP KVM - 1504M | IP KVM - 1508M | IP KVM - 1516M |

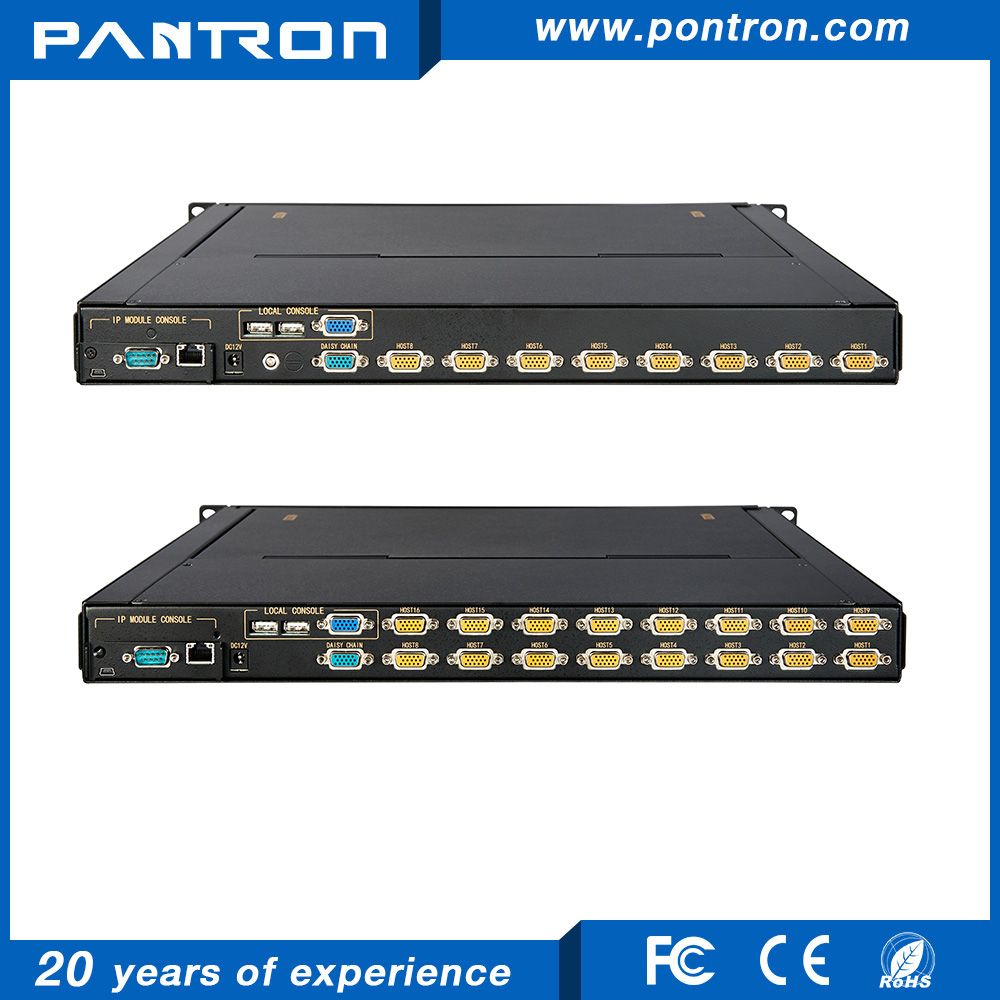

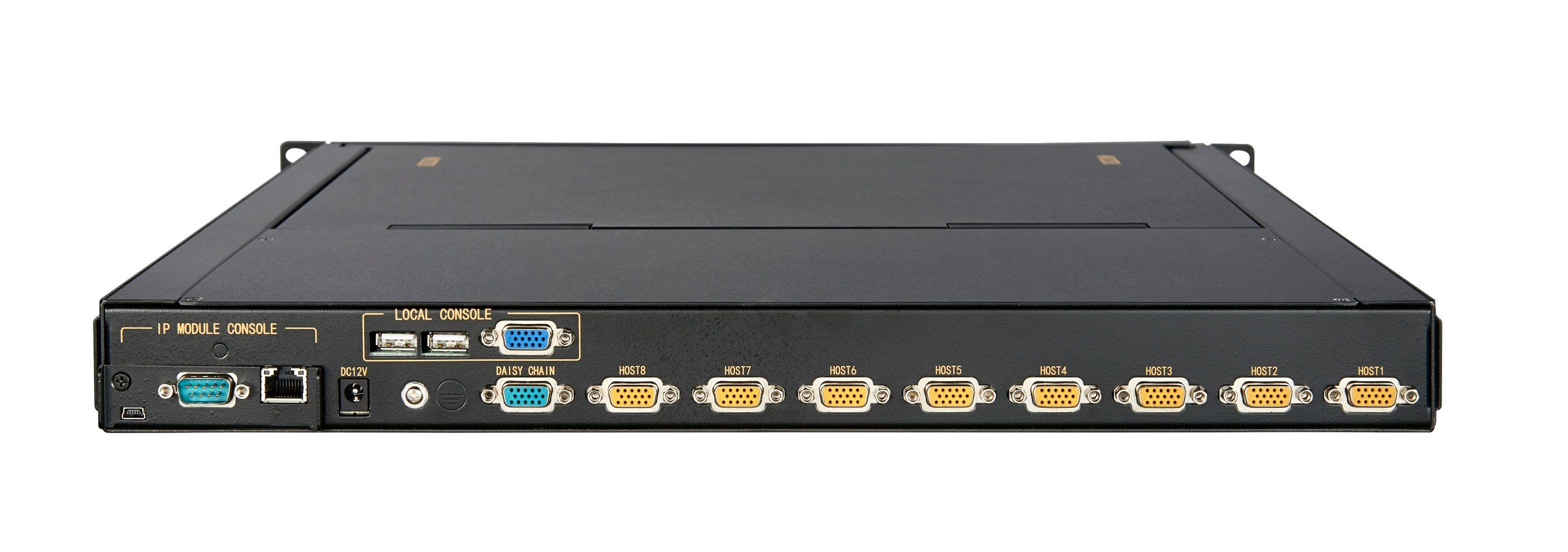

| PC port connection | HDB15 |
| PC port | 4 | 8 | 16 |
| Switching mode | OSD menu, hotkey and panel button |
| LCD control end and max distance with PC | 5m |
| LCD resolution | 1280*1024 DDC2B
|
| Serial connection | Support daisy-chained serial connection(8 levels) and stacking cascade connection (2 levels). |
| LED indicator | Power indicator | 2 |
| Selection indicator | 16 |
| Boost on-line indicator | 16 |
| Num Lock | 1 |
| Caps Lock | 1 |
| Scroll Lock | 1 |
| Safety performance | Provide access control list function |
| OSD menu support multi-languages | 8 languages ( English , France, Germen, Spanish, Italian, Russian, Japaness, Simplified Chinese) |
| Auto-scanning interval | 5-99s |
| Keyboard/mouse simulation | PS/2 or USB |
| Max PC connections | 2048 |
| Housing | Metal |
| Dimension ( L x W x H ) | 518mm*480mm*44mm |
| Weight | 21.5 --26.5 KG |
| For Cabinet | 800-1040mm |
| Storage temperature | -30ºC~70ºC |
| work temperature | -10ºC~60ºC |
| Humidity | 0%-80%RH |
| Certificate | CCC, FCC, CE |
Ordering information: | IP KVM-1504 | 1U Rack mount 15" TFT LED, W/ 4 port KVM switch over IP access, W/ 12V power supply |
| IP KVM-1508 | 1U Rack mount 15" TFT LED, W/ 8 port KVM switch over IP access, W/ 12V power supply |
| IP KVM-1516 | 1U Rack mount 15" TFT LED, W/ 16 port KVM switch over IP access, W/12V power supply |
