Cat5e CAT6 UTP STP Patchcord Cable with RJ45 Snagless Connector

Name: Cat5e CAT6 UTP STP Patchcord Cable with RJ45 Snagless Connector
Brand: all-electronics-online.com
SKU: 790467695
Availability: InStock
Rating: 4.5 (42 reviews)

Price:	US $ 0.5-25Piece
Min Order:	1000Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SL-PC/UTP6
Tensile Strength:	Over 500n

Product Description

UTP cat6 patch cord

1) PE insulation, FR PVC/ROHS PVC jacket
2) Connection: 1:1-EIA/TIA 568B;EIA/TIA 568A
3) CE, ROHS Compliant

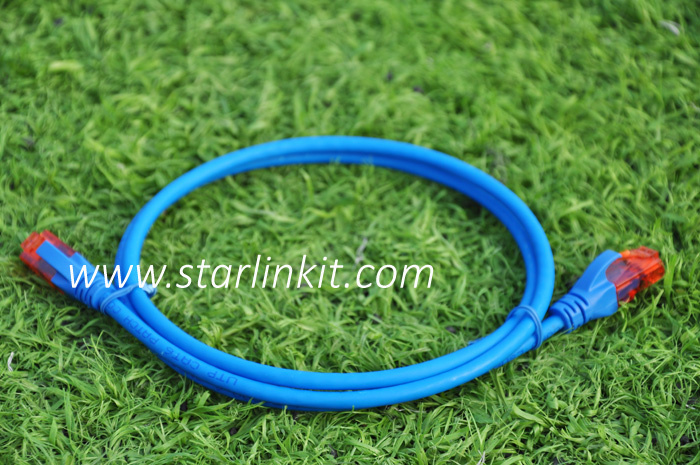

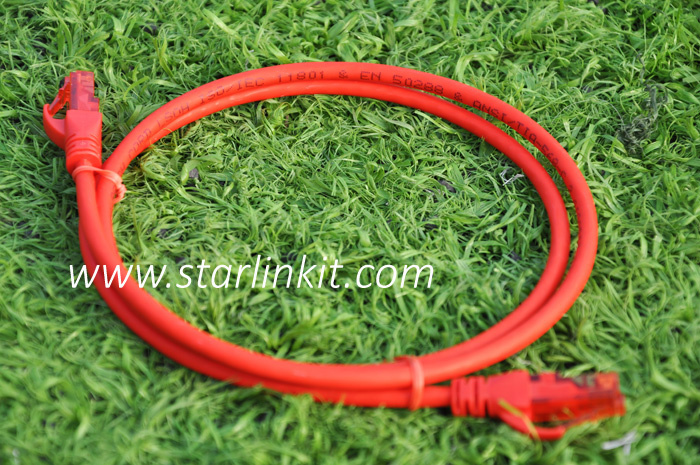

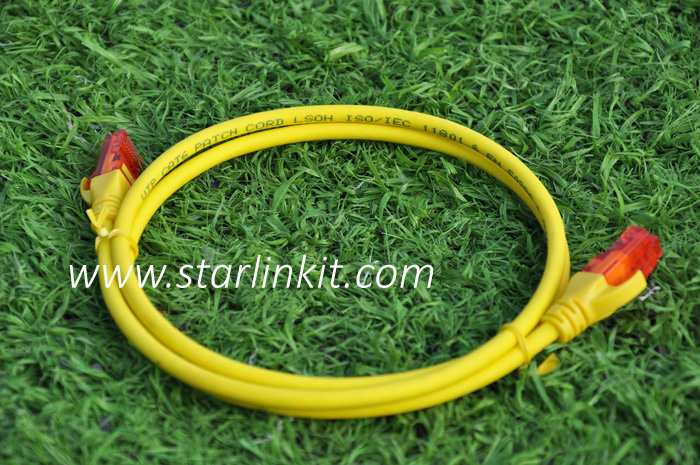

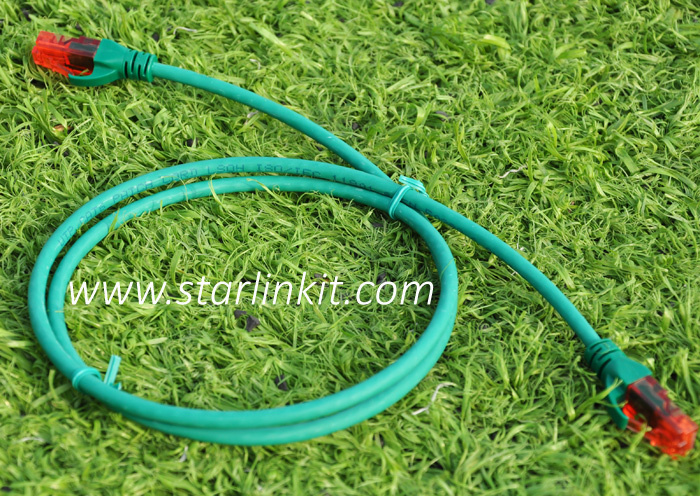

UTP CAT6 Molded Type Patch Cable Available in Various Colors

1. Testing: 100% continuity test and AQL 15% Attenuation, Next, Return loss, Impedance test

2. (UTP) use 23 AWG, stranded (7 x 0.32) bare copper, four pairs, ETL/UL verified, meets Cat6 specifications.
7/0.18mm or 70.20mm BC or TC. with very good module connector. One piece to be packed in a polybag

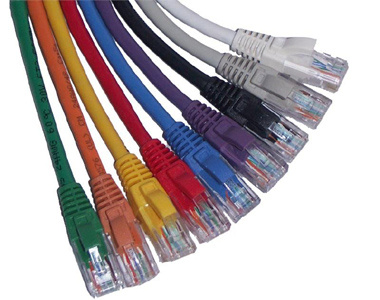

3. Cable colors: red, white, blue, yellow, black, green, gray, orange, purple and pink

Inner Conductor	Number of Pairs	4
	Total Number of Conductors	8
	Conductor Material	BC-Solid Bare Copper
	Wire Gage	23AWG
	Conductor Diam. (ø)mm	Φ0.575±0.03mm
	Elongation	≥15%
Insulation	Insulation Material	HDPE - Polyethylene
	Nom. Thickness	0.233mm
	Insulation Dia.	Φ1.03±0.05mm
	Elongation	≥300%
	Color Cord	Pair 1: White-Blue & Blue; Pair 2: White-Orange & Orange Pair 3: White-Green & Green; Pair 4: White-Brown & Brown
Paired	Length of Lay	<20mm
Spacer	Material	HDPE
Spacer	Diameter	4.5*0.45
Cabling	Order of the Pair	See the Cross Section
Out Sheath	Sheath Material	PVC ( Flame Retardant / RoHS ...)
	Color	Black
	Rip Cord	200D×3
	Nom. Thickness	0.60±0.05mm
	Min. Thickness	0.55mm
	Max. overall Dia.	Φ6.0±0.3mm

Star Link IT Co., Ltd was founded in 2007, one of the leading suppliers of LAN Cables, Fiber Optic Cables, HDMI Cables, USB Cables, Patch Cords & CCTV Cables in China. Over the years, we have been serving customers from over 15 countries & regions, helping them lower their buying costs for copper data cabling as well as fiber optic products.

Star Link IT Co., Ltd leads the Cables & Wires manufacturing services industry in technical expertise and operational experience. Through strategic movement and an established long-term customer base, we have deep insight into the needs of the market, the technical convergence requirements and the competitive challenges that drive the need for continuous reevaluations of the supply chain. These insights drive our strategy of providing end-to-end solutions for networking and optical products.

Over the years, we have brought in advanced product facilities and built up a well-trained, qualified team, which continuously guarantees state-of-the-art quality and first-class service. We are young but dynamic, creative, flexible and continually striving to provide our customers with easy solutions. We pride ourself to partner with a certain number of the cross-regional top 500 companies.

Our goal is to be your very first source for data cabling.
