Cat5e RJ45 Ethernet Patch Cord Cable Compatible with Poe Connections
| Price: |
US $ 4-6Piece |
| Min Order: |
1000Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
SL-5E/6FT |
| Tensile Strength: |
Over 500n |
| Application: |
LAN Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PVC |
| Type: |
Cat 5 |
| Certification: |
RoHS |
| Model: |
Cat5e |
| Brand: |
N/a |
Product Description
Product Description

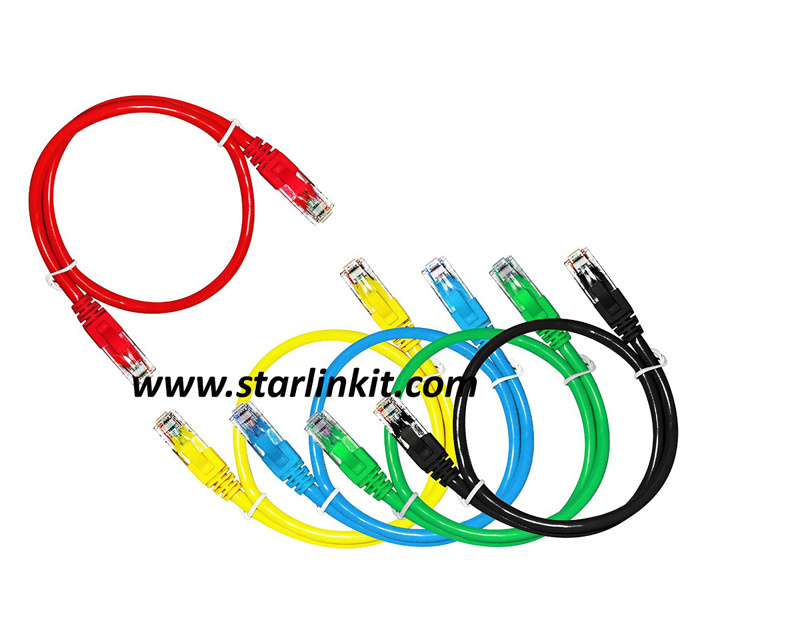

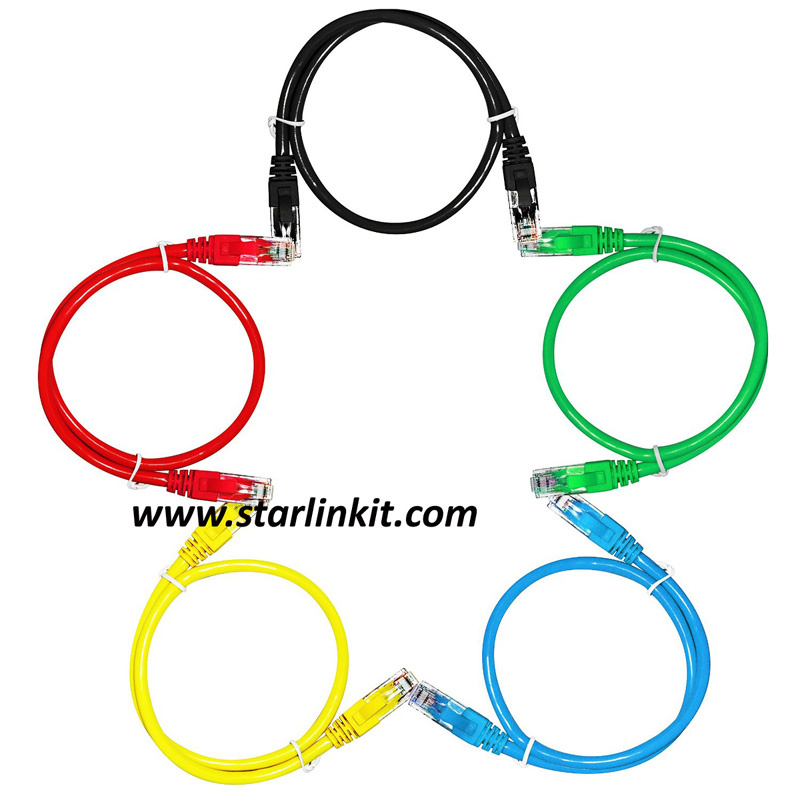

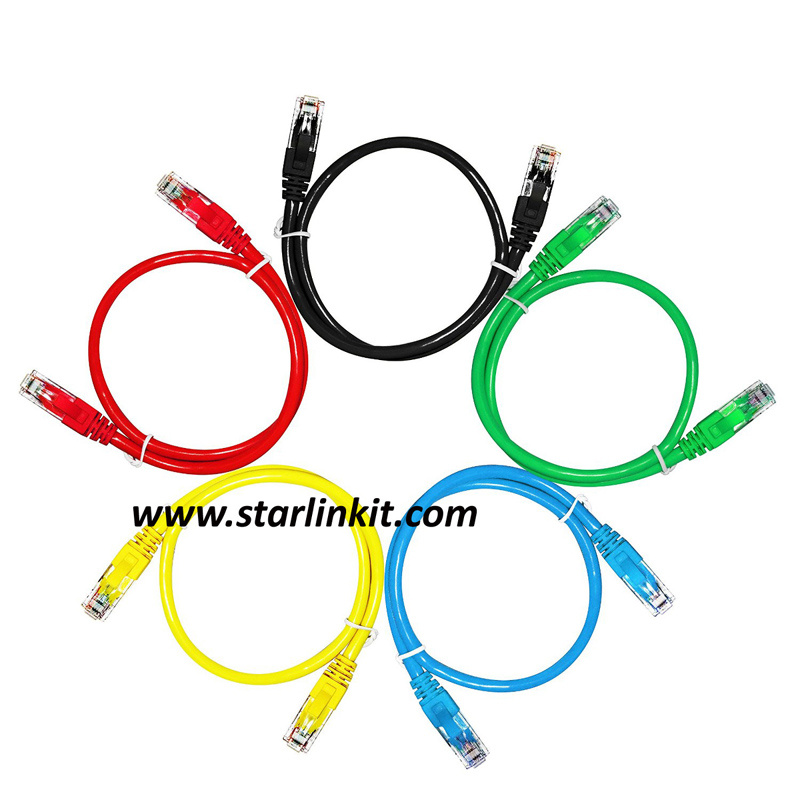

Cat5e Ethernet Patch Cable
Connects a computer to a printer, router, switch box or other network component in a wired Local Area Network (LAN). Share server files, use a network printer, stream audio/video, link PC's through a network switch & more, at data transfer speeds up to 1000 Mbps (1 Gbps). This 24 AWG cable meets stricter TIA/EIA standards than normal Cat5 cables, & handles high-bandwidth needs. 50-micron male RJ45 connectors are built with corrosion-resistant gold-plating for high-quality accuracy. Noise, interference & crosstalk are reduced with its 4 unshielded twisted pairs (4PR UTP) of copper strands & tough, yet flexible PVC jacket. A heavy-duty, snag-less molding makes setup simple & 350 MHz bandwidth allows for high-speed distribution of data, voice & video.
Product Features
- Connects network components in a wired LAN at data transmission speeds up to 1 Gbps
- 24 AWG cable exceeds TIA/EIA standards & 350 MHz bandwidth

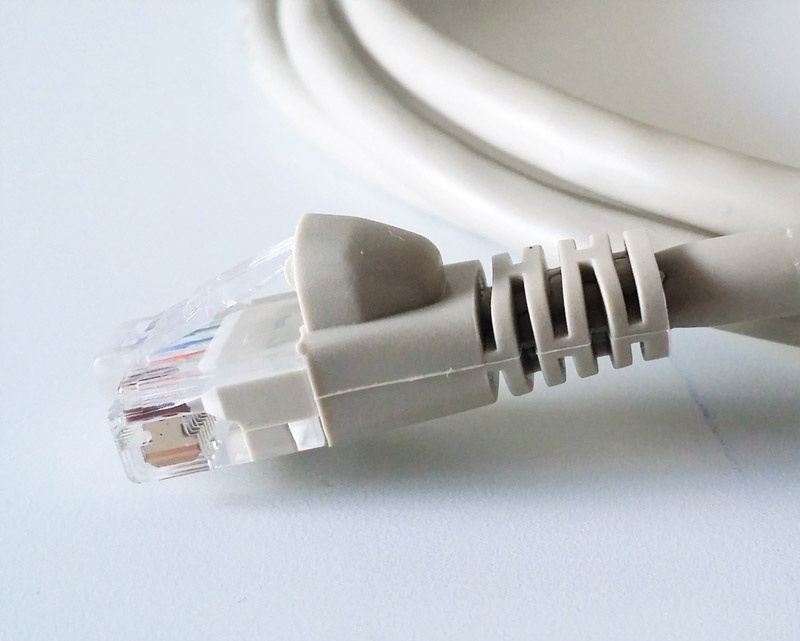

- 50-micron male RJ45 connectors per end, with corrosion-resistant gold-plating
- 4PR UTP copper strands for minimal noise, interference & crosstalk
- Tough, yet flexible PVC jacket & heavy-duty, snag-less mold
Compatibility
- Devices with RJ45 jacks, including computers & peripherals like routers, switch boxes, network printers & network attached storage devices
- Cat5 is a computer networking standard & works with 10/100 Base-T networks
Installation
Plug-&-play: Ready to use, once each end is connected to a respective port on a compatible device
Specification
- 50-micron male RJ45 connectors on each end, which are durably built with corrosion-resistant gold-plating, for high-quality data transfer accuracy. Category 5 is a computer networking standard, making it compatible with most network components.
- Minimal noise and interference, due to its 4-pair of unshielded twisted copper strands and tough, yet flexible PVC jacket. A heavy duty, snag-less molding makes installation and cable handling effortless.
- Compatible with 10/100 Base-T networks and feature enhanced 350 MHz bandwidth for distributing data, voice, and video at high-speeds. Includes adjustable & reusable Velcro cable strap for easy organization & storage.
| Electronical Performance guaranteed to meet or exceed NSI/TIA-568B Category 5e and ISO/EIC Specifications. |
| Independently tested and verified intertek(ETL) |
| Ideal for data center architectural requirements. |
| Stranded cable for maximum flexibility. |
| Availiable with different plug mold. |

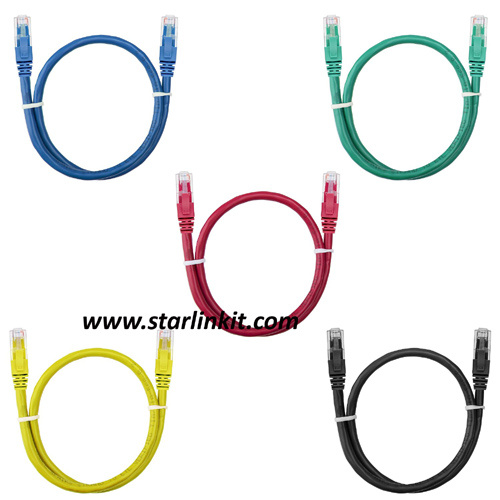

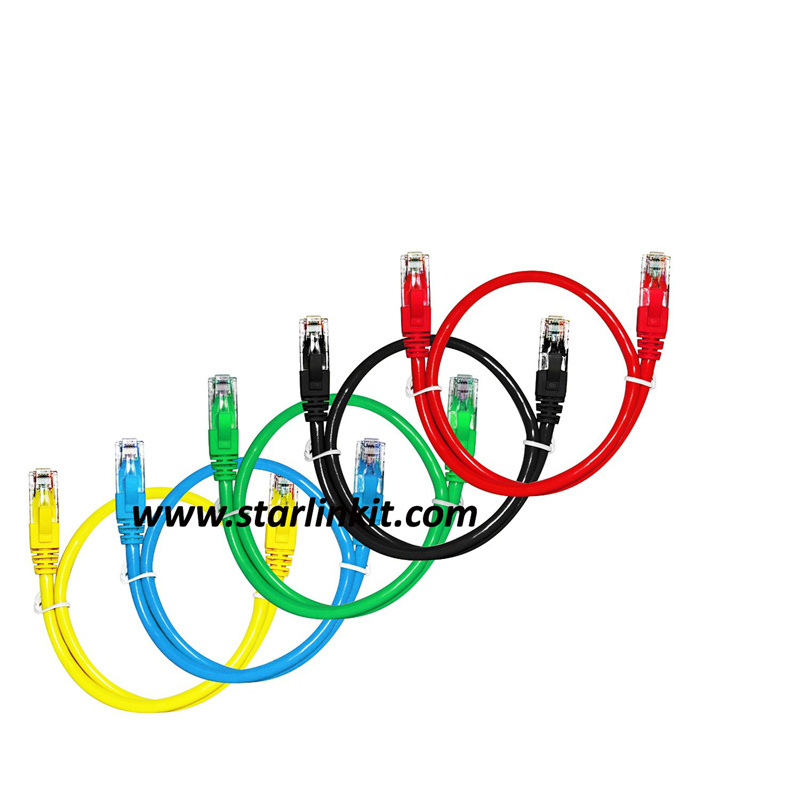

| Availiable with different color of cable. |
| Availiable with different length. |
Star Link IT Co., Ltd was founded in 2007, one of the leading suppliers of LAN Cables, Fiber Optic Cables, HDMI Cables, USB Cables, Patch Cords & CCTV Cables in China. Over the years, we have been serving customers from over 15 countries & regions, helping them lower their buying costs for copper data cabling as well as fiber optic products.
Star Link IT Co., Ltd leads the Cables & Wires manufacturing services industry in technical expertise and operational experience. Through strategic movement and an established long-term customer base, we have deep insight into the needs of the market, the technical convergence requirements and the competitive challenges that drive the need for continuous reevaluations of the supply chain. These insights drive our strategy of providing end-to-end solutions for networking and optical products.
Over the years, we have brought in advanced product facilities and built up a well-trained, qualified team, which continuously guarantees state-of-the-art quality and first-class service. We are young but dynamic, creative, flexible and continually striving to provide our customers with easy solutions. We pride ourself to partner with a certain number of the cross-regional top 500 companies.
Our goal is to be your very first source for data cabling.
