| Prod Model: |
LK-F5PCCB001 |
| Application: |
Submarine Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Certification: |
UL |
| Cover Material: |
PVC or LSZH |
| Type: |
Cat5e |
| Model: |
Cat5e UTP |
| Brand: |
Lulink or OEM |
Product Description

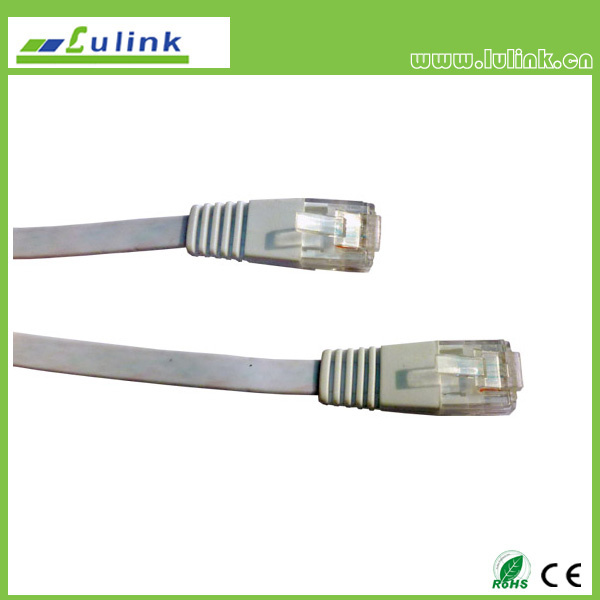

Item No. : LK-F5PCCB001Product Name: CAT5E UTP patch cable Specification: cat5e, UTP, 4PX24AWG+PVC+Foil+RJ45X2PCS, gold plated pins, pass fluke test, different length for choosing.

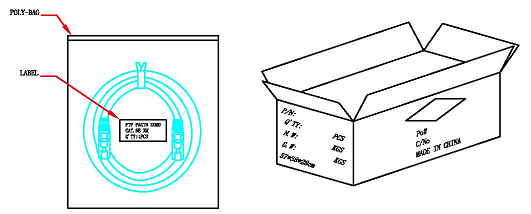

Packing
| ITEM | | CAT6 FTP 7/0.20BC flat patch cable |
| No. of Cord. | | 4 Pair |
| Conductor | Material | Bare Copper Wire Stranded |
| | Construction | 30AWG; 7 / 0.10 ± 0.008 mm |
| Insulation | Material | Polyethylene |
| | Thickness | 0.18±0.02 mm |
| | Diameter | 0.95 ± 0.05 mm |
| | Material | PVC |
| Jacket | Thickness | 0.50 mm(Min. Thickness: 0.48mm) |
| | Diameter | 1.8*6.0mm, |
| | Color | optional |
| | Length | optional |
| Marking | optional | |
| Shielding1 | Material | Mylar Spirally Wrapped |
| | Coverage | 100% coverage with 25% overlapping |
| Drain Wire | Material | Aluminum Magnesium metal |
| | Construction | 1 / 0.40 ± 0.008 mm or 7/0.12± 0.008 mm |
| ELECTRICAL PROPERTIES | |
| Conductor Resistance | Max. 93.8 ohms/km at 20ºC |
| Insulation Resistance | Min. 100 mega ohms-km at 20ºC |
| Dielectric Test | 500V AC /1 min ; No Breakdown |
| Impedance | 100 ohms ± 15% |
| Temperature Rating | 60ºC |
| Voltage Rating | 30V |
About Lulink companyWe are an export organization specialized in developing, designing, producing network intelligent wire and telecommunication equipments, the products range consists of main categories and metal sheeting. Offered products meet with international standards, for this major company has great strength ability in this field specially for E-Commerce.As we are a professional manufacturer of copper system, fiber optic system, cable assembly system, smart home system, etc.Our main items include as below:
--Copper System: lan cable, patch cord, faceplate, keystone jack, patch panel, plug, network cabinet, coaxial cable, etc.
--Fiber Optic System: fiber optic cable, fiber optic patch cord, PLC splitter, pigtail, optical cross distribution cabinet, ODF, splice closure, optical tool kit, optical adapter panel, etc.
--Cable Assembly System: USB cable, HDMI cable, VGA cable, AV cable, sata cable, etc.
--Smart Home System: usb module, hdmi module, vga module, av module, wall socket, etc.
Our Services
1. Free samples
2. OEM & ODM are both available
3. Customer's design & logo are avaliable
4. Professional service and prompt reply/action within 24 hours
5. Excellent after-sale service
If you have any purchasing plan or any inquiry , don't hesitate to contact me, tks!
