| Prod Model: |
LK-U6CB231 |
| Conductor: |
Tc/Bc/CCC/CCA/CCS |
| Color: |
Optional |
| Shield: |
UTP/FTP/SFTP |
| Service: |
OEM, ODM |
| Insulation: |
Solid PE/PVC |
| Conductor Material/: |
Copper |
| Delivery Detail: |
7 Days |
| Package: |
Inner Bag, Box and Carton Package |
| Shipping Terms: |
DHL/FedEx/EMS/UPS/TNT Ect. |
| Place Of Origin: |
Guangdong, China |
| Application: |
Submarine Cable |
| Conductor Material: |
Copper |
| Cover Material: |
PE |
| Type: |
Cat 6 |
| Certification: |
VDE |
| Model: |
Lk-U6CB231 |
| Brand: |
Lulink |
Product Description

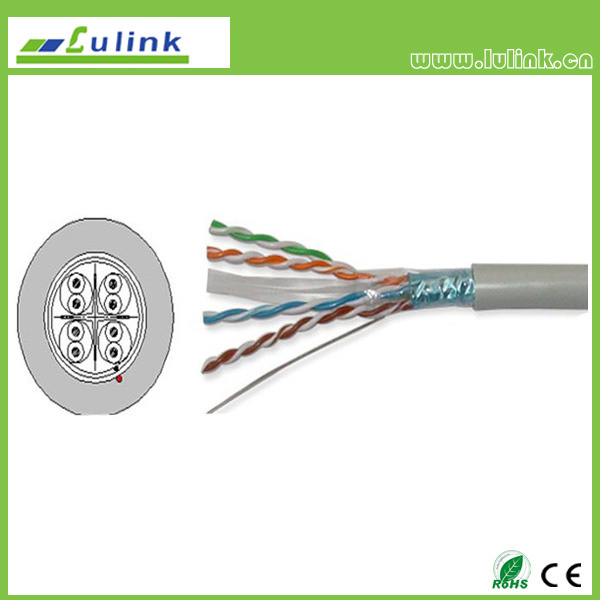

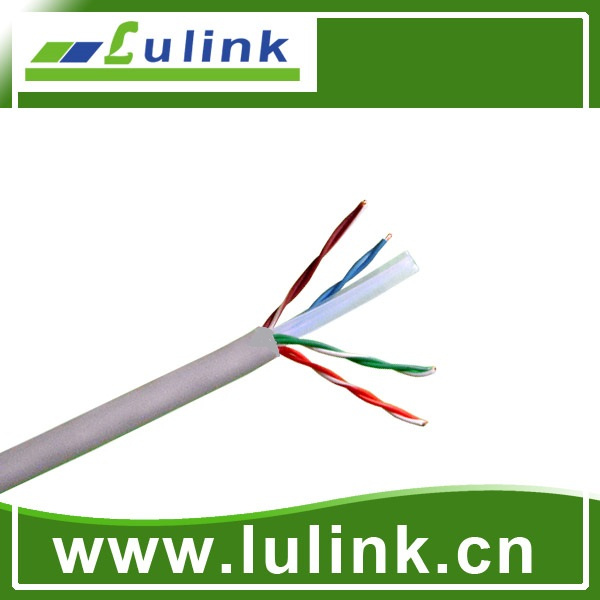

Lulink - Bare Copper Cat6 Lan Cable Wiring Spool
Detailed information:
UTP Cat6 network cable
1.Fast delivery
2.CE&FLUKE&UL&ISO&ROHS verified
3.Working 10-15 yrs
4.Certification,FLUKE/CE/ISO/ROHS etc.
5. Connect distance,100-180m working
6.UTP CAT6 cable pass Fluke test
7.BARE COPPER, 0.51mm , UTPCAT5e, 100m / 0.57mm , UTPCAT6 , 100m.
8.CCAU/CCAG(40%copper), 0.51mm , UTPCAT5e, 80m / 0.57mm , UTPCAT6 , 80m.
UTP/FTP/STP/SFTP are available.
9.Color according to your requirements.
10.Both OEM and ODM are available.

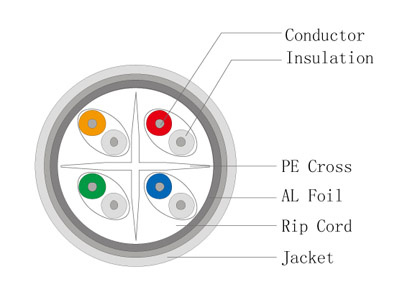

PRODUCT DESCRIPTION1. 4 pairs 100 Cat.6 cable, adopt 23AWG bare copper to be the center conduction, PE
to be the dielectric and fireproof material to be the jacket.
2. This cable is gray and conform to the standards like ISO/IEC, TIA/EIA and EN.
3. All the electrical characteristics are even exceed the lastest Cat.6 standards of
ISO/IEC. The "+" typer inner frame in the center ensures NEXT capacity and
reasonable minimum bend radius.
4. LSZH: means "Low somke zero halogen", which is the symbol of environmental
protection.ELECTRICAL CHARACTERISTICS1. Impedance: 100±15
2. Return resisitance: 9.4/100m
3. Unbalance resisitance: ≤5%
4. Static electric capacity: 51pF/m 1KHz
5. Unbalance capacity: 73.2pF/100m
6. Roted communicate rate: 65%PHYSICAL CHARACTERISTICS1. Copper diameter: 23AWG
2. Impedance: 100±15
3. Outer diameter: 6.1±0.2mm
4. Minimum bend radius: 6-8×OD
5. Maximum pulling tension: ≤10
6. Jacket material: PVC or LSZH
7. Roted temperature: -20~60ºC
8. Packing: Carton or Axles APPLICATION1. 10/100/1000Mbps Ethernet;
2. 100VG-AnyLAN;
3. Token ring;
4. ATM155/ATM622 etc;STANDARD1. ISO/IEC-11801 (2nd edition)
2. EN (2nd edition)
3. TIA/EIA-568B.2-1
Product Application:Structured cabling data transmission cables: Transmit digital, voice, data and video signals; meet high-end demand, and in particular, fit for the application of all E-level links and CAT 6 cables, including ISDN, 10 Mbit/s Ethernet, 100 Mbit/s Fast Ethernet, 1 Gbit/s Ethernet, 4/16 Mbit/s Token Ring, 125 Mbit/s TP-PMD/TP-DDI, and 155 Mbit/s ATMThe most advanced equipments for both producing and testing, which imported from Europe and America.
The main export markets:
North America, Asia ,Western Europe , Australia , Africa ,South America ,Middle East
Our service:
1)Reply your enquiry within 24 working hours;
2)Experienced staffs answer all your questions in fluent English;
3)Customized Design is available,OEM&ODM are welcomed;
4)Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs;
5)Special discount and protection of sales area will be provided to our distributor.
Shipping:
BY DHL, UPS, FedEx, TNT, EMS etc...
For mass order delivery, can be optional with terms of Exwork, FOB, CNF, CIF by air or by sea based on the buyer forwarder.
Payment:
Paypal, Escrow for samples, small qty order or urgent orders at the buyer convenience .TT, L/C, Western Union for mass orders.
30% as Deposit, 70% Balance paid before delivery
Packing:1) Packing Lengths: 305m/roll
Other lengths available according to client's request.
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.
Lulink Electronics Technology Co. Ltd
Established in 2005 with headquarter and R&D managing department based in Guangzhou.
Lulink is an export organization specialized in developing,designing,producing network intellgent wire and telecommunication equipments,the products range consists of main categories and metal sheeting,Lulink is supported by a strong R&D team which has more than three years experience in the field of technology and integrating brilliant designers,technicians,support groups,sales and marketing organizations.We offers and accepts OEM/ODM service to customers.We have evperienced employees,respectively specialized in management,all the workers received the professional training with some years experience for their activities.
Our Main products:

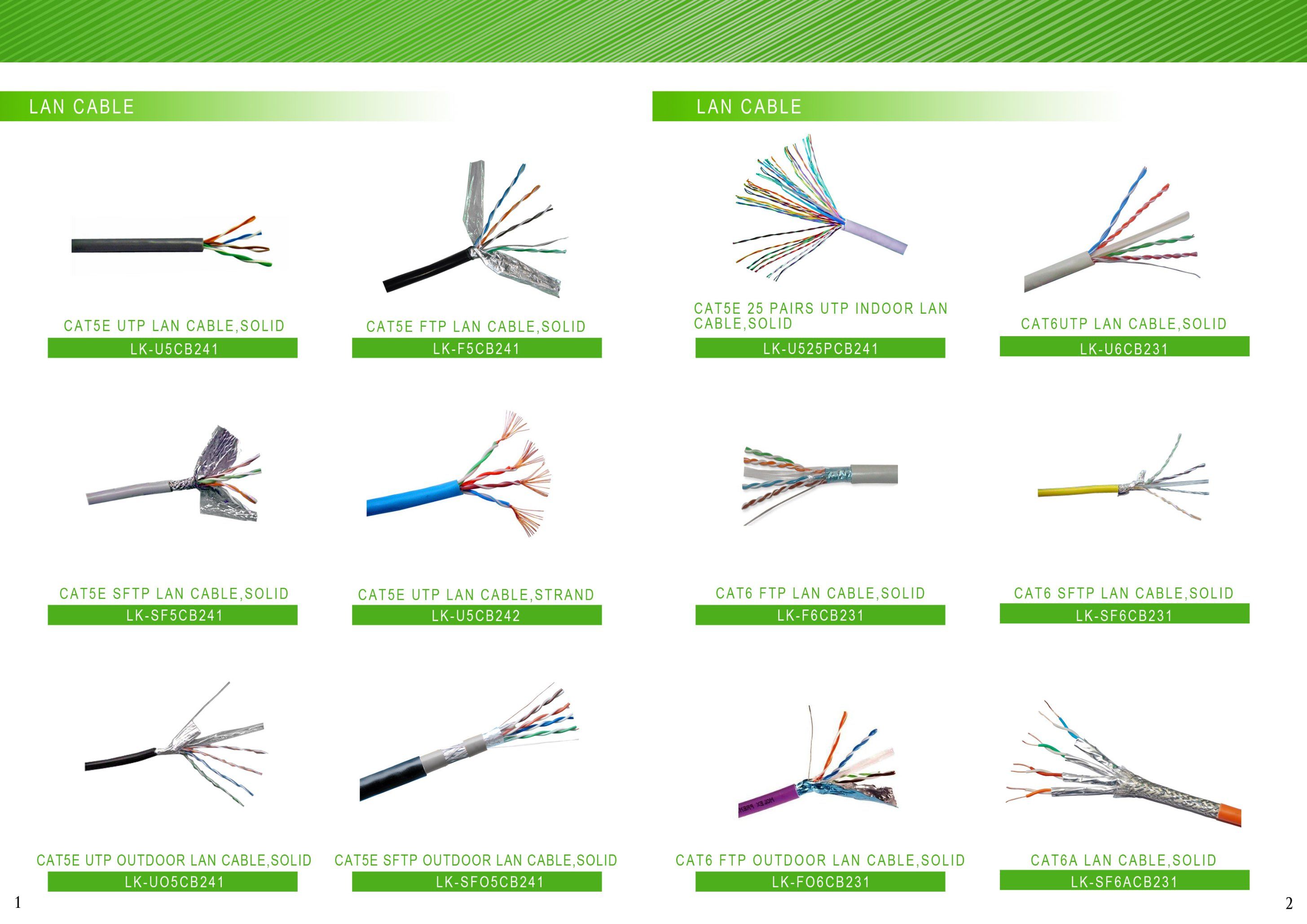

Copper System:LAN cables, Adaptor, Connector and Spliter, Cabinet, PATCH CORD, TOOLS, Coaxial cables
