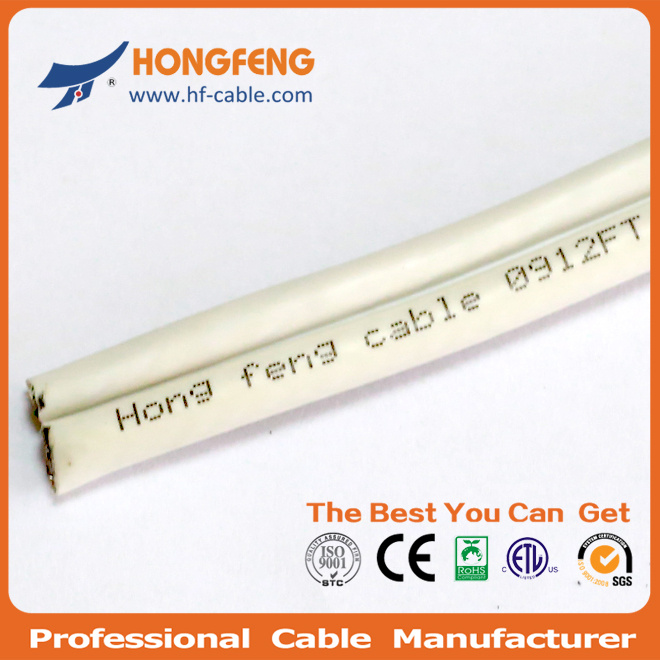

CATV CCTV Double/Dual RG6 Coaxial Cable

Name: CATV CCTV Double/Dual RG6 Coaxial Cable
Brand: all-electronics-online.com
SKU: 745722845
Availability: InStock
Rating: 4.7 (80 reviews)

Price:	US $ 0.115/Meter
Trade Terms:	FOB,CIF,EXW
Min Order:	10000/Meter
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG6 Siamese
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dual RG6:	RG6 Dual
Coaxial Cable RG6 Dual:	RG6 Dual Coaxial Cable
H.S. Code:	85442000
Double RG6 Cable:	RG6 Double Cable
CCTV RG6 Cable Dual:	CATV Cable RG6 Dual
Shielding:	Al.Foil/Pet + Braiding
Jacket:	PVC or PE Shealth
Delivery Time:	15-25 Days
Starting Port:	Shanghai or Ningbo
Application:	RF Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	ETL
Type:	Coaxial
Model:	Coaxial
Brand:	Hf/OEM

Product Description

CATV CCTV Coaxial Cable Double/Dual RG6 cable

RG6 DoubleConductor: 1.02± 0.002mm CCS24%
Dielectric: 4.57± 0.1mm FPE
Shield 1#: 16mm Al. Foil Bonded
Shield 2#: 16*7*0.12mm Al. Wire-70± 2% (41mm)
Jacket: 6.93± 0.1mm PVC White FR
Package: 200M/Wooden drum/Ctn.
N. W.: 18 KG/Ctn.
G. W.: 19 KG/Ctn.

Electrical Characteristics
Sparker Test: 4000VAC
Impedance: 75+3 Ohm
Capacitance: 54+3pF/m
Velocity of Propagation: 85%
Return Loss: 20dB min (5-2300MHz)

Attenuation	[@68°F.(20°C.)]
	RG6
Frequency(Mhz)	Maximum (dB/100ft.)	Maximum (dB/100m)
5	0.58	1.9
55/Channel2	1.6	5.25
83/Channel6	1.95	6.4
187/Channel9	2.85	9.35
211/Channel13	3.05	10
250	3.3	10.82
300	3.55	11.64
350	3.85	12.63
400	4.15	13.61
450	4.4	14.43
500	4.66	15.09
550	4.9	16.08
600	5.1	16.73
750	5.65	18.54
865	6.1	20.01
1000	6.55	21.49
1450	7.98	26.16
1800	8.46	27.73
2100	9.5	31.15
2250	10	34.03

Our company, hongfeng industry, a professional cable manufacturer, is located in hangzhou, a city which is not only famous for its fabulous scenery, and also known for the center of the manufacture industry. And also we get close to the Shanghai port and ningbo port. This makes our company an unique position offering and delivering the cable overseas. We are dediacated to providing high quality coaxial cable and LAN twisted pair cable.

We offer whole range of coaxial cable and LAN twisted pair cable. Coaxial cable includes RG6 series, RG58series, RG59series, RG7series, RG11series, QR series, 500 series. And network cable CAT7 series, CAT 6 series, CAT 5 series.

We provide consistent high quality products at competitive prices. We have an products controlling teams, which monitors the manufacturing process and checks all the products before shipment. Our professional customer's service are ready to provide you with all necessary consultations and solve any problems related to our products.
