CATV/CCTV Quad Shield Coaxial Cable (RG11)

Name: CATV/CCTV Quad Shield Coaxial Cable (RG11)
Brand: all-electronics-online.com
SKU: 619764872
Availability: InStock
Rating: 4.3 (107 reviews)

Price:	US $ 0.01-1.0/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG11
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Conductor:	Bc/CCS
Insulation:	Foam PE
Shield:	Quad Shield
Jacket:	PVC/PE
Application:	RF Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	RoHS
Type:	Coaxial
Wire Core Material:	CCS

Product Description

75 Ohm CATV/CCTV Quad Shield Coaxial Cable RG11

This 75 Ohm RG11 quad shield CCTV coaxial cable can be fixed with various connectors,such as F,BNC,TNC connectors.These versatile cable assemblies with various lengths have been widely applied to existing and next generation TV network and security monitoring and control systems.

Features

1).75 Ohm data signal transmission;
2).The inner conductor could be Copper Clad Steel or Bare Copper;
3).The insulation is foam PE;
4).Customized cable color , winding and connector, meet your different requirements;
5).RoHS compliant;

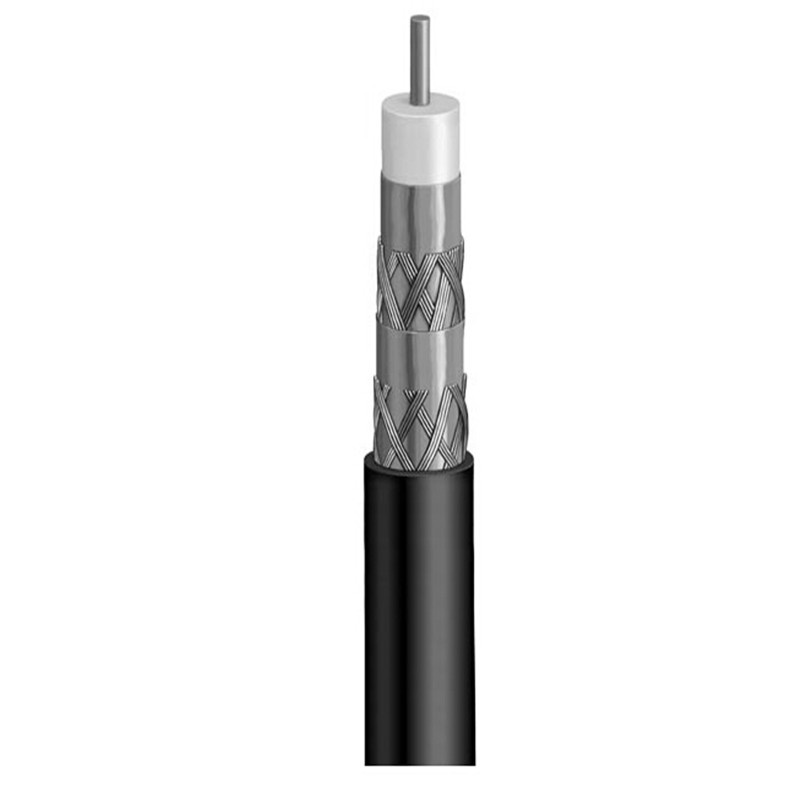

RG11 Quad Shield
Construction
Item	Material		Diameter(mm)
Inner Conductor	Bare Copper / Copper Clad Steel		1.63
Dielectric	Foam PE		7.11
First Shield	Boned Aluminum Foil		7.30
Seond Shield	AL-Mg Wire Braid		8.00
Third Shield	Aluminum Foil		8.15
Fourth Shield	AL-Mg Wire Braid		8.70
Jacket	PVC/ PE		10.16

Electrical Characteristics		Attenuation @20ºC (dB/100M)
Impedance(Ω)	75	@300MHz	7.38
Velocity of Propagation(%)	84.0	@400MHz	8.53
Return Loss(dB)	≥20	@500MHz	9.51
Capacitance	54	@600MHz	10.43
Shielding Effectiveness(dB)	≥90	@865MHz	13.05
Operating Temperature(ºC)	-25 to +70	@1000MHz	14.27

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
