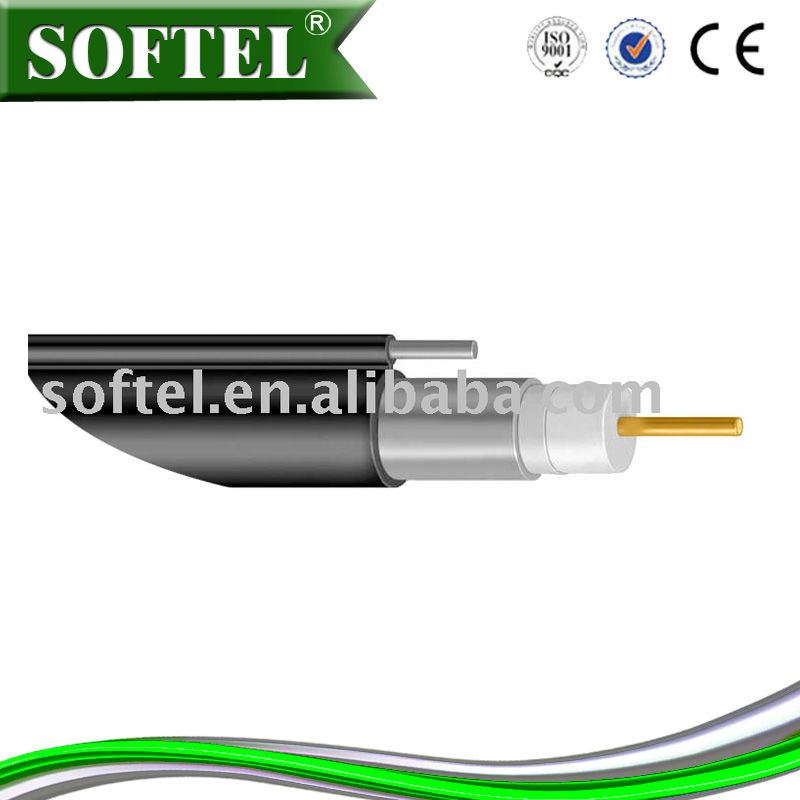

CATV Qr500/540 Trunk Coaxial Cable with Messenger

Name: CATV Qr500/540 Trunk Coaxial Cable with Messenger
Brand: all-electronics-online.com
SKU: 618484782
Availability: InStock
Rating: 4.5 (58 reviews)

Price:	US $ 0.58/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	QR540
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	Qr540 Coaxial Cable
Nominal Impedance:	75+/-3ohm
Nominal Velocity Of Propagation:	88%
Nominal Capacitance:	50+/-3pf/M
Sparker Test:	4000avc
4000:	>20db
Out Sheath:	PE
Messenger:	7*1.6mm
Package:	1km/Roll
Export Packing:	Wooden Drum
Application:	RF Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PE
Type:	Cat 6
Certification:	UL
Wire Core Material:	CCS
Model:	Qr540
Brand:	Softel

Product Description

Description:

1. Center conductor: Φ 0.124(3.15mm) solid copper or CCA

2. Dielectric: Φ 0.514(13.05mm)foam PE

3. Shield: Aluminum tube, thickness 0.540(13.72mm)

4. Jacket: Φ 0.610 (15.49mm) (LDPE) thickness: 0.0357(0.89mm)

5. Jelly/ADP: Per customer special requirement

Mechanical characteristic

1. Minimum Bend Radius: 4.0(10.2cm)

2. Maximum pulling tension=220Ibs. (100kgf)

Electrical performance

1. Impedance: 75+/-2 Ohm

2. Capacitance: 50+3pF/m

3. Velocity of Propagation: 88%

4. Nominal DC loop resistance@ 68° F: 4.27 Ohms/1000 ft. (14.01 Ohms/km)

ITEM		540	540JCA	540M
Center conductor		3.15mm BC/CCA	3.15mm BC/CCA	3.15mm BC/CCA
Dielectric		13.03mm Foam PE	13.03mm Foam PE	13.03mm Foam PE
Outer conductor	Material	13.72mm Al	13.72mm Al	13.72mm Al
	Nom. Thick	0.25mm/0.6mm	0.25mm/0.6mm	0.25mm/0.6mm
Jacket	Material	15.49mm PE	15.49mm PE	15.49mm PE
	Nom. Thick	0.89mm	0.89mm	0.89mm
Messenger		/	/	2.77mm/7*1.6mm

Hangzhou Softel Optic Co., Ltd. (Brand: SOFTEL) was established in 2006, which Located in the HangZhou Hi-Tech Development Zone. Taking advantage of the modern broadcast and optic fiber communication technology, we are specializing in R&D of CATV system equipment, and leading manufacturer of HFC broadband Optic Transmission equipment with strong R&D capability in this field.

We have more than 100 staff in which 10% of senior technicians. It has more than 1, 000 square meters standards production assembling line, we have strict QC procedure, each unit of our products will go through 3 layer QC procedure, material checking before production, stability and performance testing after production, packing checking before delivery.

Currently, we supplying to numerous agents, integrated dealers and equipment producers all over the world, most of our products move to South America, Russia and north European countries.

Through keen international business competition in good faith, all of our staffs feel big accomplishment & work under heavy responsibility. In addition, we are much proud of providing our invaluable customers with our high quality, high reliability, high efficiency, competitive products.
