Name: RF Trunk Pin Connector for 500/540 Cable
Brand: all-electronics-online.com
SKU: 689176122
Availability: InStock
Rating: 4.9 (137 reviews)

Price:	US $ 1.6-1.65/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SFT199
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Impedance:	75ohm
Frequency Range:	DC~1GHz
Applicable Standard:	IEC 60169-24
Item Application:	Trunk Cable
Inner Conductor:	Brass, Silver Plating
Shell:	Aluminium
Temp.Range:	-25~+60°c
MOQ:	500 Pieces
Delivery:	About 7 Days
Sample:	Free
Type:	Generally Coaxial Connector
Coupling Mechanism:	Threaded Connection

Product Description

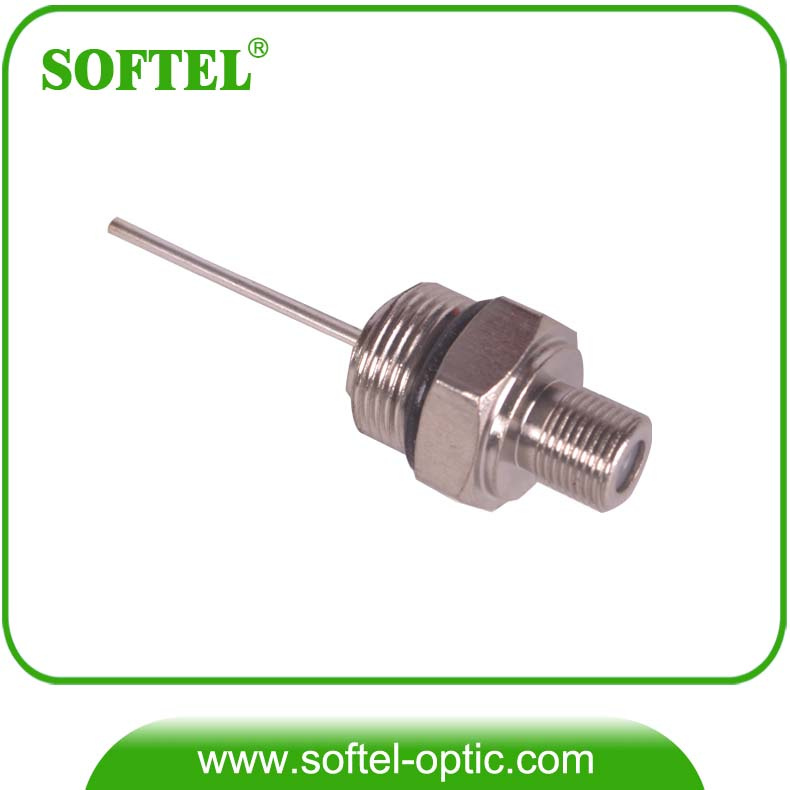

Aluminium Coaxial Cable P3500, QR500 Trunk Connector

Characteristic:

1. Hardline cable to port entry connectors provide solid interface while preserving impedance characteristics
2. Wide bandwidth for use in broadband systems
3. Center pin "Funnel Guide" reduces installation time and connector mating guesswork
4. Standard pin length alcommodates all amplifer and multitap mating requirements
5. Notched center conductor cutting guide assures accurate cable center conductor length
6. High return loss for excellent digital signal performance
7. Solid construction and intergral sleeve provides optimum RG shielding
8. High retention center conductor seizure mechanism
9. Superior power capability provides a minium of 20 Amps current capacity on all connectors and adapters
10. No-twist center conductor seizing mechanism eliminates radial stress, ensuring consistent application without cable damage
11. O-ring sealed, watertight

Summary:

Adapters are essential components to configure equipment for aerial and underground applications, and are used to change the direction of the cable where space is limited or where tight bends are required. Our adapters allow room to economize the enclosures installed on municipal and customer properties. They eliminate the need for excess splicing in system rebuilds and reduce the number of cables damaged through tight bending radiuses and other installation challenges.

Connector typeconnetc	500 Pin connector	Vibration	100m/s2 (10~500Hz)
Frequency Range	DC~1GHz	Durability(mating)	≥500(cycles)
Impedance	75Ω	Temp.range	-25~+60°C
Insertion Loss	< 0.3dB	Material	Shell : Aluminium
Power Capacity	> 20 A		Inner conductor: Brass, silver plating
Conductor resistance	Internal ≤ 10 mΩ		Inner conductor: Brass, silver plating
Conductor resistance	External ≤ 5 mΩ		Insulator: Plastic
Insulating resistance	≥ 1000 MΩ @DC500V		O Ring: Silicon Rubber
Withstanding voltage	170V max	Applicable standard	IEC 60169-24
