| Prod Model: |
3 in 1 ONU |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
ONU 1g |
| Uplink Pon: |
1 Ge Port |
| Downlink Pon: |
4*10/100Mbps |
| Optic Connector: |
Sc/Upc |
| Downlink Of Pots: |
2xrj11 |
| Downlink Of CATV: |
Scte F Type |
| Power Supply: |
12VDC |
| Power Consumption: |
<10W |
| Operating Temp: |
-5 - +55c |
| Net Weight: |
0.62kg |
| Wiring Devices: |
Integrated Wiring |
| Certification: |
RoHS |
| Condition: |
New |
| Type: |
Epon |
Product Description

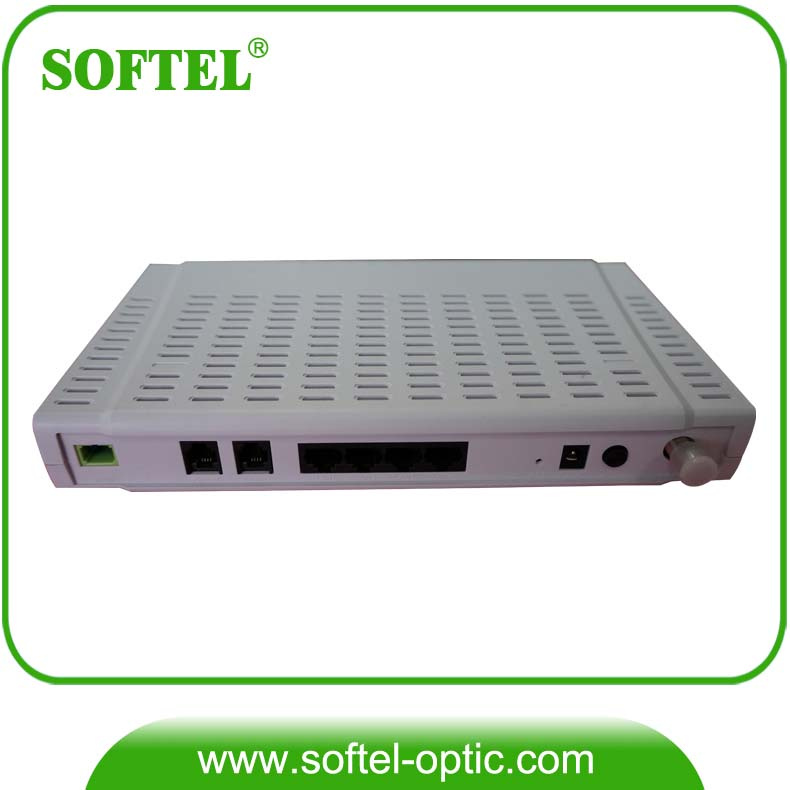

100Mbps FTTH home gateway 3 in 1 ONU (4DATA+2VoIP+RF+WIFI)
Introduction
ONU-4FE-2VRF series products are EPON ONU terminal devices designed for fulfilling FTTx and triple play service demand of fixed network operator or cable operators. It was developed by SOFTEL independently. This box is based on the stable and mature Gigabit EPON technology, which has high ratio of performance to price, and the technology of Layer 2 Ethernet switch, CATV, WDM and high quality VoIP as well. It is highly reliable and easy to maintain, with guaranteed QoS for different service. And it is fully compliant with technical regulations such as IEEE802.3ah and technical requirement of EPON Equipment (V2.1 and above version) from China Telecom.
Special features
1. Plug and play, integrated auto detecting, auto configuration, and auto firmware upgrade technologies.
2. Integrated OAM remote configuration and maintenance function.
3. Support rich QinQ VLAN function and IGMP snooping multicast feature.
4. Integrated line testing compliant with GR-909 on POTS.
5. Support EPON fiber transceiver, CATV Receiver and RF output diagnostic monitoring, EPON fiber transmitter and RF receiver disable remotely.
6. Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
7. For small and medium-sized operators, VoIP services are customizable.
Ethernet Service Functions
1)Full speed non-blocking switching.
2)1K MAC address table.
3)64 full range VLAN ID.
4)Support QinQ VLAN, 1: 1 VLAN, VLAN reusing, VLAN trunk, etc.
5)Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc.
6)Support auto polarity detection of Ethernet ports (AUTO MDIX).
7)Integrated IEEE802.1p QoS with four level priority queues.
8)Support IPv4 IGMP snooping and IPv6 MLD snooping.
POTS Service Functions
1)Call protocol: SIP (IMS compatible), seamless compatible with all popular call agent.
2)Integrate heartbeat function and support active/standby call agent.
3)Voice coding: ITU-T G. 711/G. 723.1(5.3K/6.3Kbit/s)/G. 729, auto-negotiate with call agent.
4)Echo cancellation exceeding ITU-T G. 165/G. 168-2002, up to 128ms tail length.
5)Support high/low speed fax/Modem, bypass fax, and T38 fax.
6)Support RFC2833 and redundant RFC2833, difference rings, MD5 authentication, call forward, call waiting, hot-line call, alarm clock, and all kinds of value-added voice service.
7)Multi-party conferencing.
8)Line testing according to GR-909.
9)IP address assignment: Dynamic PPPoE/DHCP Client and static IP.
10)Support WEB, CLI, TR069.
11)Integrated OAM, XML, DHCP option 66 & 67 for auto configuration and firmware upgrade.
12)Call loss is less than 0.01%.
CATV Service Functions
1)RF frequency: 45~875MHz.
2)Turn on/off RF output remotely.
3)RF level can be showed on PC Web real time.
| Technical items | Descriptions |
| Upstream PON interface | 1 EPON interface, SC single-mode/single-fiber, symmetric 1.25Gbps |
| Wavelength | Tx1310nm, Rx 1490nm, CATV 1550nm |
| Optical interface | SC/APC |
| CATV interface | SCTE F type |
| WLAN | Compliant with IEEE802.11b/g/n |
| Downstream LAN interface | 3 10/100Mbps and 1 10/100/1000Mbps auto adaptive Ethernet interfaces, Full Duplex/Half Duplex, RJ45 connectors |
| Downstream POTS interface | 2 FXS, RJ11 connectors |
| Indicators | 11 indicators, for status of power supply, PON, LAN and POTS. |
| DC power supply | +12V, external AC-DC power adaptor |
| Reset button | 1, restore the device. |
| Power button | 1, power on/off the device |
| Power consumption | ≤ 10 W |
| Operating condition | Operating temp: -5 - +55ºC
Operating humidity: 10-90% (non-condensed) |
| Storing condition | Storing temp: -30 - +60ºC
Storing humidity:10-90%(non-condensed) |
| Dimension | 240mm*150mm*37mm(length*width*height) |
| Net weight | 0.62Kg |
