Self-Supporting Aerial Optical Fiber Cable GYFTC8Y

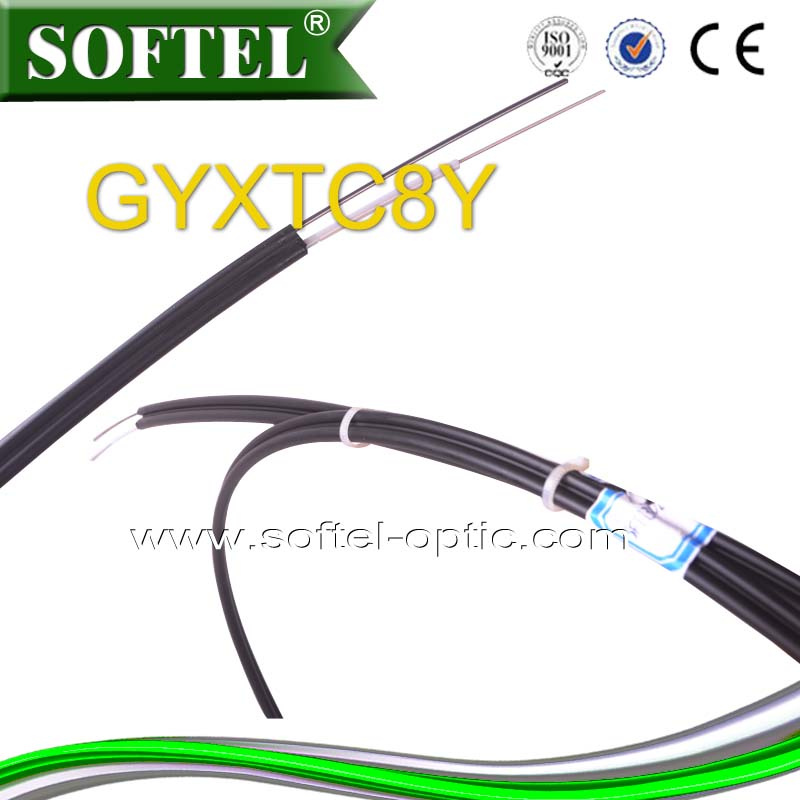

Name: Self-Supporting Aerial Optical Fiber Cable GYFTC8Y
Brand: all-electronics-online.com
SKU: 712037492
Availability: InStock
Rating: 5 (146 reviews)

Price:	Negotiable/Roll
Min Order:	2/Roll
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYFTC8Y
Apply For:	Directly Burial
Fiber Count:	2-432cores
Cable Type:	Sm or mm
Fiber Type:	G652D
Material Of Jacket:	MDPE/HDPE
Fiber Optic Cable Tube:	Central Loose Tube
Model Name:	Fiber Optic Cable
Model No.:	GYFTC8Y
Delivery Time:	30 Days
MOQ:	2 Drum
Application:	Communication
Type:	Multi-mode Fiber
Connection Structure:	SC
Certification:	CE
Brand:	Softel
Sheath Material:	PE

Product Description

Stranded Loose Tube Armored Outdoor GYTY53 Cable For Directly Burial Using

1. Application:

These corrugated steel tape armored and double sheath cables are suitable for installation in harsh environments where mechanical impact on the cable to be expected, e. G. Direct buried application. They are also suitable for installation in ducts where the rodent resistance is to be expected.

Features:

1. Up to 432 fibers
2. The loose tube stranding technology make the fibers have good secondary excess length and allow the fibers free movement in the tube which keeps the fiber stress-free while the cable is subjected to longitudinal stress.
3. Corrugated steel tape armored and double PE sheath providing excellent crush resistance and rodent resistance.
4. Metal strength member provides excellent strain performance.

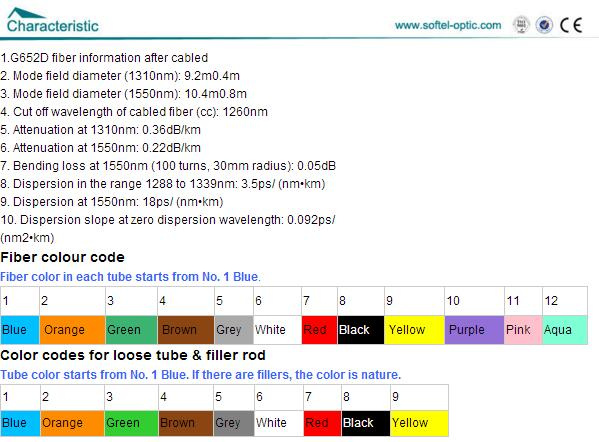

Item	Specification
F iber t ype	Single mode
Fiber material	Doped silica
Attenuation coefficient @ 1310 nm @ 1383 nm @ 1550 nm @ 1625 nm	£ 0.36 dB/km £ 0.32 dB/km £ 0.22 dB/km £ 0.30 dB/km
Point discontinuity	£ 0.05 dB
Cable cut-off wavelength	£ 1260 nm
Zero-dispersion wavelength	1300 ~ 1324 nm
Zero-dispersion slope	£ 0.09 3 ps/(nm 2 .km)
Chromatic dispersion @ 128 8 ~ 133 9 nm @ 1271 ~ 1360 nm @ 1550 nm @ 1 625 nm	£ 3.5 ps/(nm. km) £ 5.3 ps/(nm . km) £ 1 8 ps/(nm . km) £ 22 ps/(nm . km)
PMD Q (Quadrature average*)	£ 0. 2 ps/km 1/2
Mode field diameter @ 1310 nm	9.2 ± 0.4 um
Core / Clad concentricity error	£ 0. 5 um
Cladding diameter	125.0 ± 0.7 um
Cladding non-circularity	£ 1.0 %
Primary c oating diameter	245 ± 10 um
Proof test level	100 kpsi (=0.69 Gpa), 1%
Temperature d ependence 0 o C~ +70 o C @ 1310 & 1550nm	£ 0.1 dB/km

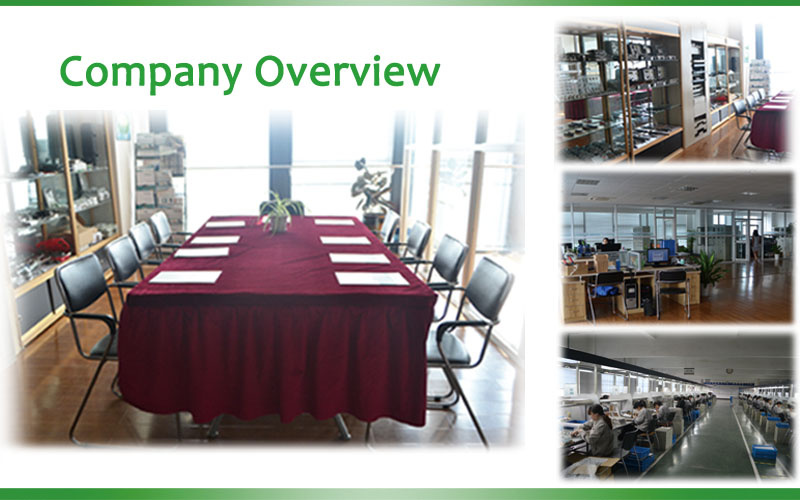

Hangzhou Softel Optic Co., Ltd. (Brand: SOFTEL) was established in 2006, which Located in the HangZhou Hi-Tech Development Zone. Taking advantage of the modern broadcast and optic fiber communication technology, we are specializing in R&D of CATV system equipment, and leading manufacturer of HFC broadband Optic Transmission equipment with strong R&D capability in this field.

We have more than 100 staff in which 10% of senior technicians. It has more than 1, 000 square meters standards production assembling line, we have strict QC procedure, each unit of our products will go through 3 layer QC procedure, material checking before production, stability and performance testing after production, packing checking before delivery.

Currently, we supplying to numerous agents, integrated dealers and equipment producers all over the world, most of our products move to South America, Russia and north European countries.

Through keen international business competition in good faith, all of our staffs feel big accomplishment & work under heavy responsibility. In addition, we are much proud of providing our invaluable customers with our high quality, high reliability, high efficiency, competitive products.
