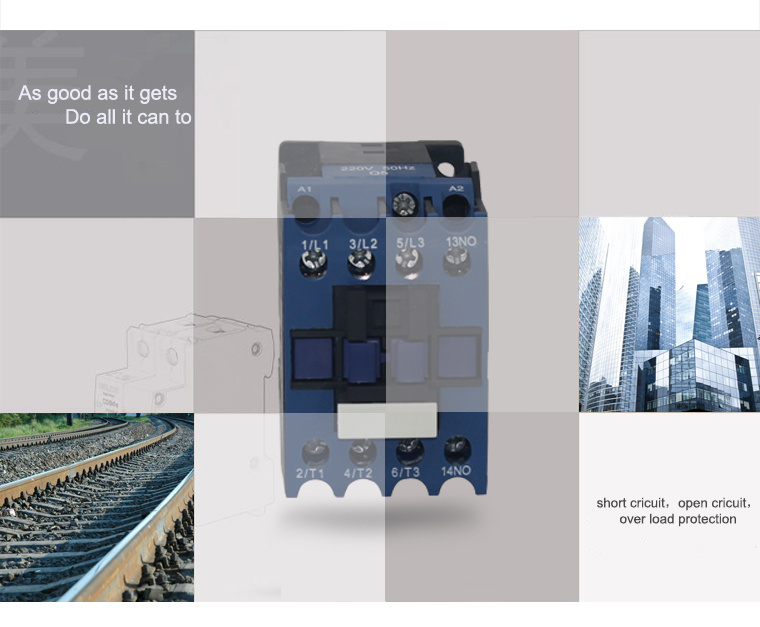

CB and Ce Approval AC Contactor for Control System

Name: CB and Ce Approval AC Contactor for Control System
Brand: all-electronics-online.com
SKU: 828615675
Availability: InStock
Rating: 4.7 (95 reviews)

Price:	US $ 2.45-2.8/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CC1-2510
Electric Ratings:	AC50/60Hz
Utilization Category:	AC-3
Mounting Category:	3
Standarded:	IEC60947-4
Control Coil Voltage:	110V/220V/440V
Size:	Miniature
Theory:	Thermal Relay
Protective Characteristics:	Enclosed Rlay
Load:	Medium Power Relay
Action Principle:	Electronic Type

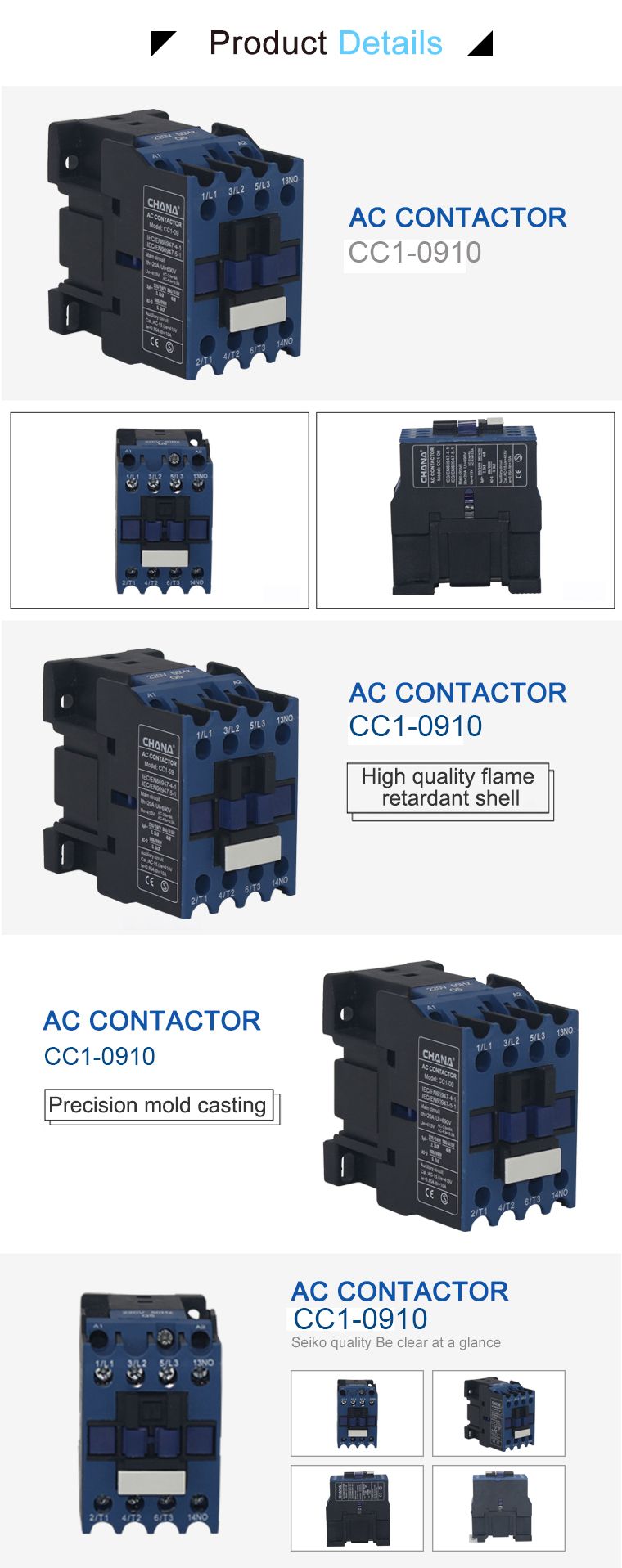

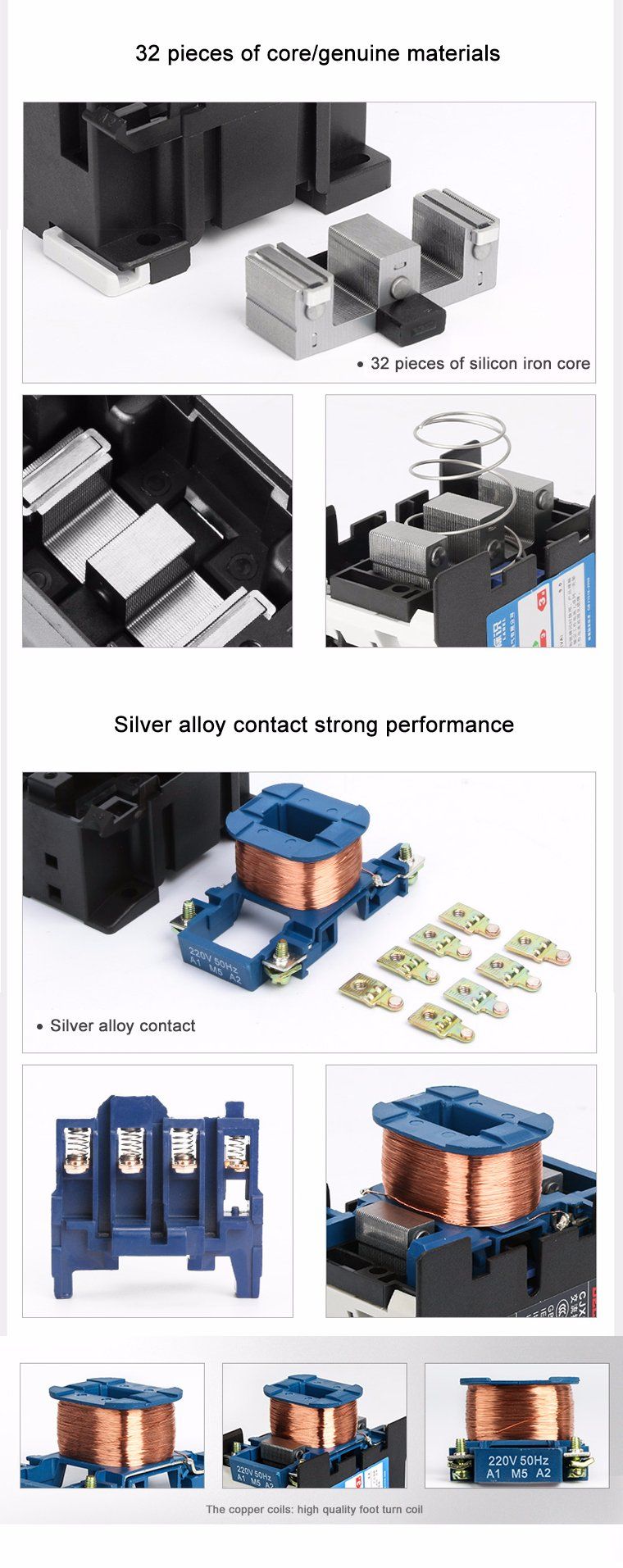

Product Description

Free Samples can be provided

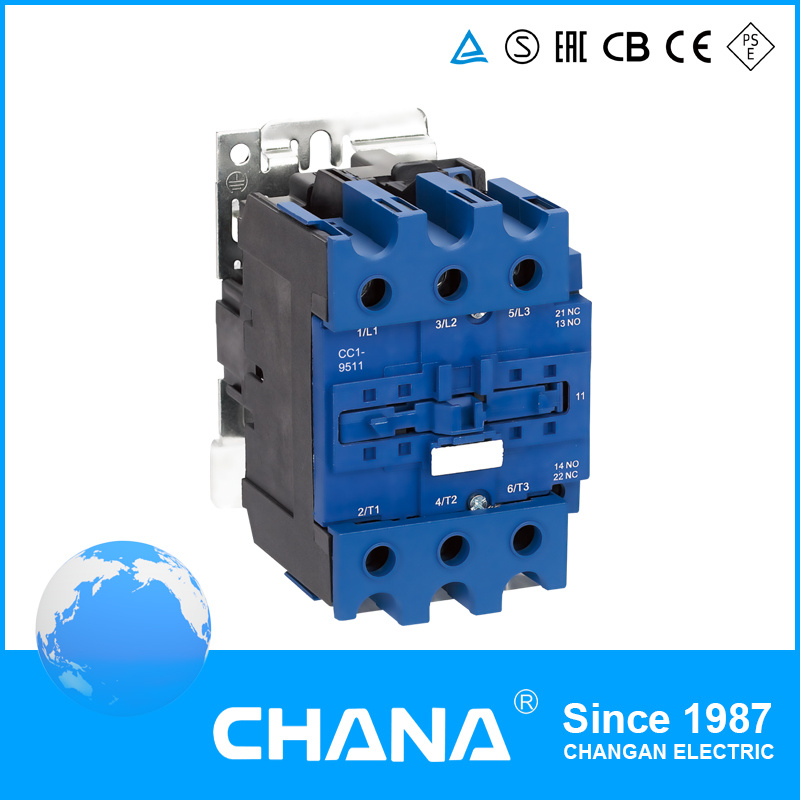

TYpe			CC1- 09	CC1- 12	CC1- 18	CC1- 25	CC1- 32	CC1- 40	CC1- 50	CC1- 65	CC1- 80	CC1- 95
Rated working current (A)		AC3	9	12	18	25	32	40	50	65	80	95
Rated working current (A)		AC4	3.5	5	7.7	8.5	12	18.5	24	28	37	44
AC3 capacity of three-phase squirrel-cage motor AC3(kW)		220/230V	2.2	3	4	5.5	7.5	11	15	18.5	22	25
		380/400V	4	5.5	7.5	11	15	18.5	22	30	37	45
		415V	4	5.5	9	11	15	22	25	37	45	45
		440V	4	5.5	9	11	15	22	30	37	45	45
		500V	5.5	7.5	10	15	18.5	22	30	37	55	55
		660/690V	5.5	7.5	10	15	18.5	30	33	37	45	45
Rated heat current (A)			20	20	32	40	50	60	80	80	125	125
Electrical life	AC4X104		20	20-15	20-7	15-7	15-7	10-7	7	7-6	7-5	7-5
Electrical life	AC3X106		2	2	2	2	2	2	2	1.6	1.6	1.6
Mechanical lifeX106			20	20	20	20	20	20	50	20	10	10
Number of the contact			3P+NO OR 3P+NC
Number of the contact			3P+NO+NC
Matched auxiliary contact type			LA1-DN02(2NC),LA1-DN11(1NO+NC),LA1-DN20(2NO),LA1-DN22(2NO+2NC),LA1-DN40(4NO,LA1-DN04(4NC),LA1-DN13(1NO+3NC),LA1-DN31(3NO+1NC)
Matched time delay auxiliary contact type			Time delay after power on:LA2-DT0(0.1-3S),LA2-DT2(0.1-30S),LA2-DT4(10-180S),Time delay after power off:LA3-DR0(0.1-3S),LA3-DR2(0.1-30S),LA3-DR4(10-180S)

How to Order?
1. Let us have the details of your requirements.
2. Price-list will be sent for confirmation.
3. After prices confirmed,PI will be sent for payment.
4. After get your Deposit,production will be arranged within one day.
5. When goods ready,all the documents for custom clearance will be scanned to you for the balance payment.
6. OEM/ODM is acceptable

Shipping:
1. Normally by SEA From NINGBO TO ...
2. Products are shipped via UPS / DHL / FedEx / TNT and so on expresses (door to door) If the amount is Small.
3. We Provide Drop shipping Service.
4. In order to ensure you receive your order tax free upon import, we can declare lower value according to your demand.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.

Payment:
1. We usually use T/T (30% deposit before production and 70% to be paid against the copy of B/L).
2.If the Amount is small,you can pay to us by western union/Paypal/Money Gram.
3. L/C also acceptable

Warranty:
1. We provide 18 months warranty.
2. If the product is defective, please notify us within 10 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
