Cbb65 Air Conditioner Capacitor

Name: Cbb65 Air Conditioner Capacitor
Brand: all-electronics-online.com
SKU: 698902562
Availability: InStock
Rating: 4.3 (79 reviews)

Price:	US $ 0.18/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CBB65-1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Shell:	Aluminium
Type:	Polypropylene Capacitor
Application:	Fan
Package Type:	Through Hole
Capacitance:	5-80UF

Product Description

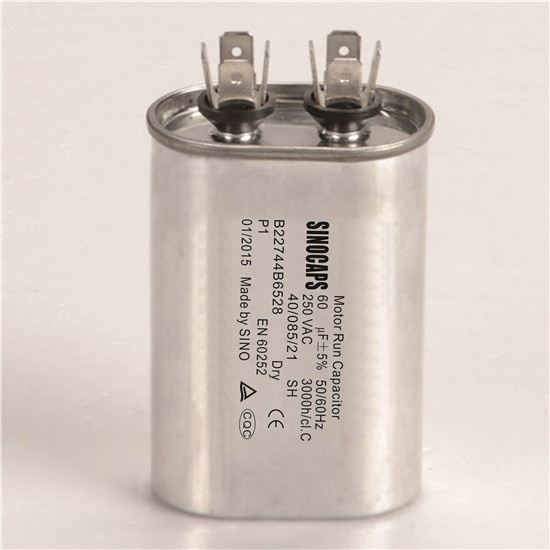

CBB65 Motor run capacitor:

1.CE,CQC & ROHS proved
2. High quality capacitor
3. Explosion-proof structure
4.OEM is available

Main Feature:
1. Cylindrical aluminum outer shell. With pressure-isolation explosion-proof device. Welded pads lead-out.
2. Small bulk volume and light weight. Easy and reliable installation. Good spontaneous cure.
3. Application of P-ZnRx and many other high-tech results. SINO #CBB65 capacitor with good electric feature and high reliability.
4. Large resistance to electric shock. High electric resistance.
5. Suitable for start and running of 50Hz/60Hz AC motor. Especially suitable for application in series-parallel networks of domestic electric appliances such as air conditioners, refrigerators, washing machines and lights.

MSDS of SINO #CBB65 Motor run capacitor:
Capacitance Range	5μF~80μF
Rated Voltage	250VAC~500VAC(50/60Hz)
Capacitance Tolerance	±5% or Fulfilled upon request
Loss Tangent	Tgδ≤0.002(50Hz-100Hz)
Standard Temperature	70ºC, 85ºC, 105ºC
Climate Class	25/70/21, 40/85/21
Test Voltage	Between terminals	AC≥2.00Un 2S NO BREAKDOWN
	Between terminals and case	AC≥2000V 2S NO BREAKDOWN
Insulation Resistance	Between terminals	Rj·C≥3000MΩ.μF
	Between terminals and case	Rj≥1000 MΩ.μF
Security Level	P1, P2
Executing Standard	GB/T3667.1-2005, IEC60252-1:2001, IEC252
