CCA CCS CCAM Electrical Thhn Tw Thw Building Wire

Name: CCA CCS CCAM Electrical Thhn Tw Thw Building Wire
Brand: all-electronics-online.com
SKU: 710755362
Availability: InStock
Rating: 4.3 (106 reviews)

Price:	US $ 0.1-1/Meter
Min Order:	2000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	wire
Voltage:	Low
Insulation:	PVC
Conductor:	Copper
Type:	Insulated
Conductor Type:	Stranded
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	CCC
Application:	Building
Range Of Application:	House
Brand:	Huatong

Product Description

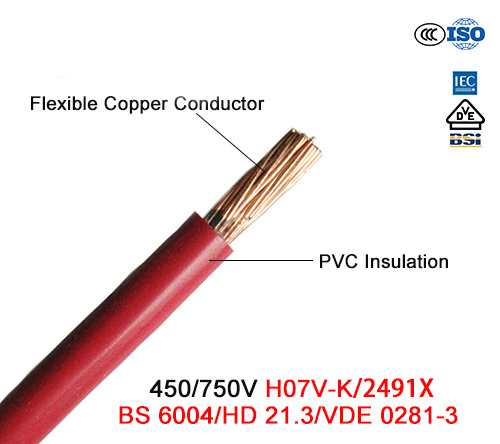

2.5mm 450/750V Copper/PVC insulated electric wires/Building wire

1). Voltage: 300/500V, 450/750V

2). Application:electric equipment, household, and electrical appliance.

3). Specification (Electrical wires series include the following) :

* Solid copper (or aluminum) conductor, PVC insulated single core electrical wire

* Stranded copper conductor, PVC insulated single core electrical wire

* Solid copper conductor, PVC insulated and PVC sheathed round multi-core electrical wire

* Solid or stranded copper conductor, PVC insulated and PVC sheathed flat electrical wire(two cores or three cores)

* Flexible copper conductor, PVC insulated single core electrical wire

* Flexible copper conductor, PVC insulated twin parallel electrical wire

* Flexible copper conductor, PVC insulated and PVC sheathed multi-core electrical wire

4). Standards :IEC60227 DIN VDE0281-5 BS6004/6007/6360N AS/NZS etc.

5). Norminal cross section size of conductor:

0.5mm2, 0.75 mm2, 1.0 mm2, 1.5mm2, 2.5 mm2, 4.0 mm2, 6.0 mm2, 10 mm2, 16 mm2, 25 mm2, 35 mm2, 50 mm2

6).Model and Name:see table1

Model	Name
RV	Copper Core PVC Insulation Flexible Wire
RVB	Copper Core PVC Insulation Flat Flexible Wire
RVS	Copper Core PVC Insulation Twisted Flexible Wire
RVV	Copper Core PVC Insulation Sheath Round Flexible Wire
RVVB	Copper Core PVC Insulation Sheath Flat Flexible Wire
RV-90	Copper Core Heat-resistak Losc PVC Flexible Wire

7).Specification Size and Technical Data:see table 2

Nominal Section (mm²)	Core Structure No./Dia.(mm)	Max Dia.(mm)	Reference Weight(kg/km)
0.3	16/0.15	2.3	6.4
0.4	23/0.15	2.5	8.1
0.5	16/0.2	2.6	9.1
0.75	24/0.2	2.8	12.2
1.0	32/0.2	3.0	15.1

RV 450/750V

Nominal Section (mm²)	Core Structure No./Dia.(mm)	Max Dia.(mm)	Reference Weight(kg/km)
1.5	30/0.25	3.5	21.4
2.5	49/0.25	4.2	24.5
4	56/0.20	4.8	51.8
6	84/0.30	6.4	74.1
10	84/0.30	8.0	12.4

Huatong Cable Inc. has made outstanding contribution to STATE GRID, China SOUTH POWER GRID and the construction of domestic and foreign power market since foundation in 1993. The honors should be attributed to more than 20 years of constant R&D, market service and strong will.

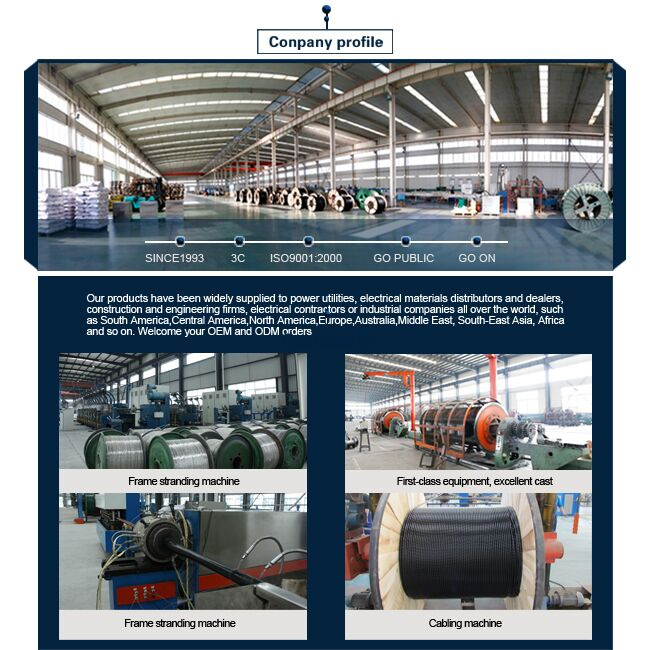

Huatong Cable Inc. has set up overhead conductor division, power cable division and division of wire and cable for equipment. The division respectively takes charge of manufacture and marketing of overhead conductor, power cable and wire and cable for equipment. In 2002, our company set up the cable industry design and technology R&D department, providing technical support for product design and production. Our company makes independent innovation, and seeks cooperation with academic institutions including Shanghai Electric Cable Research Institute and China Electric Power Research Institute so as to meet the customized demands of customers and production needs of special cable. Now our company owns 25 exclusive rights to use trademark registered at home and abroad and 14 independent intellectual property patents. ACSR-720/50 aluminum cable steel reinforced has passed the technical appraisal of China Electricity Council. 500KV or above extra-high voltage conductor was put into production, came into service and had good operation record.

In 2013, Huatong Brand was awarded WELL KNOWN MARK OF China by the Trademark Office of the State Administration of Industry and Commerce, enjoying a high reputation in domestic market. The honor and legal status reflect the recognition of customers and support of the State Administration of Industry and Commerce. It is the only enterprise in cable industry in Henan that was awarded WELL KNOWN MARK OF China and Huatong brand will serve the society in the future.
