CCA Tinned Wire

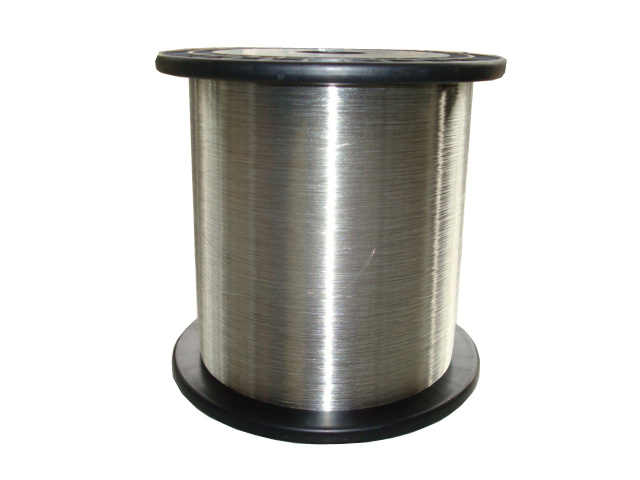

Name: CCA Tinned Wire
Brand: all-electronics-online.com
SKU: 765102215
Availability: InStock
Rating: 4.8 (78 reviews)

Price:	US $ 3.8KG
Trade Terms:	FOB,CFR
Min Order:	500KGS
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	0.12 mm-0.80mm
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diameter & Tolerance:	0.30 mm ±1%
Tensile Strength(MPa) Max.:	172
Resistivity:	0.02676
Elongation Min.:	10
Thickness Of Tin Min.:	1.5
Application:	Long Distance Symmetric Cable
Conductor Material:	Copper
Certification:	SGS
Brand:	Qinfeng

Product Description

Tinned CCA wire is a new shielding materials which made of CCA coil and Tin layer.the electric property
and mechanical property among Copper wire and Aluminum wire.It combines the good conductivity of
Copper and light weight of Aluminum and it owns good shielding performance ,easy to weld not easy to oxidation.
Specification:diameter 0.12mm-0.80mm
Application:
1.Used for produce braiding wire. Braiding wire used for flexible connections of electrical installation switching device;
2.Used for production of the wave-proof cover. Wave-proof cover used for prevent radio frequency interference or protection of shielding copper braided cover.
3. Used in the production of soft wire.Soft wire is power transmission and distribution in electrical devices and electrical and electronic equipments and the components of silicon controlled flexible connections;
4. All kinds of shielding network line; All kinds of tape screened multi-fiber signal cables, etc.

Normal package: Spool size DIN130mm,DIN180mm,DIN250mm,DIN400mm.

Main Technical Parameters

Type	Technical Characteristics
TCCA	Diameter & Tolerance	Tensile strength(Mpa) Max.	Resistivity(Ω.mm²/m) Max. at 20ºC	Elongation(%) Min.	Thickness of Tin(μm) Min.	Density(g/cm³) Max at 20ºC
	0.40 mm ±1%	172	0.02676	10	1.5	3.68 (,clad type) 2.90 (,plated type)
	0.35 mm ±1%			10	1.3
	0.30mm ±1%			5	1.2
	0.25 mm ±1%			5	1.1
	0.20 mm ±0.003mm			5	1.0
	0.18 mm ±0.003mm			5	0.9
	0.15 mm ±0.003mm			5	0.7
	0.127 mm ±0.003mm			5	0.5

Products can be customized according to special requirements.

With its strong R&D ability and dozens of years of successful application experiences, changzhou zhong hua qin feng copper industrial Co., Ltd of jiangsu province makes the R&D and market application of double metals integrated into the world, for it is the first company which introduces the newest conductor material of copper clad aluminum as the substitution of pure copper into China.

Our company is located in new district in yangtze river delta economic area of changzhou city, enjoying the convenient transportation system and developed economy. Our company now occupies an area of 34, 000 square meters, with registered capital of 10 million RMB and fixed asset of 50 million RMB. Our main productors are copper clad aluminum-magnesium wire (CCAM), copper clad aluminum wire(CCA) and the second generation copper clad aluminum wire, and can produce 21 tons per day, and our annual production reaches 7000 tons to 8000 tons, which could meet the needs of various enterprises within and without. Our products include the 0.1mm-2.0mm CCAM wire, 0.1mm-2.0mm CCA wire and other types of double metal wires.

Our company aims at reducing the customer's cost by upgrading our products and continuously researching and developing new products. And we continuously bring out the new reliable new material, new workmanship and new technology to meet the light-weight requirement of copper clad aluminum wire in such areas as the electric appliances and electronic industry.

Upholding the principle of credit being the priority, good quality, long term cooperation and common development, our company is ready to be the excellent and reliable supplier of your first choice.
