| Prod Model: |
CCA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
as Your Requests |
| Color: |
as Your Requests |
| Delivery Detail: |
15 Days or Depend on Your Quantity |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Overhead |
| Conductor Material: |

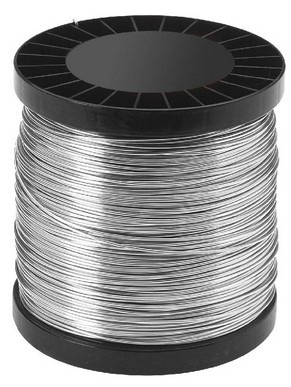

Copper Clad Aluminum |
| Insulation Material: |
Bare |
| Certification: |
CCC |
Product Description
Specifications
1. ISO CCC standard
2. Manufacturer / OEM
3. Good quality, best service and good price
4. Welcome to visit our comapny and check goods
1. Brief product introduction
This product is suitable for linking the household electrical appliance, small electric tools, Instrument and power lighting devices with the rated voltage equal or less than 450/750V AC. The operation temperature of the wire is 90° C for BV-90 and RV-90, BV-105 model not more than 105° C, The other is 90° C. Installation temperature not lower than 0° C.
2. Type, description and range of production
Category
| Descriptions
| Type
| Rated voltage
| No. of cores
| Nominal Cross .section mm 2 .
|
Non-sheathed cables and wires for fixed wiring
|
Single core solid conductor non-sheathed cables for common uses
| 60227IEC01
(BV)
| 450/750
| 1
| 1.5~400
|
Aluminum conductor PVC insulated cables
| BLV
| 450/750
| 1
| 2.5~400
|
Copper conductor PVC insulated flexible cables
| BVR
| 450/750
| 1
| 2.5~70
|
Copper conductor PVC insulated wires
| BV
| 300/500
| 1
| 0.75~1.0
|
Single core solid conductor non-sheathed cables for internal wiring of equipment with conductor operating temperature of 70°C
| 60227IEC05
(BV)
| 300/500
| 1
| 0.5~1.0
|
Single core solid conductor non-sheathed cables for internal wiring of equipment with conductor operating temperature of 90°C
| 60227IEC07
(BV-90)
| 300/500
| 1
| 0.5~2.5
|
Single core flexible conductor non-sheathed cables for common uses
| 60227IEC02
(RV)
| 450/750
| 1
| 1.5~240
|
Single core flexible conductor non-sheathed cables for internal wiring of equipment with conductor operating temperature of 70°C
| 60227IEC06
(RV)
| 300/500
| 1
| 0.5~1.0
|
Single core flexible conductor non-sheathed cables for internal wiring of equipment with conductor operating temperature of 90°C
| 60227IEC08
(RV-90)
| 300/500
| 1
| 0.5~2.5
|
Sheathed cables for fixed wiring
|
Light-duty PVC sheathed cables
| 60227IEC10(BVV)
| 300/500
| 1,2,3,
4,5
| 1.5~35
|
Copper conductor PVC insulated PVC sheathed flat cables
| BVVB
| 300/500
| 2,3
| 0.75~10
|
Aluminum conductor PVC insulated PVC sheathed circular cables
| BLVV
| 300/500
| 1
| 2.5~10
|
Aluminum conductor PVC insulated PVC sheathed flat cables
| BLVVB
| 300/500
| 2,3
| 2.5~10
|
Flexible cables(cords)
|
Non-sheathed flat cords
| 60227IEC42(RVB)
| 300/300
| 2
| 0.5~0.75
|
Cords for indoor illumination loops
| 60227IEC43
(SVR)
| 300/300
| 1
| 0.5~0.75
|
Light-duty PVC sheathed cords
| 60227IEC52(RVV)
| 300/300
| 2,3
| 0.5~0.75
|
Ordinary PVC sheathed cords
| 60227IEC53(RVV)
| 300/500
| 2,3,4,5
| 0.75~2.5
|
Copper conductor PVC insulated stranded cords for connecting
| RVS
| 300/300
| 2
| 0.5~0.75
|
The company is set Branch, engineering, trade and an integrated enterprise, the main production: Wire and cable, instrument of the three categories of over 500 varieties of more than 2000 specifications. The company provides the following products for your selection and welcomed the use of its main products are: WR series thermocouple, WZ series of thermal resistance, bimetal thermometers, gauges, intelligent digital regulator controllers, temperature converters, display and power cable special cables, control cables, electrical wire and cable equipment communication cables, thermocouple wire compensation, compensation cable and high-temperature fluorine plastic compensation wire, cable, silicone rubber control cables, overhead cables, ACSR and aluminum cables, etc...
The company attaches great importance to science and technology development and technological progress, in December 2000 introduction of a special cable production line, self-regulating heating cable series is currently the most favored by the majority of users of high-tech products. The Company and the National Institute of more than 10 projects to establish a cooperative relationship, sales network throughout the country.
We will adhere to the "technology works, good faith, " the purpose and dedication to providing quality products and excellent service. Welcome patrons, the inquiry.
