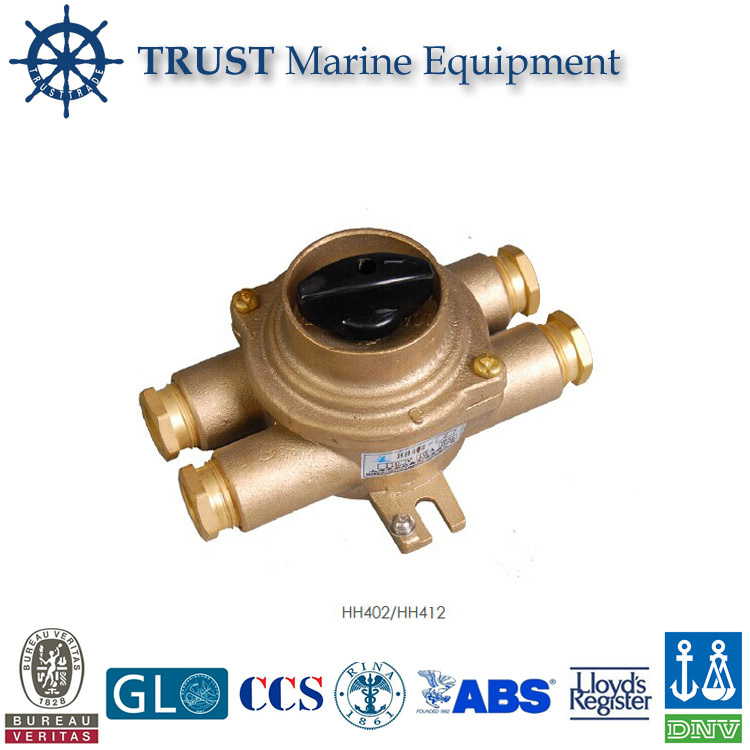

CCS Approved Electric Brass Switch

Name: CCS Approved Electric Brass Switch
Brand: all-electronics-online.com
SKU: 775724865
Availability: InStock
Rating: 4.3 (138 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Various
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Current:	10/16A
Protection Class:	IP56
Cable Outside Diameter:	10mm
Certificate:	CE CCS
Material:	Brass
Weight(Kg):	0.8-1.2
Voltage:	24/110/220/380/440V

Product Description

Product Description

1.Used for connecting cutting on or off the applicance circuit with AC or DC low-voltage.
2.The single pole of plug pulled out should be not less than 4N.
3.The temprerature rise of conductive part should don't exceed 40K.
4.The protection class is IP56.
5.The metatl shell should have reliable earthing device.
6.The screw of cover plate is M6 locking screw.

Feature

Products protection class:IP56
Cable outside diameter is 12mm
Adopt standard: DIN89267
Products approved: CE(European Conformity) and CCS(China Classification Society).

Parameters

Voltage(V)	24	125	250	380/44	380/440
General cable type	HH101-1	HH 101-2	HH 101-3	HH 101-4	HH 101-5
Shield cable type	HH 111-1	HH 111-2	HH 111-3	HH 111-4	HH 111-5
Weight(kg)	0.8
General cable type	HH 201-1	HH 201-2	HH 201-3	HH 201-4	HH 201-5
Shield cable type	HH 211-1	HH 211-2	HH 211-3	HH 211-4	HH 211-5
Weight(kg)	1.0
General cable type	HH 202-1	HH 202-2	HH 202-3	HH 202-4	HH 202-5
Shield cable type	HH 212-1	HH 212-2	HH 212-3	HH 212-4	HH 212-5
Weight(kg)	1.0
General cable type	HH302-1	HH302-2	HH302-3	HH302-4	HH302-5
Shield cable type	HH312-1	HH312-2	HH312-3	HH312-4	HH312-5
Weight(kg)	1.1
General cable type	HH402-1	HH402-2	HH402-3	HH402-4	HH402-5
Shield cable type	HH412-1	HH412-2	HH412-3	HH412-4	HH412-5
Weight(kg)	1.2

About our company

Our company is specialized in manufacturing and exporting marine equipment. To guarantee good quality, we follow ISO9000 standards to inspect our goods. From raw material purchase to pre-shipment inspection, we keep an eye on every step to ensure the satisfaction of our customer on quality. Our products are approved by ABS, BV, CCS, DNV, EC, GL, KR, LR, NK and RINA.

Persisting in the principle of "QUALITY IS LIFE, CUSTOMER IS GOD", we will strive for high efficiency, passion and integrity to provide our customers with high-quality products and superior trade services.

Jingjiang trust trading Co., Ltd. Was established in 2008, we' Re specializing in manufacturing & exporting marine equipment, construction material, ship models and heating treatment fixtures. With professional mechanical engineers and sales staff mastered in international trade, we' Ve been devoting ourselves to introducing Chinese best products to worldwide customers. Our advantages are good price, excellent quality, fast delivery & good service.

Our main scope of business:

Marine:

*Propeller & shaft system

* lifeboat, davit, life raft, life jacket, life buoy,

* anchor, chain, crane, winch, windlass, bollard, fairlead, rope, fender

* marine door, window, ladder, valve, pump & other fittings

* Marine hardwares, blocks, riggings, wire ropes and slings

* fishing tackles (nets, compass, light, cage)

* Water hydrophore, fresh water maker, sewage treatment plant

Construction material: Galvanized steel planks

Heating treatment fixtures

We can also supply complicated equipment according to buyer' S drawing.

We warmly welcome our customer' S comments and advice. In the future, we will work closely with our factories to improve ourselves in quality and service so as to serve our customers better.
