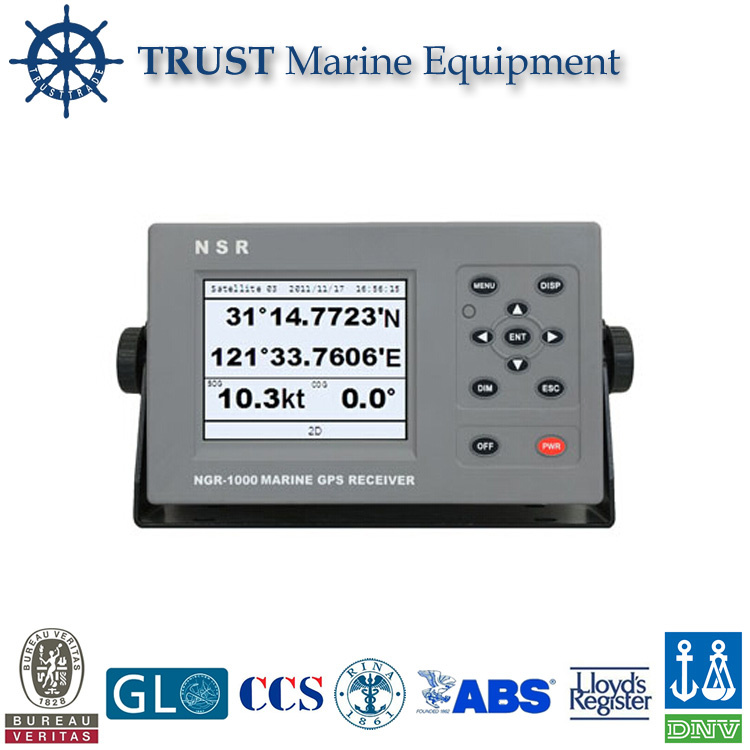

Marine GPS Navigator for Ship with CE Certificate

Name: Marine GPS Navigator for Ship with CE Certificate
Brand: all-electronics-online.com
SKU: 706464962
Availability: InStock
Rating: 4.9 (149 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GPS Navigator
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Receiver:	50 Discrete Channels All-in-View, C/a Code
Rx Frequency:	L1 (1575.42 MHz)
Time To First Fix:	12 Second (Warm Start)
Tracking Velocity:	up to 900 Kt
Update Rate:	1 Second
GPS:	10 M (95%), Sbas Supported
Sog:	± 0.2 Kt (Sog ≤10 Kt)
LCD:	5.7" Silver Bright LCD with LED Backlight
Electrical Interfaces:	RS-422 (4 Outputs, 1 Input)
Type:	GPS Navigator
Operating Principle:	Interferometric Type
Port Number:	Multiplex Multi-purpose Channel
Model:	Integration Type
Carrier Frequency:	Dual-Frequency
Chip:	Telechips

Product Description

Features

- Designed for marine use, fully complying with the international regulations, IMO MSC 112 (73), IEC 61108-1, etc.
- Easy operation with graphic mode display and function keys.
- Has totally 4 ports to output GPS data, which can be respectively configurated for baudrate and conbination of sentences.
- CCS type approval.

Parameters

GPS
Receiver:	50 discrete channels all-in-view, C/A code
RX frequency:	L1 (1575.42 MHz)
Time to First Fix:	12 Second (Warm start)
Tracking Velocity:	Up to 900 kt
Update Rate:	1 second
Accuracy
- GPS:	10 m (95%), SBAS supported
- SOG:	± 0.2 kt (SOG ≤10 kt)
- COG:	± 3° (SOG=1-17kt), ± 1° (SOG> 17kt)
LCD	5.7" silver bright LCD with LED backlight
Interface
Output:	GBS, GLL (L/L), VTG , ZDA, WPL, etc.
Input:	HDT, VBW , etc.
Electrical Interfaces:	RS-
Power Supply	DC24V(10V~38V)
Size	1
Weight	abt 0.4kg

About our company

Our company is specialized in manufacturing and exporting marine equipment. To guarantee good quality, we follow ISO9000 standards to inspect our goods. From raw material purchase to pre-shipment inspection, we keep an eye on every step to ensure the satisfaction of our customer on quality. Our products are approved by ABS, BV, CCS, DNV, EC, GL, KR, LR, NK and RINA.

Persisting in the principle of "QUALITY IS LIFE, CUSTOMER IS GOD", we will strive for high efficiency, passion and integrity to provide our customers with high-quality products and superior trade services.

Jingjiang trust trading Co., Ltd. Was established in 2008, we' Re specializing in manufacturing & exporting marine equipment, construction material, ship models and heating treatment fixtures. With professional mechanical engineers and sales staff mastered in international trade, we' Ve been devoting ourselves to introducing Chinese best products to worldwide customers. Our advantages are good price, excellent quality, fast delivery & good service.

Our main scope of business:

Marine:

*Propeller & shaft system

* lifeboat, davit, life raft, life jacket, life buoy,

* anchor, chain, crane, winch, windlass, bollard, fairlead, rope, fender

* marine door, window, ladder, valve, pump & other fittings

* Marine hardwares, blocks, riggings, wire ropes and slings

* fishing tackles (nets, compass, light, cage)

* Water hydrophore, fresh water maker, sewage treatment plant

Construction material: Galvanized steel planks

Heating treatment fixtures

We can also supply complicated equipment according to buyer' S drawing.

We warmly welcome our customer' S comments and advice. In the future, we will work closely with our factories to improve ourselves in quality and service so as to serve our customers better.
