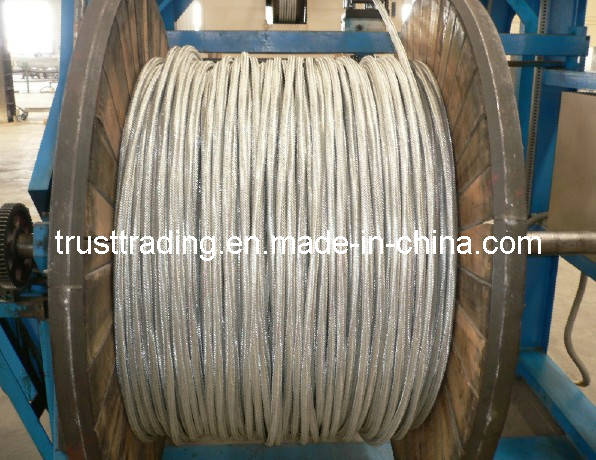

Marine Electrical Cable Marine Power Cable / Control Cable

Prod Model:	YJV72
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Thetype:	Other, 1kv-35kv
Jacket:	PE, PVC
Volatage:	1kv to 35kv
Name:	Marine Electrical Cable Marine Power Cable / Contr
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Copper
Insulation Material:	PE
Certification:	VDE
Brand:	Trust

Product Description

  XLPE INSULATED ARMOURED POWER CABLE 1kV~35 KV
1 Information
 a, Cores and sections
1,  2,  3,   3+1,   3+2,    3+3,  4,    4+1,    4+2,   5 and so on.
No. Of Core and Sectional Area(mm2) :
1 Core 1.5-800     25-800     25-1200     25-1200     35-1200     50-1200     50-1200     50-1200
2 Core 1.5-185     25-185
3 Core 1.5-400     25-400     25-400     25-400     35-400     50-400     50-400     50-400
4 Core 2.5-400     25-400
5 Core 2.5-400       25-400
b, Construction:
Conductor: Solid or stranded copper
Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)
Filler: Polypropylene filament with lapped binding tape
Binder: Binding tape
Inner sheath: Polyvinyl chloride (PVC)
Amour: Galvanized steel wire armored(SWA) or steel tape armored(STA)
Sheath: Polyvinyl chloride (PVC)
c, Nominal Section
Area(mm2) :1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 500 630 800
d. Operating Features:
 1)The maximum conductor operating temperature: 90°C
During short circuit (lasting less than 5 seconds) the maximum temperature of the cable conductor shall not be above 250°C
Environment temperature should be no lower than 0°C for laying the cable.
2)Bending Radius of the Cable:
Single Core Cable: Non Armored Cable 20D, Armored Cable 15D
Cores Cable: Non Armored Cable 15D, Armored Cable 12D.
 Remarks: D means practical external diameter of the cable
e, Features
 XLPE  insulated power cable do not has excellent electric, mechanical properties,but also has powerful resistance against chemical corrosion,heat resistance and enviromental stress resistance. Its structure is simple. The long period operating temperature is +90 °C. It is conveninet to use and can be laid with no restriction of different level.

XLPE insulated steel wire armoured power cable: XLPE/PVC insulated power cable has a number of advantages over paper insulated and PVC insulated cable. XLPE cable has high electric strength, mechanical strength, high-ageing resisting, environmetal stress resisting antichemical corrossion, and it is simple construction, using convenient and higher operating of long term temperature. It can be laid with no drop restriction.

Various of flame-retardant and non-flame retardant XLPE cable can be manufactured with three technology(peroxide, silane and irradiation crosslinking). The flame-retardant cable covers all kinds of low-smoke low-halogen low-smoke halogen free, and non-smoke nonhalogented and three classes of
A, B, C.
 2 Standard:
IEC60502,and BS6346, VDE, AS/NZS, UL,etc or as customer's request.
 3 The Rated Voltage(kv):
1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35
2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35
 4 Application:
1)These cables are most suitable for direct burial or for installation on trays or ducts,  Where there is
a risk of mechanical damage, armoured cables should be used.
2) For laying in ground along route with large difference of level able to bear external mechanical forces.
5 Model and Name

China Type		Description	Application
Cu	Al
YJV	YJLV	XLPE insulation PVC sheath power cable (Cu/XLPE/PVC)	To be laid indoors, in tunnel, cable furrow or pipe, the cable couldn't bear mechanical force outside
YJY	YJLY	XLPE insulation PE sheath power cable (Cu/XLPE/PE)
YJV22	YJLV22	XLPE insulation, steel tape armor,  PVC sheath power cable (Cu/XLPE/PVC/STA/PVC)	To be laid underground, the cable could bear certain mechanical force, but it couldn't bear great pulling force.
YJV23	YJLV23	XLPE insulation, steel tape armor,  PE sheath power cable (Cu/XLPE/PVC/STA/PE)
YJV62	YJLV62	XLPE insulation,  no  magnetism steel tape armor,  PE sheath power cable
YJV32	YJLV32	XLPE insulation, thin steel-wire  armor,  PVC sheath power cable (Cu/XLPE/PVC/SWA/PVC)	Be applicable to the well, water inside and fall in the bad soil, the cable cans bear the equal dint outside the machine with pull the dint .
YJV72	YJLV72	XLPE insulation, have no the magnetism thick steel-wire  armor,  PVC sheath power cable
YJV42	YJLV42	XLPE insulation, thick steel-wire  armor,  PVC sheath power cable	Be applicable to the well, underwater with the bottom of sea, the cable cans bear the bigger pressure with lead to pull the dint.



We have passed ISO9001, OHSAS18001, ISO14001, CE, CCC certificate and have professional design team. Our products mainly export to Africa, South America, North America, Central America, South Asia.
