CCT Brightness Adjustable LED Dimmer

Name: CCT Brightness Adjustable LED Dimmer
Brand: all-electronics-online.com
SKU: 809377025
Availability: InStock
Rating: 4.4 (121 reviews)

Price:	US $ 3.95-4/Piece
Min Order:	10/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LYD-T
Output:	2 Channel
Output Current:	6A/Circuit
Connection Mode:	Common Anode
Frequency:	433.92MHz
Application:	Audio / Video Players
Signal Transmission:	RF Remote Control
Certification:	CE
Universal:	Universal
Transmission Distance:	<50m
Battery Type:	AAA Battery
Type:	Touch Panel
Material:	Aluminum
Voltage:	DC12V~24V

Product Description

Basic Info

Place of origin:	Shenzhen,China
output control:	2 circuit(Warm White&Pure White)
control current:	6A/circuit
Connecting method:	common Anode
Wireless Frequency:	433.92MHz
Receiving Range:	20meters
Cover Material:	ABS
Working Voltage:	DC12V/24V

Product Description
This is a multi-function Touching LED Controller.it adopts the most advanced PWM remote control Technology.can control all the full color led lighting with three lines two circuits(common anode).with 20 grades of brightness and 11 grades of color temperature adjusting.it is widely applied to LED strip and dimmable and color temperature adjustable led lighting.etc

Techinical Parameters(remote control)
1.power supply:AAA battery*3pcs
2.Cover material:ABS
3.Fabrication Processing:multicolor printing&UV varnish

Techinical Parameters(controller)
1.Working Voltage:DC12V/24V
2.Output control:2 circuit(Warm White&Pure White)
3.control current:6A/circuit
4.Connecting method:Common Anode
5.Wireless Frequency:433.92MHZ
6.Receiving Range:20meters

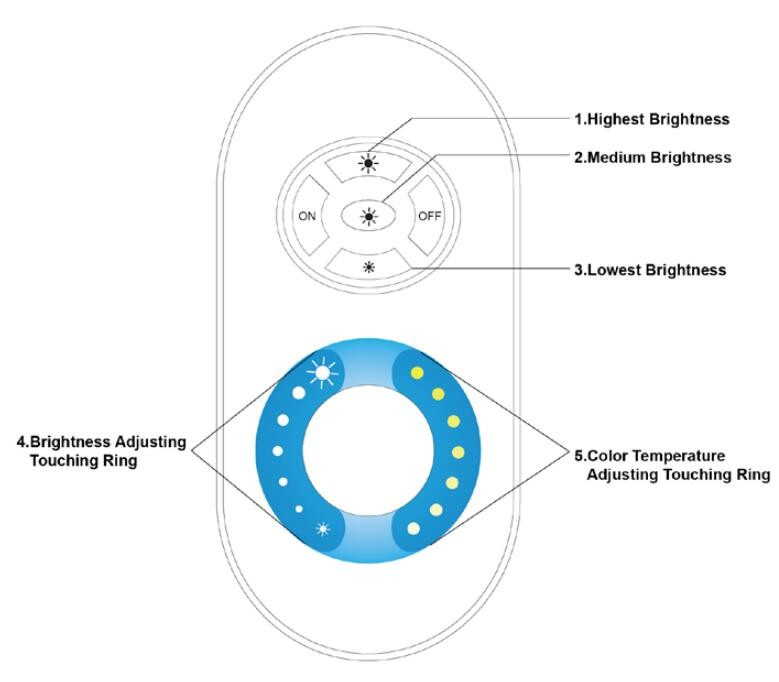

How to use
1.Brightness adjusting:Use your finger to touch the left half part of color ring.you can change the brightness from the highest to lowest(100%-1%.20grades of brightness to adjust)

2.Color Temperature Adjusting:use your finger to touch the right half part of color ring,you can adjust the temperature from warm white to cool white(11 grades to adjust)

3.Resume Function:the previous settings must be resume while power on again

4.Matching Code:
Press key 3 once 3 seconds when power on again.the light will blink 3 times if matching is successful

5.Clearing Code:
Press key 3 five times within 3 seconds when power on again.the light will blink 6 times if clearing is successful.

Caution:
Please do not touch or press the color ring when loading the batteries to protect the sensitiveness.
Please use the remote controller 3 seconds after the batteries are loaded.pls reload the batteries when you find the color ring is not sensitive.
