| Prod Model: |
CCTR-800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
5 Years |
| Function: |
Over Speed Alarm, Emergency Sos Help Function etc |
| Weight: |
130g |
| Dimension: |
69*48*26mm |
| Voltage: |
12-24V |
| Package: |
Gift Box |
| GSM / GPS Antenna: |
Built in |
| GPS Cold Start Time: |
36 Seconds |
| GPS Hot Start Time: |
1 Second |
| GPS Channel: |
32 Channels |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Model: |
Cctr-800 |
| Screen Size: |
No Screen |
Product Description

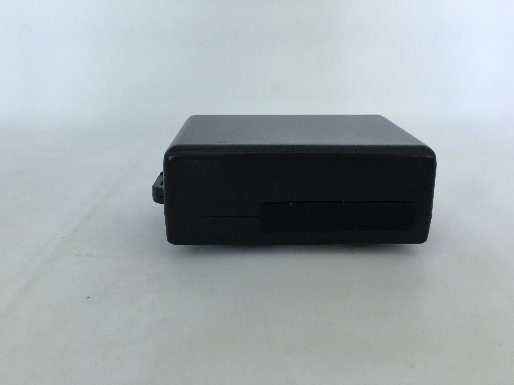

Cctr-800 Portable Real Time GPS Tracker Waterproof GPS Tracking Device for Car/Vehicle/Kids/Pets
r
Primary Competitive Advantages:
- Real time upload current location to website
- No platform Service charge (Our free tracking platform)
- Waterproof & magnet pin
- Large capacity rechargeable battery (2000mAH) & long standby time
Key Specifications/Special Features:
- Real time upload current location to website
- No platform Service charge (Our free tracking platform)
- Working method: locate with GPS, upload with GPRS
- SIMCOM GSM module (4 frequency) & GPS module (Sirf or MTK chipset)
- GSM and GPS antenna are embedded in the tracker
- Built in memory to record track without GSM network
- Upload interval is 10-30 seconds according the setting of tracker
- After the tracker stop moving 2 minutes or ACC turn off, uploading will stop
- Built in shock sensor to control GPS on off to enlarge battery life
- Shock sensor can be used as car shock & move alarm
- User visit website and logon and then tracking the car or display the history tracking
- It is not necessary to download any software, a PC connecting to internet is OK
- Platform use free Google map, it is not necessary to pay any map charge
- If enters place(underground park) without GPS, it will report the last position tracked
- Can preset 3 phone number by SMS
- Can send SOS or alarm information to preset phone
- Send alert of over range to the preset phone when it go out the restricted area
- Send alert of over speed to the preset phone when it exceeds the restricted speed
- Built in backup rechargeable polymer battery (Battery Life 1-7 days)
- Auto send battery low information to preset phone by SMS
- The power can be connected to car battery all the time

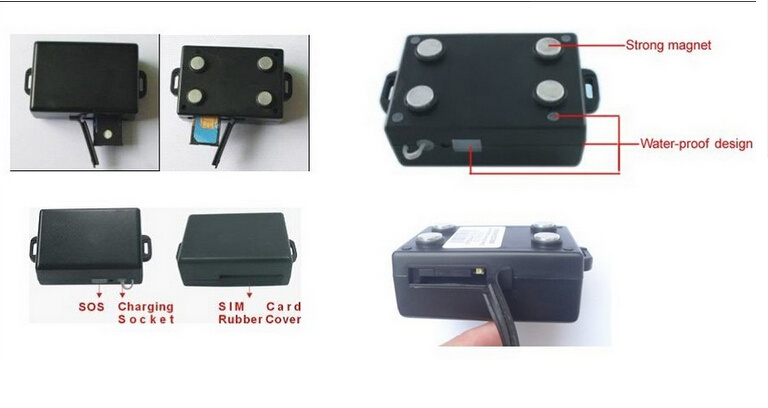

- Can be attracted on the metal of car body with magnet pin(Need GPS signal)
- Level IP56 waterproof
- It is easy to hidden, used for tracking cars, bus, taxi, rent cars, moving equipment etcSpecification:
| Dimension: | 69mm*48mm*26mm | weight | 130g |
| GSM Module | SIMCOM 900 or 800 | GPS Module | Sirf-Star or MTK |
| GSM Frequency | 850/900/1800/1900 MHz | GPS channel | 32 channels |
| GSM / GPS Antenna | Built in | Locate precision | 10-20 Meters |
| Working Current | <200mA | GPS Hot Start Time | 1 second |
| Standby Current | < 1.5 mA | GPS Cold Start Time | 36 seconds |
| Battery | 2000mAh | Recharging Current | < 5.5V/500mA |
| Working Temperature | -20 ºC to +55 ºC | Storage Temperature | -40ºC to +80 ºC |

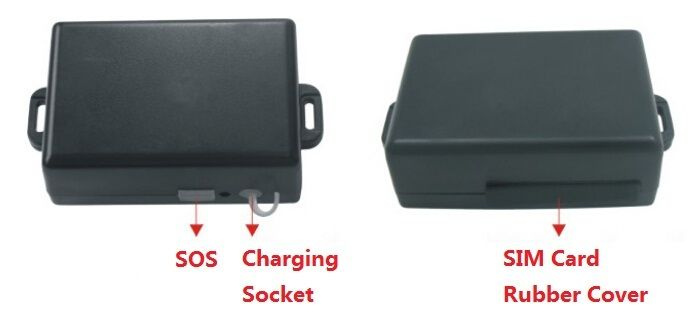

Install SIM card
Pulling out the long narrow rubber stopple beside the tracker, you can see the SIM card socket, beside which, press the
yellow switch button with a tool and then the holder will come out. Pull it out and put the SIM card in the holder and then
push the holder into the tracker, (Pay attention to that the SIM card metal contact pin can not face down to the holder)
at last push the long narrow rubber stopple into the tracker to cover the SIM card socket.
Note: 1. This tracker use 2G GSM network, and it upload tracking only through 2G GPRS, it can not work in CDMA
network or 3G(WCDMA or CDMA2000) network.
2. Before installing or uninstalling the SIM card, please power off the tracker.

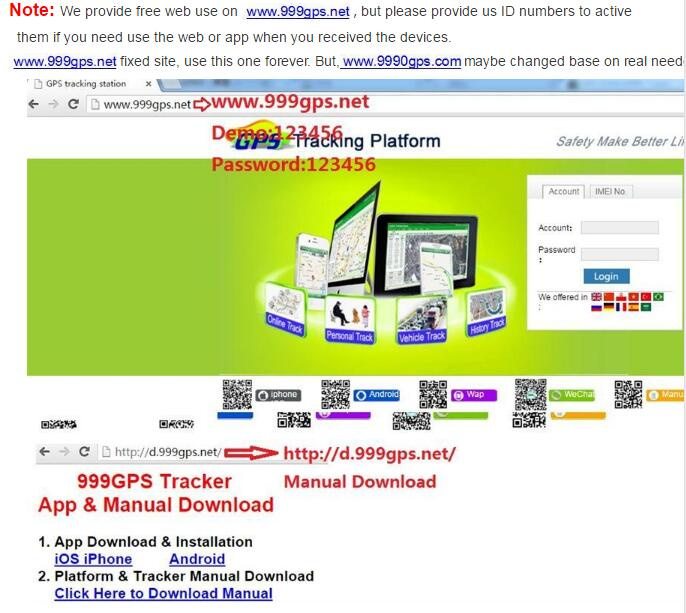

Free web software platform :
Package include:1pc* Main unit CCTR-800
1pc* Car adapter
1pc* USB charging wire
1pc* CD Manual
