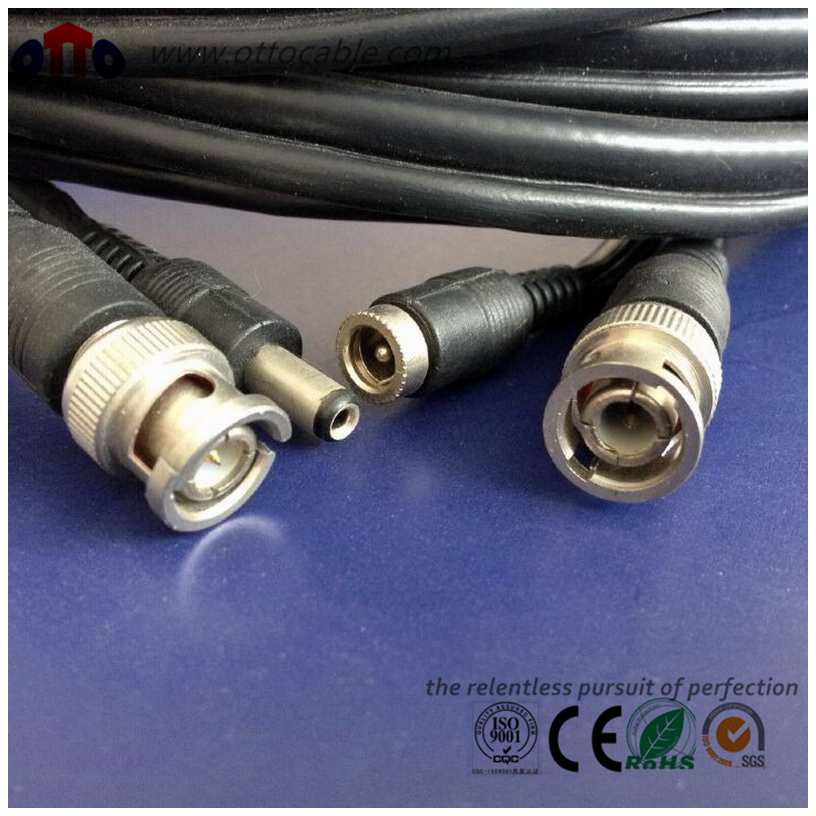

CCTV Coaxial Cables Rg59+2c with Connectors
| Price: |
Negotiable/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5000/Meter |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
RG59+2c With Connectors |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ottocable: |
Rg59+2c with Connectors |
| Inner Conductor: |
0.81CCS/Bc |
| Insulation: |
3.66foam PE |
| Shield: |
4.20CCA/Bc Wire Braid |
| Jacket: |
6.10pve/PE |
| 2c (Power Wire): |
2*18AWG Bc/CCA |
| Application: |
CCTV |
| Certification: |
RoHS |
| Conductor Material: |
4.20 CCA/Bc Wire Braid |
| Cover Material: |
6.10 PVC/PE |
| Type: |
Coaxial |
| Wire Core Material: |
0.81CCS/Bc |
| Model: |
Rg59+2c with Connectors |
| Brand: |
Ottocable |
Product Description
RG59U+2C OverviewThis 75 Ohm RG59 is the most commonly coaxial cable used in existing and next generation TV network and security monitoring and control systems. Features· 75 Ohm data signal transmission;· The inner conductor could be Copper Clad Steel or Bare Copper;· The insulation is foam PE or solid PE;· Customized cable color , winding and connector, meet your different requirements;· RoHS compliant;Assemblies & ApplicationThis 75 Ohm RG59 coaxial cable can be fixed with kinds of connectors,such as F,BNC,TNC connectors.These versatile cable assemblies with various lengths have been widely applied to existing and next generation TV network and security monitoring and control systems.
CATV/MATV Coax Cable RG59U+2C Construction| Item | Material | Diameter(mm) | Remarks |
Inner Conductor
Insulation
Shield
Jacket
2C (power wire) | CCS/BC
Foam PE
CCA/BC Wire Braid
PVC/PE
BC/CCA | 0.81
3.66
4.20
6.10
2*18AWG | Per customer's requirements:
The inner conductor could be CCS or BC;
The shield could be 112 ,128 or 144 CCA/BC wires braiding; |
Electrical CharacteristicsImpedance (Ω)
Capacitance (pF/m)
Velocity of Propagation (%)
Dielectric strength(kV)
V.S.W.R
Return Loss
Screening Effectiveness(db)
Min. Bending Radius (mm)
Operating Temperature(0C) | 75±3
54±2
84.0
1.6
≤1.2
≥20
≥85
35.0
-25 to +70 |
Attenuation (@200C)| Frequency(MHz) | Max Attenuation(dB/100m) |
300
400
500
600
750
1000 | 14.06
16.73
18.70
20.34
22.87
26.64 |
More Ideas1) If require conventional construction and materials, please click RG59;2) If require better shield effectiveness, please click RG59T or RG59Q;3) If require two-way transmission, please click RG59 DUAL;4) If require high tensile strength, please click RG59M or RG59DM;5) If require solid PE insulation, please click RG59S;6) If require a RG59 without foil shield, please click RG59U;7) If require both video transmission and power supply, please click RG59U+2C;8) If require a cable with smaller wire diameter, please click MINI RG59;9) If require a cable running through the window or door, please click FLAT WIRE;10) For more RG59 assemblies, please click RG59 ASSEMBLIES; 11) Any other requirements or queries, please click CONTACT US.
These kind of cables are serving for existing and next generation TV network and security monitoring and control systems
Company Link: http://ottoding.en.made-in-china.com/
Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.
After decades of practical experience and technical skills, we have been very professional on these products, which covers:
1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.
50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...
2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.
Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
