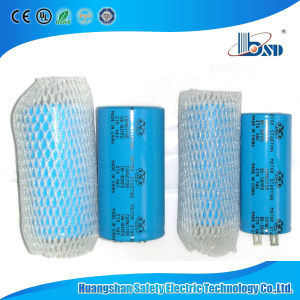

CD60A Motor Start Capacitor

Product Description

CD60-A MOTOR START CAPAClTORS
Specifications:

1.Used widely in motors,aircompressor,water pump etc
2.High performance & Long life Capacitor.
3. work well even in high temp.

Main Feature:

1.Round Aluminum sealed case with PVC sleeve

2.Voltages from 110V AC to 330V AC

3.UL Recognized Capacitors

Applicable Scope :

50Hz/60Hz single-phase AC motor , air conditioning, refrigerator compressor, air condition etc and so on each kind of single-phase AC motor.

Case size:

Technical Specifications:

Working Temperature Range:-25~+55°C

Rated Voltage Range:110~330V AC

Rated Capacitance Range:50~1000μf

Rated Permissible Tolerance of Capacitance:± 20%

Tangent of Loss Angle (tgs(20"C,100Hz)):tgs≤0.10,tgs≤0.15

Performance:+55"C 110~165VAC, on 1 second, off 59 seconds,30000times

                     +55°C,220~330VAC, On l second, off 59 seconds,15000times

   changing rate of capacitance:±15%within original measuring

      value tangent of loss angle:=0.20

Withstand Voltage Between TerminaIs:applied 1.2 times working voltage,

for 2 seconds. without break down Withstand Voltage Between Terminal and

case:2000VAC, for l0 seconds, without breakdown.
