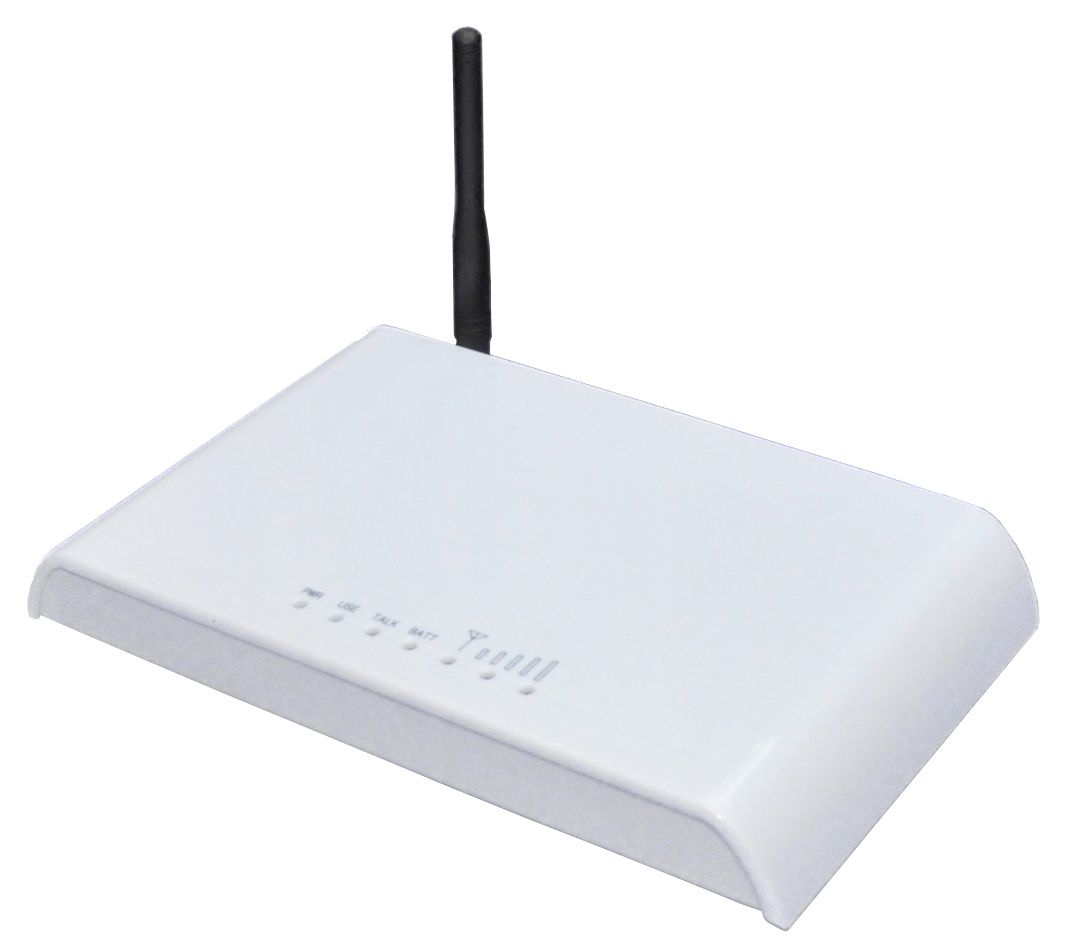

CDMA FWT Etross-8848 800MHz CDMA Gateway

Name: CDMA FWT Etross-8848 800MHz CDMA Gateway
Brand: all-electronics-online.com
SKU: 667974715
Availability: InStock
Rating: 4.6 (68 reviews)

Price:	US $ 40-50/Piece
Trade Terms:	FOB Shenzhen
Min Order:	1

Contact Supplier

Showroom Product Company Profile

Prod Model:	etross-8848
Color:	Black, White
Brand:	Etross
Frequency:	800MHz
Type1:	Wireless
Usage:	CDMA Gateway
Support Network:	Communication
Type:	Wireless

Product Description

1, Features:
1) It is a 1 channel CDMA Gateway which has 2 RJ-11 outputs for extensions;
2) It can connect with ordinary telephone set, PBX, VoIP Gateway, Billing meter etc.;
3) Dialing tone frequency: 450Hz;
4) Employ Industrial module
5) Can adjust dial interval from 0.5sec to 9 secs by setting up from telephone set;
8) Caller ID display;
9) DTMF Dialing;
10) Bell signal;
11) Polarity reversal;
12) The RJ-11 socket which connect the phone or billing system for metering purpose;
13) Antenna socket (SMA);
14) IP Presetting;
15) Working status and Signal Strength by LED indicator;
16) back up Li-ion battery( Optional) 7.2V 1300mAh. Standby 24hrs, talking time: 2.5hrs.

2, Technical Specifications
Phone interface: Supply RJ-11 Phone Interface
Hanging voltage: 45V
Picking off voltage: 30mA / 41mA
Dialing tone Frequency: 450Hz
Antenna interface: Antenna amplifying>2.5dB
Sensitivity: <-104DBM
Transmitting power<3W
AC-Adapter interface: Input: AC 110~240VAC 50~60Hz
Output: 12DC 1A.
AC-Adapter type: EU, US, AU, British can be optional

3, Operation Circumstance:
Operation temperature: -10c~60C
Storage temperature: -20C~70C
Operation humidity: 45%-95%
Atmosphere pressure: 86-106Kpa
Environment noise: <60dB
Transmitting Power: 2W
Sensitivity: <-104dbm
Antenna Amplifying: >2.5dB
Dialing frequency: 450Hz
Hanging voltage: 45V
Picking current: 30mA/41mA

4, Check Package:
ETROSS-8848 GSM FWT 1 piece;
AC-adapter 12V 1A: 1 piece,
GSM Antenna with 3m cable 1 piece,
User's Manual 1 piece,
G. W: 0.75kg per unit. And 20PCS per carton, 16kg per carton.
Gift carton Measurement: 55cmX34.5cmX32.5cm
"Power" port connects to power adapter that is connected to 110-220V AC power supply.
