| Prod Model: |
CAM1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Service Voltage: |
600V |
| MCCB Type: |
Moulded Case Circuit Breaker |
| Pole: |
3, 4 |
| Connnection Way: |
Press Terminal |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCCB |
| Poles Number: |
4 |
| Certification: |
CE |
Product Description

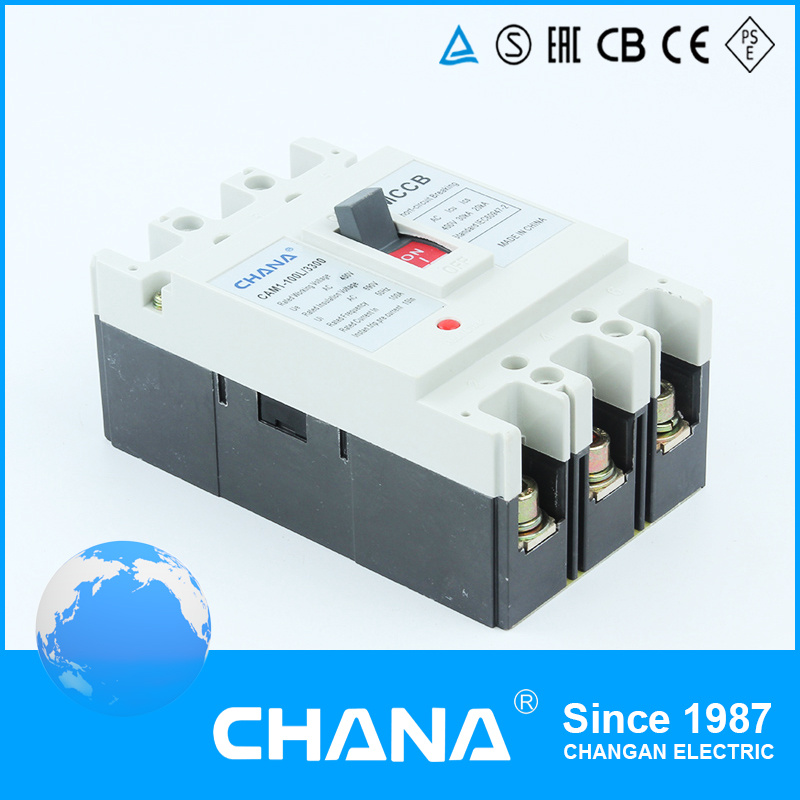

CAM1 Series MCCB 1. ApplicationCAM1 series moulded case circuit breaker (named as MCCB in the following) is a new type breaker which is used for infrequent exchange and startup in AC 60Hz condition. The MCCB is of protection function in overloading, short-circuit, and under voltage situation to protect circuit system and power device from damage.
The MCCB can be devided into L; M; H type according to their rated limit short circuit breaking capacity.
The MCCB is advantageous for its compact body, high breaking capacity (some even on flying arc), short arc-casing and superior aseismatic function...
The product complies with IEC60947-2, GB14048.2...
2. Specification | Type | CAM1-63L/CAM1-63M | CAM1-100L/CAM1-100M | CAM1-225/CAM1-250 |
| Rated frame level current Inm(A) | 63 | 100 | 225 |
| Rated current In(A) | 10,12,16,20,25
32,40,50,63, | 16,20,25,32,40,
50,63,80,100 | 125,160,180,200,225,250 |
| Rated insulated voltage Ui (AC V) | 500 | 800 | 800 |
| Rated impulse stand voltage Uimp(V) | 8000 | 8000 | 8000 |
| Rated working voltage Ue (AC V) | 400/415 | 400/415 | 400/415 |
| Poles | 3 | 4 | 3 | 4 | 3 | 4 |
| Rated limited short circuit breaking capacity level | L | M | L | M | L | M | L | M | L | M | L | M |
| Rated imited short circuit breaking capacity Icu(KA) | 400/415V | 20 | 30 | 20 | 30 | 30 | 50 | 30 | 50 | 35 | 50 | 35 | 50 |
| Rated working short circuit breaking capacity Ics(KA) | 400/415V | 15 | 22.5 | 15 | 22.5 | 22.5 | 37.5 | 22.5 | 37.5 | 26.25 | 37.5 | 26.25 | 37.5 |
| Operation characteristic (Times) | Connected | 2000 | 2000 | 2000 |
| Break | 10000 | 10000 | 10000 |
| Outlook dimension | L | 135 | 150 | 165 |
| W | 78 | 103 | 92 | 122 | 107 | 142 |
| H | 73.5 | 81.5 | 72 | 88 | 86 | 103 |
| Weight (g) | 735 | 846 | 1464 | 1952 | 1257 | 1493 | 1493 | 1900 | 1714 | 2014 | 1900 | 2014 |
| Arcing distance (mm) | 0, ≤50 | 0, ≤50 | 0, ≤50 |
| Type | CAM1-400M CAM1-400H | CAM1-630M CAM1-630H | CAM1-800H |
| Rated frame level current Inm(A) | 400 | 630 | 800 |
| Rated current In(A) | 225,250,315,350,400 | 400,500,630 | 630,700,800 |
| Rated insulated voltage Ui (AC V) | 800 | 800 | 800 |
| Rated impulse stand voltage Uimp(V) | 8000 | 8000 | 8000 |
| Rated working voltage Ue (AC V) | 400/415 | 400/415 | 400/415 |
| Poles | 3 | 4 | 3 | 4 | 3 | 4 |
| Rated limited short circuit breaking capacity level | L | M | L | M | L | M | L | M | H | H |
| Rated imited short circuit breaking capacity Icu(KA) | 400/415V | 50 | 70 | 50 | 70 | 50 | 70 | 50 | 70 | 80 | 80 |
| Rated working short circuit breaking capacity Ics(KA) | 400/415V | 37.5 | 52.5 | 37.5 | 52.5 | 37.5 | 52.5 | 37.5 | 52.5 | 60 | 60 |
| Operation characteristic (Times) | Connected | 1000 | 1000 | 500 |
| Break | 5000 | 4000 | 3000 |
| Outlook dimension | L | 257 | 270 | 280 |
| W | 150 | 198 | 182 | 240 | 210 | 280 |
| H | 106.5 | 110 | 11.5 |
| Weight (g) | 5420 | 7743 | 6116 | 7116 | 7116 | 9929 | 8526 | 11731 |
| Arcing distance (mm) | 0, ≤50 | 0, ≤100 | 0, ≤100 |

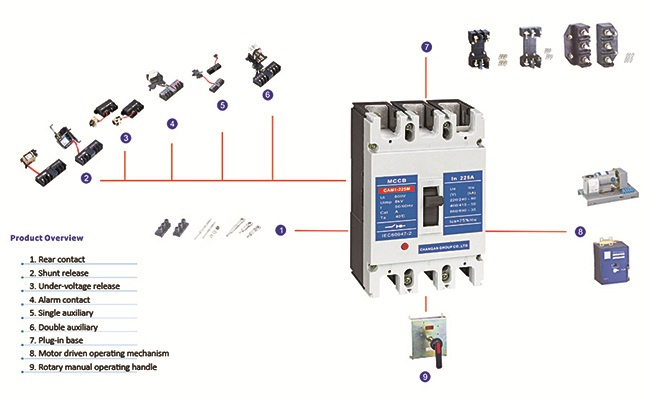

3. Annex System Drawing
4. Company ProfileChangan Group Co., Ltd, Established in 1987, comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 30years.
We manufacture and export varieties of low voltage electrical appliance including all kinds of Circuit Breaker,
Contactor, Relay, Switch, Solar Inverter etc..
1. We already get the certificate of ISO9001, CE, SGS.CB for most of our products.
2. We have 30 years of manufacture and 20 years exporting experience.
3. We have completely sales service system, ensure every detail is going smooth.
4. We have new designed products each year by our R&D Department.
5. Perfect testing system ensure each product is qualified.
6. We have a good reputation in Russia, Turkey, Europe, South America, Mid-east and Africa Market.
Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.
Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.
We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.
All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".
We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
