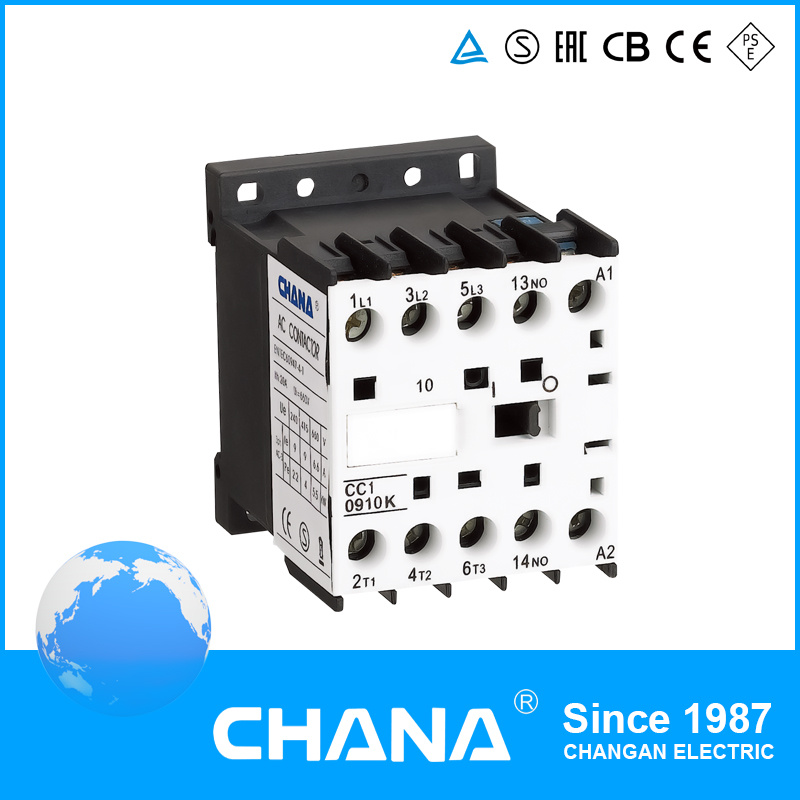

CE and RoHS AC Mini Contactor for Low-Voltage Distribution System

Prod Model:	CC1-0910K
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Amper:	up to 12A
Voltage:	220V
Rated Frequency:	50/60Hz
Stardard:	IEC60947-4
Size:	Miniature
Theory:	Thermal Relay
Protective Characteristics:	Open Relay
Load:	Medium Power Relay
Action Principle:	Electronic Type

Product Description

General of DC mini contactor
Application: Remote making & breaking circuits; Protect circuit
From over-load when assembling with thermal over-load relay;
Frequent start-up and control of AC contactor;
DC mini contactor Electric ratings: AC50/60Hz, 690V, up to 12A;
Utilization category: AC-3, AC-4;
Altitude: ≤ 2000m;
DC mini contactor Ambient temperature: -5º C~+40º C;
Mounting category: III;
Mounting conditions: Inclination between the mounting plane and the vertical plane should not exceed ± 5° ;
DC mini contactor Standard: IEC/EN 60947-4-1. IEC/EN 60947-5-1.
Control Coil Voltage(AC Coil Operation)
About US:
Changan Group Co., Ltd specializing in the R&D, manufacture and sale of low voltage Products, such as Circuit Breakers, Contactors, Relays, Switches, Distribution boxes and other related products. Our factory, with the aim of high quality and low price, offers superior OEM services, and has accumulated abundant experience in manufacturing low voltage.
1. We already get the certificate of ISO9001, CE, SGS. CB IEC TUV
2. We have 27 years of manufacture and 17 years exporting experience.
3. We have completely sales service system, ensure every detail is going smooth.
4. We have new designed products each year by our R&D Department.
5. Perfect testing system ensure each product is qualified.
6. We have a good reputation in Russia, Turkey, Bengal, Thailand, south American, Mid-east market and so on.

How to Order?
1. Please let us know what kind of model, color, poles and rated current etc.
2. Proforma invoice (PI) will be sent to you.
3. Please check and confirm the PI.
4. Once we confirmed the order, please pay it soon.
5. After full payment, all goods will be sent to you in 3-5 days as usual.
6. OEM is welcomed. Free OEM for more than usd3000 orders.
Shipping:
1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).
2. We Provide Drop shipping Service.
3.5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
4. In order to ensure you receive your order tax free upon import, we declare lower value.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.

Payment:
1. We usually use T/T
2.30% deposit and 70% before shipping
3. L/C also acceptable

Warranty:
1. We provide 1.5 year warranty.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
Welcome to inquire, negotiate, we will be happy to provide you with the best quality products and personalized service!

Volts(VAC)	24	36	42	48	110	127	220	230	240	380	415	440	480	500	600
50HZ Code                      60HZ                             50/60HZ	B5	C5	D5	E5	F5	G5	M5	P5	U5	Q5	N5	R5	-	S5	Y5
	B6	-	D6	E6	F6	G6	M6	-	U6	Q6	-	R6	T6	-	-
	B7	-	D7	E7	F7	-	M7	P7	-	Q7	N7	R7	-	-	-
Control Coil Voltage(DC Coil Operation)
Volts(VDC)	12			24			36			48		110		220
Code	JD			BD			CD			ED		FD		MD

Standard	IEC/EN60947-4-1          IEC/EN60947-5-1
Model No.		CC1-06E	CC1-09K	CC1-12K
Rated Conventional Heating Current	lth(A)	16	20	20
Rated Voltage Ui(V)	Ui	690	690	690
Rated Operation Current Ue=380/415V	AC~3 le(A)	6	9	12
	AC~4 le(A)	1.5	3.5	5
Power Controlled 3ph cage Motor AC~3	220/240V KW	2.2	2.2	3
	380/415V KW	3	4	5.5
	660/690V KW	5.5	5.5	7.5
Electrical life	AC~3	1000	1000	1000
	AC~4	200	200	200
Mechanical life		10	10	10
Matched Fuse	Size	RT16-00	RT16-00	RT16-00
	A	20	20	20
Main Fuse	3P or 4P
Auxiliary circuit	1NO or 1NC
