| Prod Model: |
EKMF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mechanical Endurance: |
100000 Cycles |
| Rated Frequency: |
50/6Hz |
| Rated Voltage: |
230V/400V |
| 16A,25A,40A,63A: |
Rated Current |
| Size: |
Miniature |
| Theory: |
Electromagnetic Relay |
| Usage: |
Household Appliances Relay |
| Load: |
High Power Relay |
| Action Principle: |
Electromagnetic Type |
Product Description

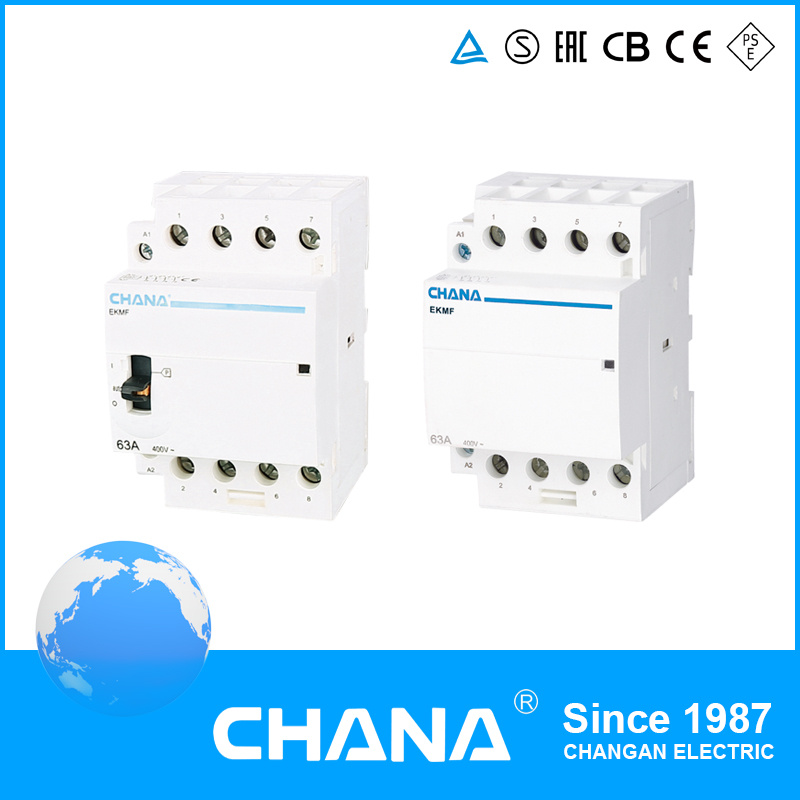

Product Description of the modular contactor
Modular contactor's Construction and Feature
Compact and modular design
Electro-magnetic mechanism free of noise
Contact position indication
Big contact capacity and long endurance
Technical Data of the modular contactor
Power circuit
Rated current: 16, 25, 40, 63A
Rated voltage:
230V 2pole
400V 4pole
Modular contactor Rated frequency: 50/60Hz
Remote control circuit(coil)
Control voltage: 24V, 220V-240V
Modular contactorRated frequency: 50/60Hz
Mechanical endurance: 100, 000 cycles
Electrical endurance: 30, 000 cycles
Ambient temperatu re: -5º C-+60º C
Connection terminal: Pillar terminal with clamp
Installation of the modular contactor:
On symmetrical din rail
Modular contactor Panel mounting
Contact form
2P: 2NO, 2NC, 1NO+1NC
4P: 4NO, 4NC, 3NO+1NC, 2NO+2NC
Application
Modular contactors are essential for controlling and automation duties in dwellings offices, shops and hospitals. They are particularly suitable for switching lighting installations, heat pumps, night storage heating, air-conditioned plant and for other devices in building automation.
Feature
Standardized design
Silent operating by virtue of DC solenoid system
Switching condition indication
Specification
Standard control voltage (Ue): 20-230V/50/60Hz
Thermal continuous current (1th): 24A
Current rating for AC1: 24A
Pole number: 2, 4(either as main or auxiliary contacts)
Back up fuse gl max ratings: 35, 63, 80A
Mechanical endurance: 10 million cycles
Electrical endurance: 1 million cycles
Ambient temperature: -25~+55 degree Celsius
Connection capacity: Tunnel terminal for cables up to 25 square millimeters
Width in 17.5 square millimeters modules: 24A 35 millimeters (2 modules)
Our Services
In most time, the buyer need not to pay any customs. Well declare it as a gift and a low value to avoid the tax. But sometimes in some countries, the customs officer is strict. We are not accountable for any customs fee, Please check it out the customs policy at your own place, such as Italy and Holland. If you have to pay thecustoms fees, it is your duty to your own country, the buyer should understand this situation. Buyers are responsible for any insurance. Please contact with us advance if you need.
Packaging & Shipping
1. WORLDWIDE SHIPPING. (Except some countries and APO/FPO)
2. Orders processed timely after the payment verification.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
4. The images shown are not the actual item and are for your reference only.
5. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
6. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
7. Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
Company Information
Do you know about us?
1. China Top 100 Industrial Electrical Enterprise
2. High-tech Enterprise
3. Our Laboratory is China Key Industrial Electrical Laboratory;
4. We have completely sales service system, ensure every detail is going smooth.
5. We have new designed products each year by our R&D Dpartment.
6. Perfect testing system ensure each product is qualified.
7. Want know more of us? Waiting for your inquiry.
| Type | In(A) | Rated AC-1 | Power(kW) AC-3 | Coil consumption
on pull-in holding | Closing time | Opening time |
| EKMF | 24 | 230V | 400V | 230V | 400V | 4W | 25-35ms | 30-40ms |
| 2P 4P | 9 | 16 | 2.2 | 4 |
