CE and RoHS Approved Modular Contactor for Circuit Protection

Name: CE and RoHS Approved Modular Contactor for Circuit Protection
Brand: all-electronics-online.com
SKU: 744398925
Availability: InStock
Rating: 4.6 (75 reviews)

Price:	US $ 2.5-3/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	EKMF16/25A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Poles:	2p
Mechanical Endurance-:	100000 Cycles
Rated Frequency:	50/6Hz
Rated Voltage:	230V/400V
Rated Current:	16A, 25A, 40A, 63A
Size:	Miniature
Theory:	Electromagnetic Relay
Usage:	Household Appliances Relay
Protective Characteristics:	Open Relay
Load:	High Power Relay

Product Description

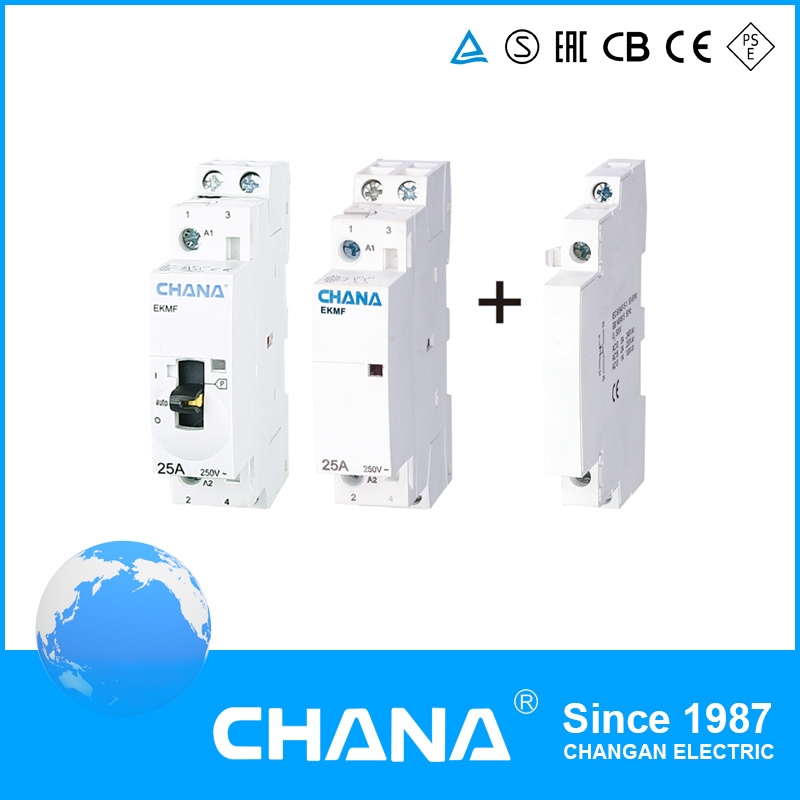

Product Description of the modular contactor

Modular contactor's Construction and Feature
Compact and modular design
Electro-magnetic mechanism free of noise
Contact position indication
Big contact capacity and long endurance

Technical Data of the modular contactor

Power circuit
Rated current: 16, 25, 40, 63A
Rated voltage:
230V 2pole
400V 4pole
Modular contactor Rated frequency: 50/60Hz
Remote control circuit(coil)
Control voltage: 24V, 220V-240V
Modular contactorRated frequency: 50/60Hz
Mechanical endurance: 100, 000 cycles
Electrical endurance: 30, 000 cycles
Ambient temperatu re: -5º C-+60º C
Connection terminal: Pillar terminal with clamp

Installation of the modular contactor:
On symmetrical din rail
Modular contactor Panel mounting
Contact form
2P: 2NO, 2NC, 1NO+1NC
4P: 4NO, 4NC, 3NO+1NC, 2NO+2NC

Application

Modular contactors are essential for controlling and automation duties in dwellings offices, shops and hospitals. They are particularly suitable for switching lighting installations, heat pumps, night storage heating, air-conditioned plant and for other devices in building automation.

Feature

Standardized design
Silent operating by virtue of DC solenoid system
Switching condition indication

Specification

Standard control voltage (Ue): 20-230V/50/60Hz
Thermal continuous current (1th): 24A
Current rating for AC1: 24A
Pole number: 2, 4(either as main or auxiliary contacts)
Back up fuse gl max ratings: 35, 63, 80A
Mechanical endurance: 10 million cycles
Electrical endurance: 1 million cycles
Ambient temperature: -25~+55 degree Celsius
Connection capacity: Tunnel terminal for cables up to 25 square millimeters
Width in 17.5 square millimeters modules: 24A 35 millimeters (2 modules)

Payment:
1. We usually use T/T (30% deposit before production and 70% to be paid against the copy of B/L).
2.If the Amount is small,you can pay to us by western union/Paypal/Money Gram.
3. L/C also acceptable
Warranty:
1. We provide 18 months warranty.
2. If the product is defective, please notify us within 10 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods

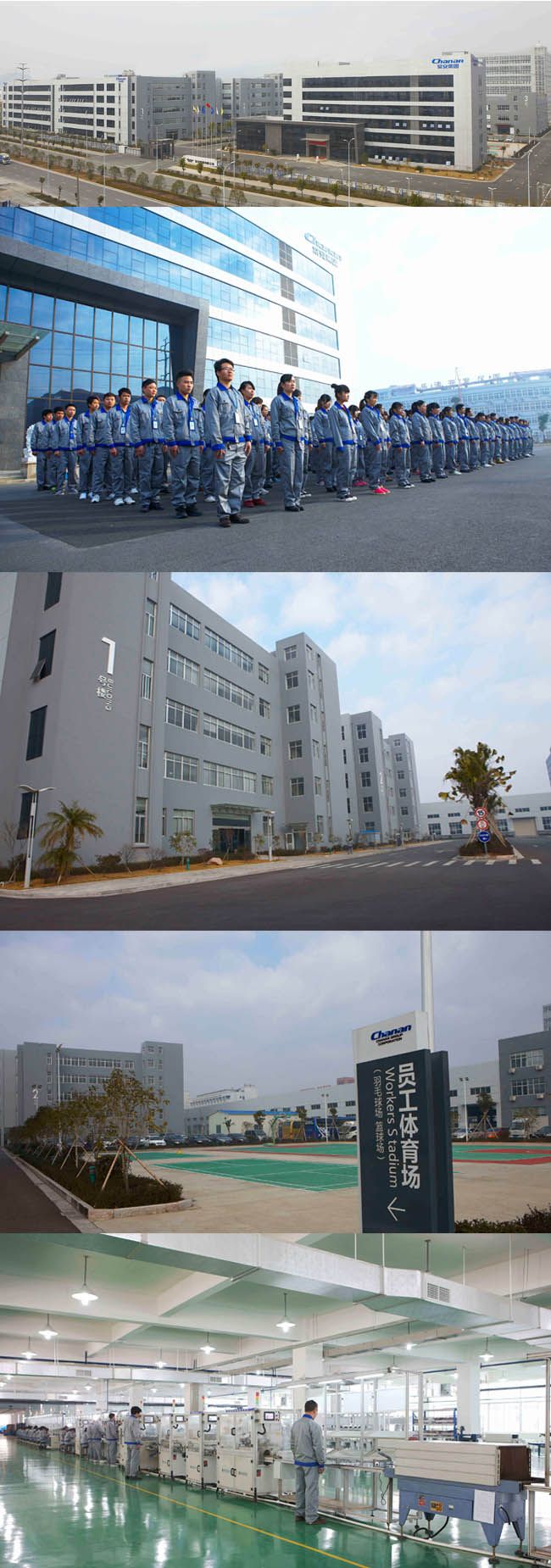

Company View:

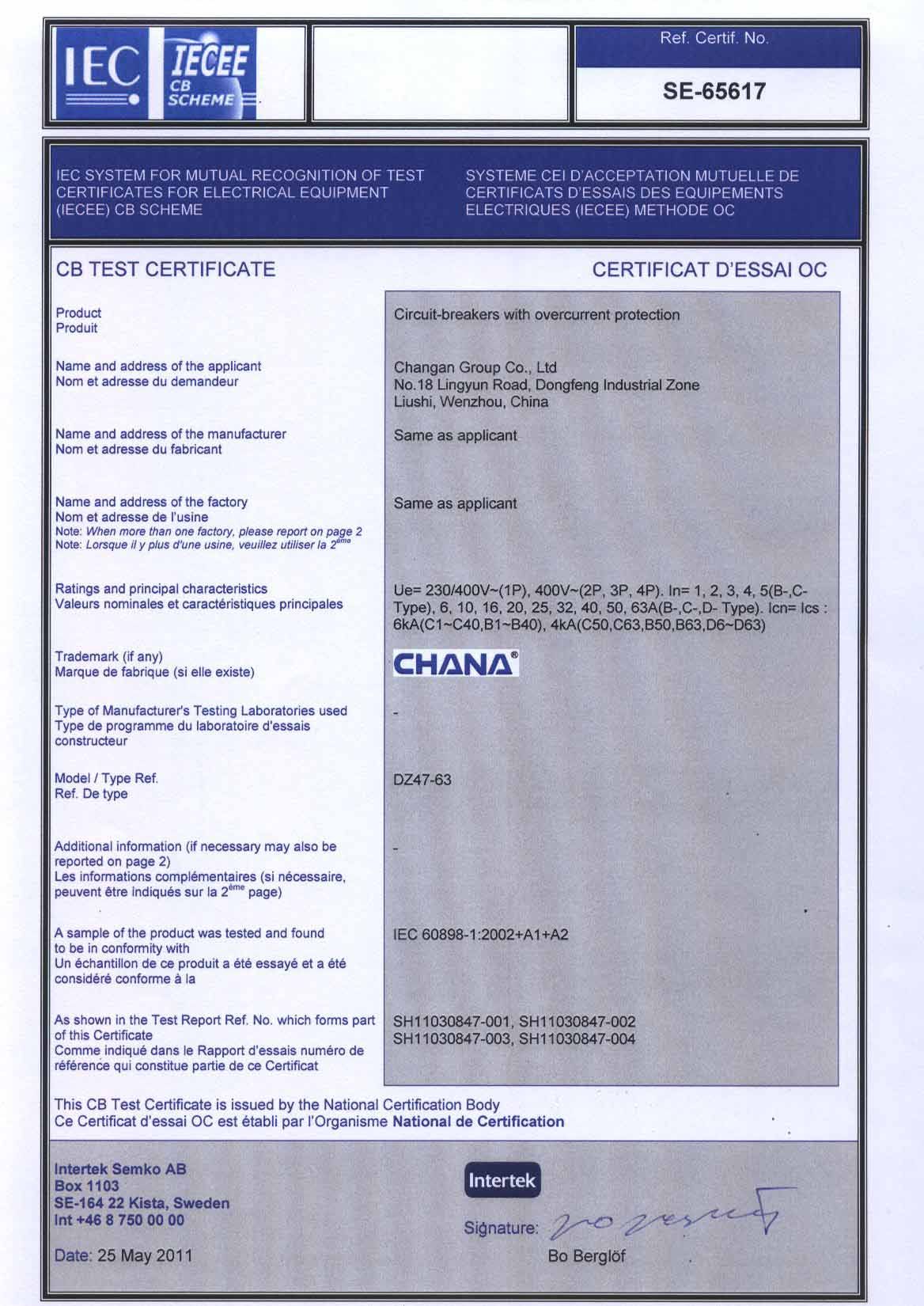

Certificates:

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
