CE Approval China Electronics Kp Thyristor

CE Approval China Electronics Kp Thyristor
Price: US $ 1.5-10/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T,Paypal,Western Union

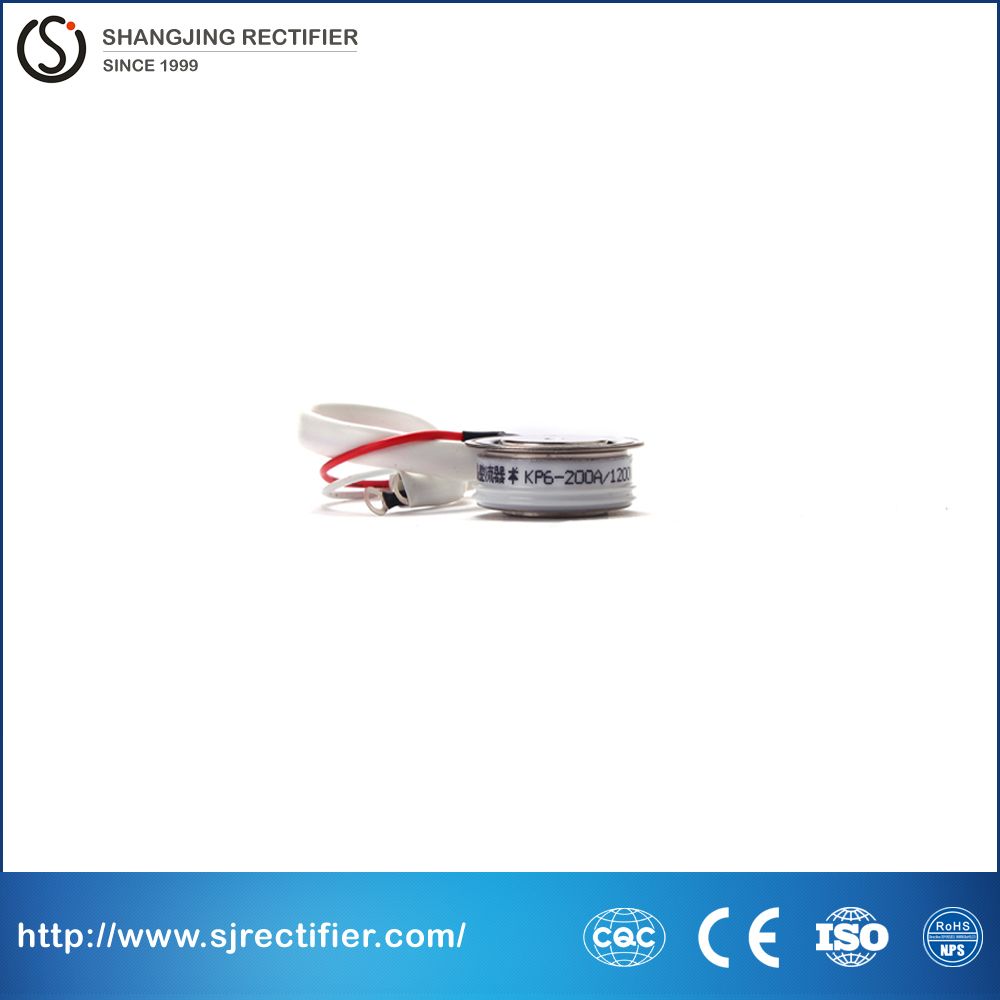

Prod Model: KP6-200A
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Vrrm: 200-2000V
Vtm: <2.6V
If(AV): 200A
Idrm: <10mA
Manufacturing Technology: Logic IC
Material: Compound Semiconductor
Type: Intrinsic Semiconductor
Package: Ceramic Metal Seal
Application: Hig Power Converter, Inverter
Model: Kp6-200A
Batch Number: 2016+
Brand: Shangjing

Product Description

Features
High surge current capability
Stud cathode and stud anode version
Wide current range

Typical Applications
Battery charges
Converters
Power supply
Machine tool controls
Welders
Motor control
TypeIT(AV)IF(RMS)VTMVRRMIDRMIGTVGTIHdv/dtdi/dtTjRjcWtOutlineHeatsink
THS55° C
25° C









AAVVmAmAVmAV/μ sA/μ s° C° C/Wkg
KP5A58≤ 2.2200-2000≤ 85-45≤ 2.55-45≥ 500/-40
~
+125
≤ 3.00.012B1SZ13
KP10A1016≤ 2.2200-2000≤ 85-45≤ 2.55-45≥ 500/≤ 2.50.027B2SZ14
KP20A2032≤ 2.2200-2000≤ 85-45≤ 2.55-45≥ 500/≤ 1.00.029B3/D1SZ15
KP30A3048≤ 2.2200-2000≤ 105-50≤ 2.55-50≥ 800100≤ 0.50.112D2SZ16
KP50A5080≤ 2.4200-2000≤ 105-150≤ 2.55-150≥ 800100≤ 0.140.142D3SZ16
KP100A100160≤ 2.4200-2000≤ 105-200≤ 2.55-200≥ 800100≤ 0.110.207D4SL17
KP200A200320≤ 2.6200-2000≤ 105-200≤ 2.55-200≥ 800100≤ 0.110.327D5SL18
KP300A300480≤ 2.6200-2000≤ 305-2
00
≤ 2.55-200≥ 800100≤ 0.080.472D6SL19
KP400A400550≤ 2.6200-3000≤ 305-200≤ 2.55-200≥ 800100≤ 0.050.750D7SL20
KP500A500800≤ 2.6200-3000≤ 305-200≤ 2.55-200≥ 800100≤ 0.040.927D7/D8SL20

China Shangjing Rectifier Co., Ltd. Was co-founded by China DELIXI Group, Shanghai Rectifier Co., Ltd. And Jingtai Electric Co., Ltd. In 1999. As one of the most professional manufacturers of power semiconductors and silicon rectifying whole set equipments, as well as the manufacturer for timer switch ( programmable timer switch, digital timer switch mechanical timer switch ) and circuit breaker ( mini circuit breaker, DPN miniatire circuit breaker, DPNL residual current circuit breaker etc) our company has been devoted to provide the high quality electronicsr products for our customers all over the world.

Shangjing Rectifier Co., Ltd. is located in Liushi Town which is well known as the "Capital of Electric City" in China. We are very close to the Wenzhou Airport and the deep-water sea port, which makes it very easy for us to reach our customers from the whole world.

Our company has been certified by China Industrial Department and we have got CE certificate. Furthermore, our products are compliant to the latest RoHS directions.

We have brought advanced technologies and equipment from abroad and kept improving our management and products quality. We stick the spirit of "Chasing for high quality and Servicing our clients with all our heart and credibility", we have gained a lot of honors like "AAA class China quality & credibility company", "member of China Electric Industry Association", etc. We have been exporting our products to Europe, South and North America, Middle East, Africa and earned a lot of good feedback.

We hope our high quality products and service will be bringing successful future to all our customers.
