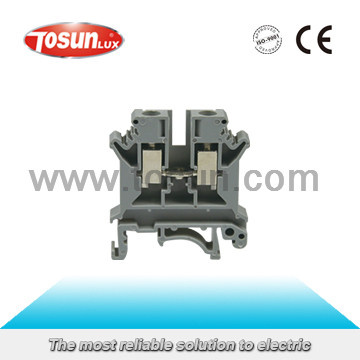

CE Approval UK Universal Terminal Block

Prod Model:	UK6N
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Current:	up to 309A
Rated Voltage:	690/800/1000
Application:	Mobile Phone
Environmental Protection:	Resistance to Environmental
Connection Mode:	In-Line Connector
Shape:	Rectangle
Contact Termination Form:	Pressure Welding
Brand:	Tosunlux

Product Description

FEATURES:

1. Closed screw pilot holes to ensure ideal screwdriver operation .
2. For a plurality of cross-sectional level of terminals equipped with a unified attachments,such as the end plates, packet separator.
3. Potential distribution through a fixed bridge or insert line access terminals central cavity side plug -in bridge .


SPECIFICATION:

Model	Hard Wire(mm²)	Soft Wire(mm²)	Rated Current(A)	Rated Voltage(V)	Dimension(mm)
UK2.5B	0.2-4	0.2-2.5	32	690	6.2 x 42.5 x 42
UK3N	0.2-4	0.2-2.5	32	800	6.2 x 42.5 x 42
UK5N	0.2-6	0.2-4	41	800	6.2 x 42.5 x 47
UK6N	0.2-10	0.2-2.5	57	800	6.2 x 42.5 x 47
UK10N	0.5-16	0.5-10	76	800	10.2 x 42.5 x 47
UK16N	2.5-25	4-16	101	800	12.2 x 42.5 x 54
UK35N	0.75-50	0.75-35	150	1000	15.2 x 50.0 x 62
UKH50	16-50	25-50	150	1000	20 x 70.5 x 83.5
UKH95	25-95	35-95	232	1000	25 x 83 x 97.5
UKH150	35-150	50-150	309	1000	31 x 100 x 118.5

ABOUT US

Wenzhou Tosun Electric Co., Ltd deals with numerous Electrical Products and LED Lights in high quality, such as voltage stabilizers, circuit breakers, AC contractors, meters, relays, control units, led spotling, led panel light.
1. Qualifications and Technological Strength: with full line of high-tech production equipment and great strength of technology support , ,first class engineering team.
2. Products are novel in designs, excellent in workmanship and tope reliable in quality.
3. "SEMKO", "CB", "CE" and "IRAM", and other international quality approvals.
4. Always pays special attention to protecting the benefits of clients.


WHY US?

       1. Clients' benefit first.

       2. Experinced in the line for more than 21 years.

       3. Reasonable price and good source of raw material.

       4. A group of professional inspectors monitor quality.

       5. TUV, SEMKO, CE, CB, ROHS Approval for products.

       5. Unique design for packing.

       6. Experienced salesmen offer one-to-one service.
