Ce Approved Bipolar Geared Step Motor 17 Name Series

Name: Ce Approved Bipolar Geared Step Motor 17 Name Series
Brand: all-electronics-online.com
SKU: 765687765
Availability: InStock
Rating: 4.6 (64 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	17HD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Packing Method:	Box with Polyfoam
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Type:	Electromechanical
Certification:	CE
Brand:	Rb

Product Description

Product Description

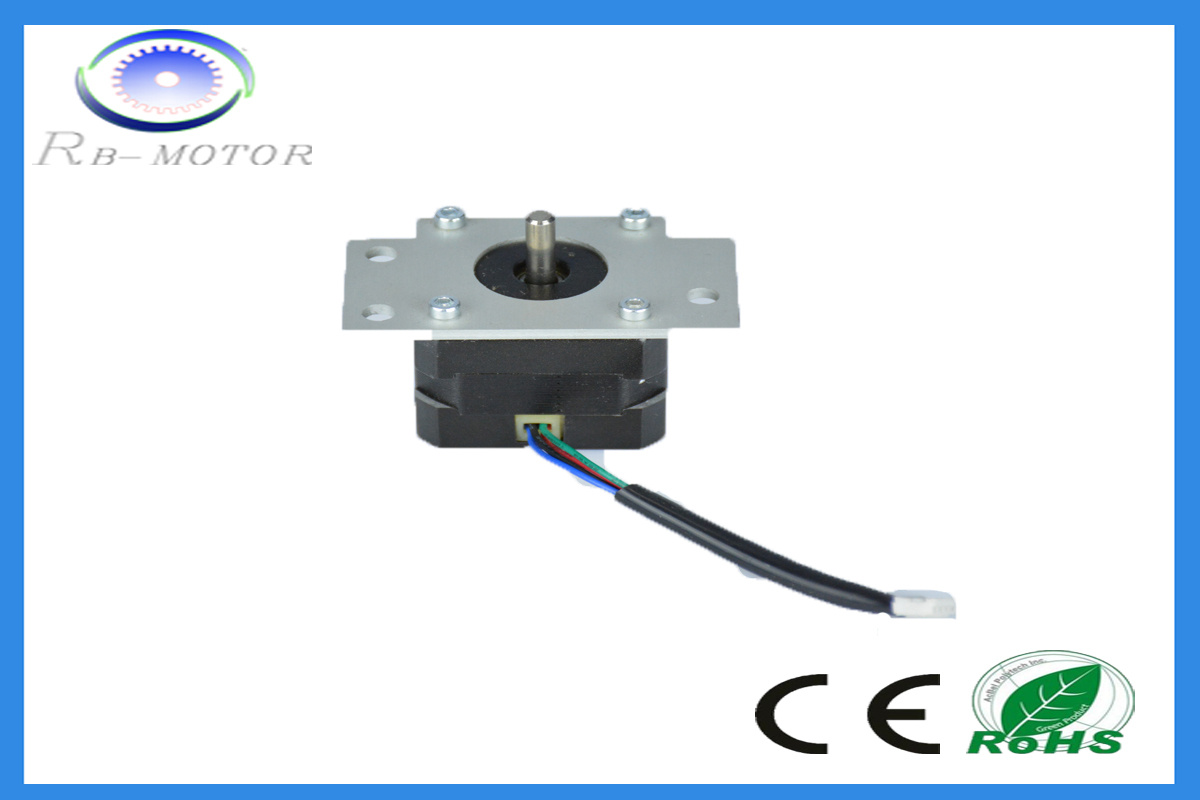

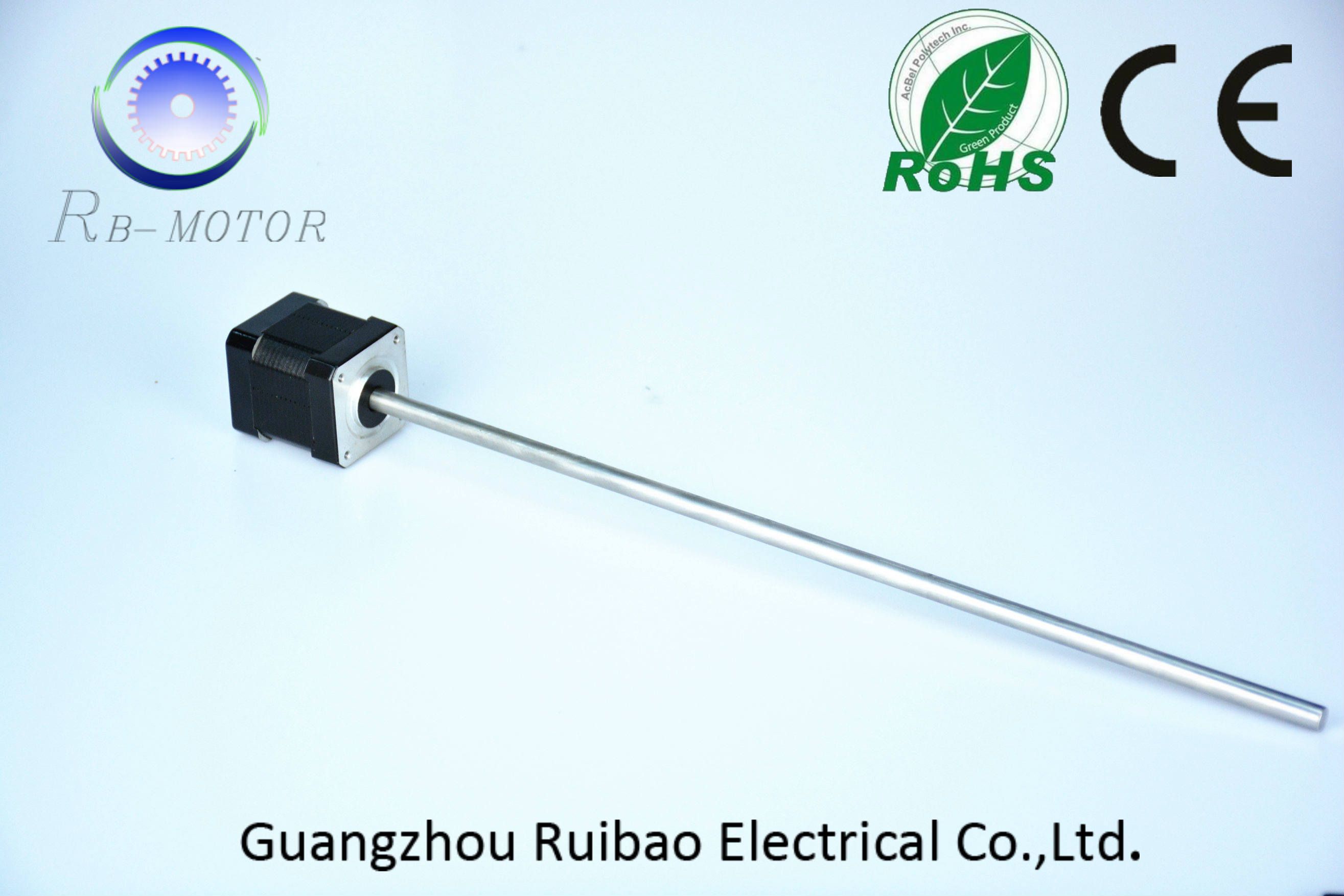

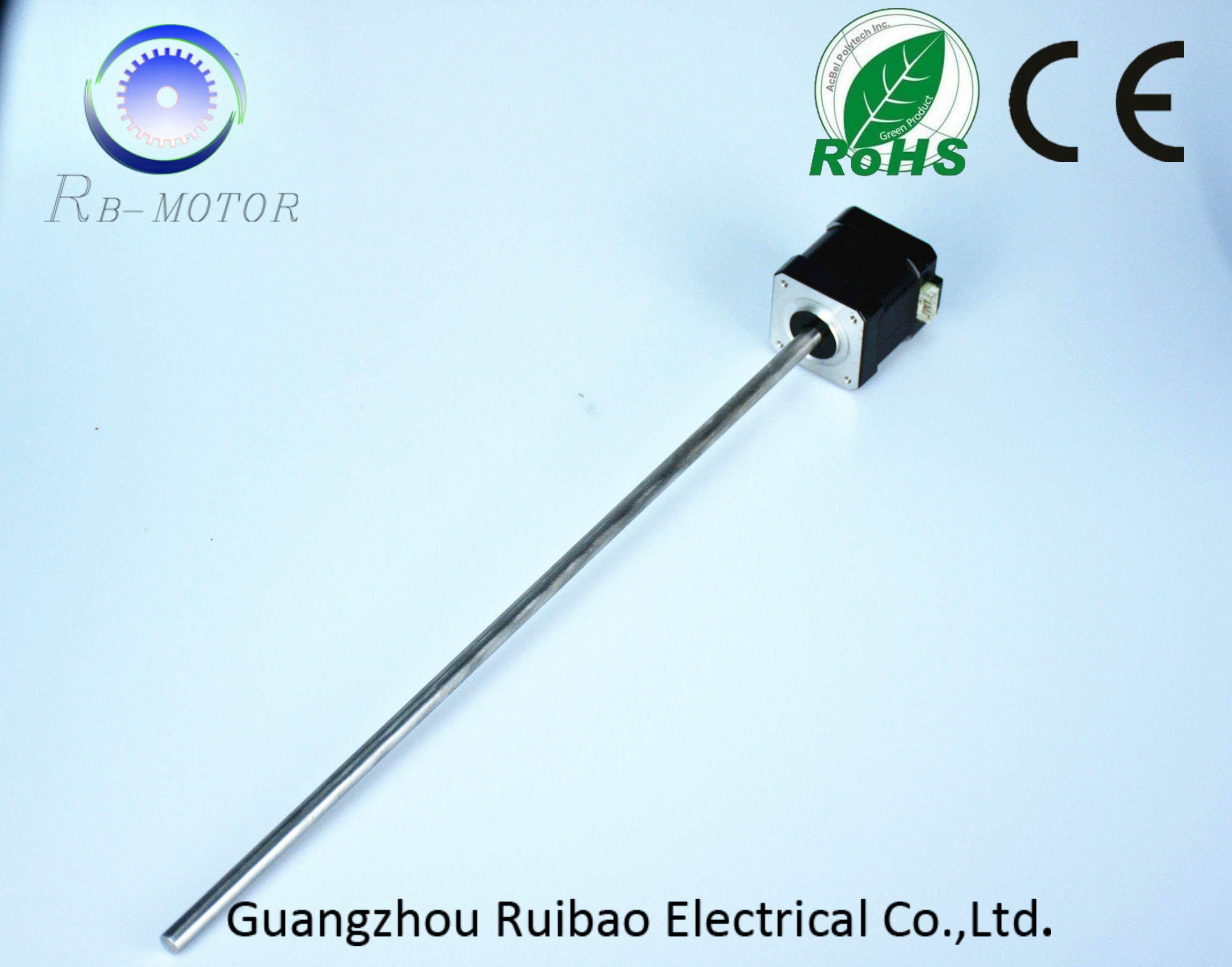

Two Phase 1.8 degree NEMA17 Hybrid Stepper Linear Motor / Stepping Motor / Step Motor 42mm x 42mm
Motor feature: High accuracy, Smooth output torque, Small size, Low noise
Applied to the printers / 3D printers, the lighting industry,the automation industry and the industrial control industry etc.

Technical Specification

Model No.	Winding Resistance	Winding Inductance	Rated Current	Rated Voltage	Holding Torque	Detent Torque	Max starting rate	Max slewing rate	Rotor Intertia	Weight	body length
	Ohm ±10%	mH ±20%	A/phase	DC V	mN.m	mN.m	PPS	PPS	g.cm²	Kg	mm
17HD0250Y-22APG13	2.1	2.5	1.33	2.8	220	11.8	2200	3500	52	0.300	34
17HD2031-13APQ-5K	1.65	3.2	1.68	2.8	36	11.8	2000	4200	40	0.300	40
17HD2232-22APQ-5K	2.8	5	1.5	2.8	36	11.8	2000	4500	38	0.300	40
17HDC6216-13APG27	1.65	2.8	1.68	2.8	440	11.8	2200	3500	39	0.300	48
17HD0520-22BPG5-13	2.6	3.2	1	2.6	220	20	2800	4500	54	0.600	34
17HD2225-22BPG-13B	1.5	3.3	1.68	2.52	450	20	2500	5500	58	0.670	40
