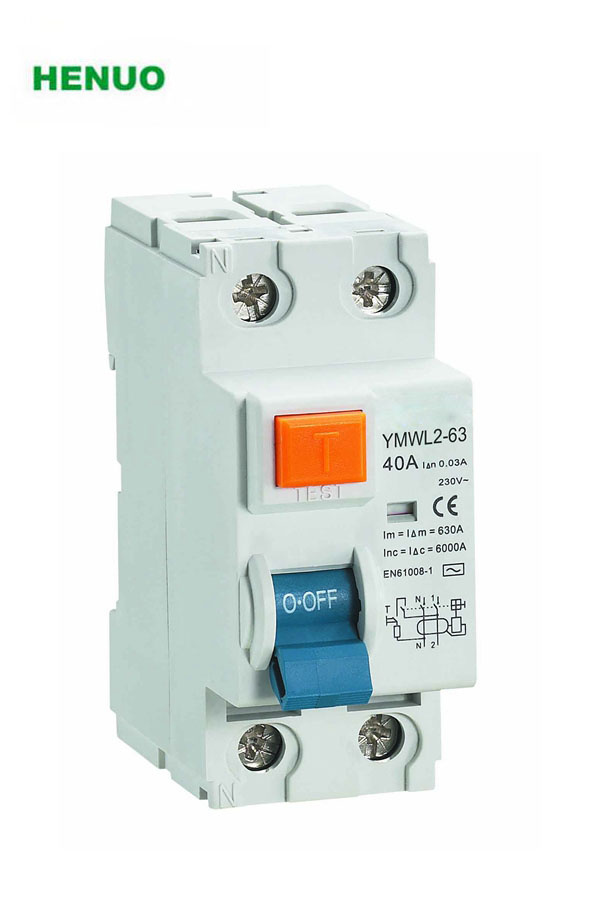

CE Approved ID Electro Magnetic Earth Leakage Circuit Breaker
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
YMWL2-63 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Current: |
25A, 40A, 63A |
| Rated Residual Operating Current: |
0.03A, 0.1A, 0.3A. |
| No Of Poles: |
2p and 4p |
| Rated Residual Current Operated Making A: |
500A(in=25A, 40A); 630A(in=63A). |
| Inc: |
6000A |
| IC: |
6000A |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Structure: |
ELCB |
| Poles Number: |
2 |
| Certification: |
CCC |
| Installation: |
DIN Rail Installation |
Product Description

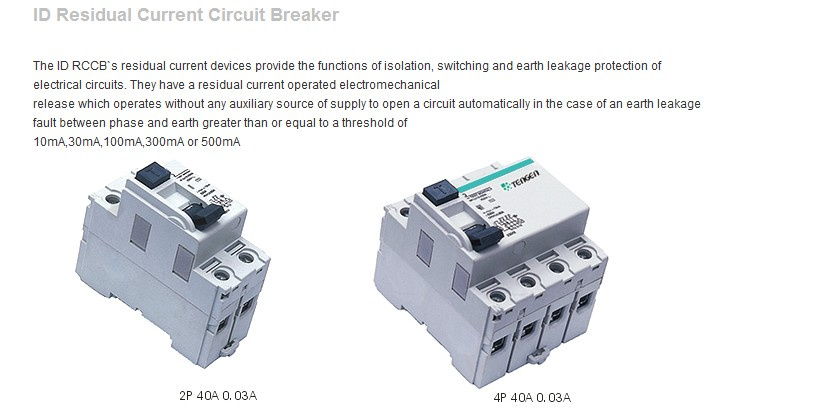

ID Residual Current Operated Circuit Breaker without overcurrent protection(Electro magnetic)
Application
The product is used in AC50 / 60Hz two poles 230V, four poles 400V, rated current up to 63A, It can automatically and immediately cut off power supply once someone suffers from electric shock or leakage current above specified value. It can effectively protect personal security and avoid the damage to equipment. The residual current operated circuit breaker can also function as overload and short-circuit protection and unfrequent changeover of line under normal condition.
The product is suitable for industry, business, building, residence, etc.
It is conformity with GB16916.1, IEC61008-1 standards.
Type Designation

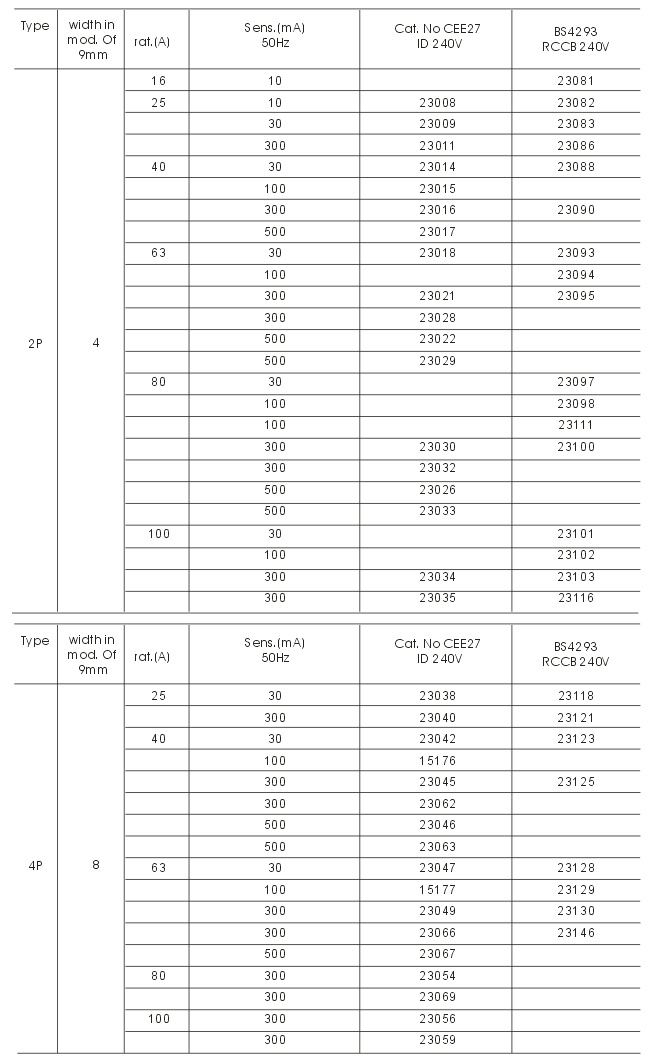

Main Technical Data
1. Rated current: 25A, 40A, 63A.
2. Rated residual operating current: 0.03A, 0.1A, 0.3A.
3. According to behaviour in presence of d. C. Components: Type A, Type AC.
4. No. Of pole: 2p, 4p.
5. Rated residual current operated making and breaking capacity Im: 500A(In=25A, 40A); 630A(In=63A).
6. Inc: 6000A;
7. IC: 6000A;
8. Rated residual non-operated current: Ino: 0.5In
Feature
1. Without auxiliary power supply, the product is designed with strong immunity and extending protection range against residual current.
2. With higher rated ultimate short circuit, up to 6KA.
3. Enclosure and functional parts made of imported plastics with flame-retardant, heat-resistant, and impulse-proof properties.
4. High reliable operation thanks to special design terminals. Even under the pollution environment, the working reliability of the product will never be changed.
5. Convenient mounting. More flexible and reliable operation with a handle.

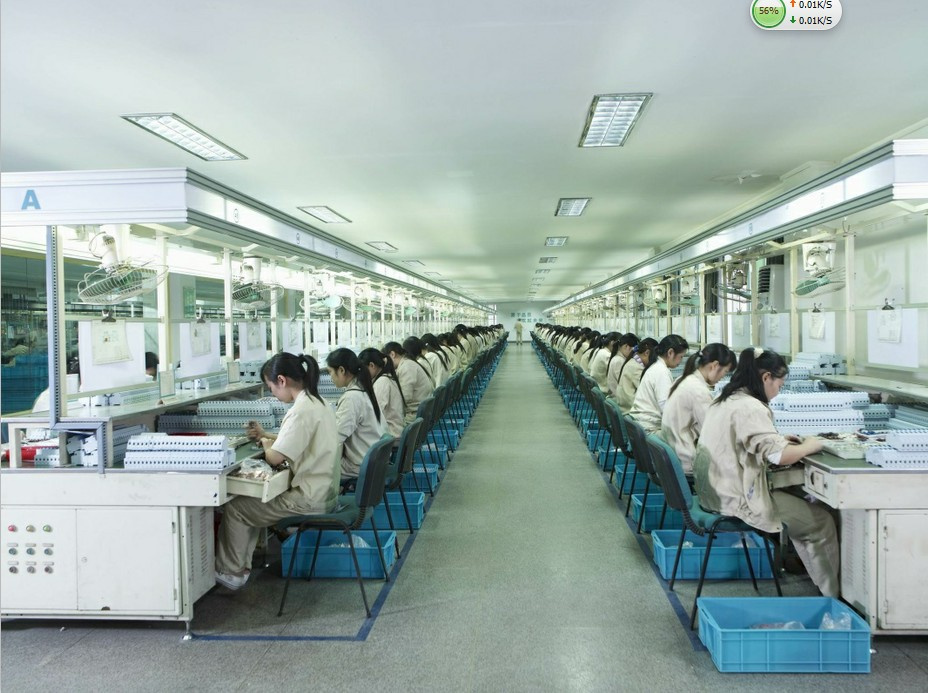

Yueqing Heng Nuo Imp. & Exp. Co., Ltd. is the export department for TENGEN GROUP Co., Ltd, it is one leading manufacturer and exporter in the fields of electrical apparatus, wiring accessories, hardware, fire alarm system, tools and so on, our company located in Liushi town of Wenzhou city where is the largest production centre in China for electrical products.
From 1983 to now, our company has cooperated with more than 80 factories, and produces over 20 kinds, thousands of models of high quality electric products yearly. Mainly including:
1. Electrical apparatus: Circuit breaker, AC contactor, Relay, fuse, timer, counter, distribution box, meter socket, current transformer, meter, pushbutton switch, LED pilot lamp, limit switch, pedal switch, float switch, industrial plug & socket, Stabilizer and so on.
2. Wiring accessories: Cable tie, cable clip, cable puller, cable marker, cable lugs, cable glands, terminal blocks, wiring ducts, insulated terminals, MCB insulated busbar, dinrail and so on.
3. Hardware: Flexible conduit & connector, EMT fittings, Metal switch boxes and so on.
4. Tools: Hand crimping tools, cable cutter, hydraulic crimping tool, tester, screwdriver and so on
5. Fire alarm and warning system: Fire alarm bell, electric bell, smoke detector, motor siren, buzzer, warning light and so on
Internationalization standard quality guarantee system:
The product quality of Tengen Group has been strictly controlled in each working procedure,
Many kinds of internationalization standard quality guaranteed system can be highly effective
Under company's strict monitoring. Fellowtrader commended, customer's approval can sufficiently
Make sure of our product quality.
"Tengen" was evaluated as " Chinese famous trademark", Tengen Group has obtained American
FMRC Corporation ISO9001 quality system authentication, ISO14001 environment management
System authentication, CCC authentication, European Union CE safe Authentication, American UL
Authentication and Dutch KEMA authentication and so on, at the same time, it has had the first
Side laboratory -- low voltage electric appliance test center which is the first connected with
International in China.
We promise to offer you superior products, favorable price, and timely delivery. If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
