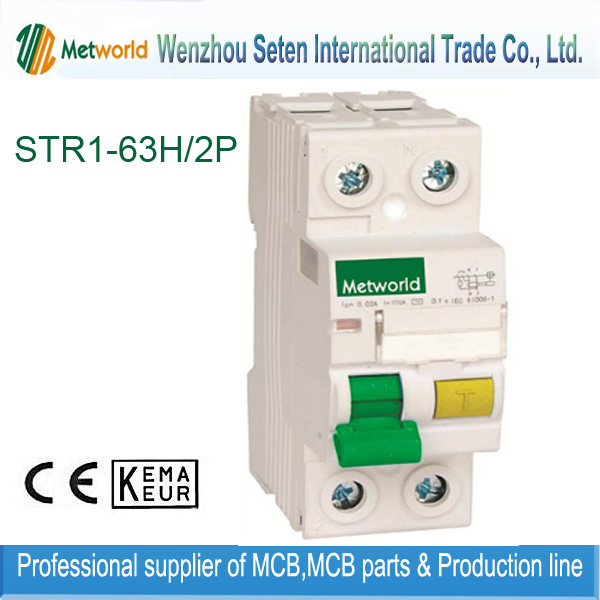

CE Approved Residual Current Circuit Breaker RCCB

Name: CE Approved Residual Current Circuit Breaker RCCB
Brand: all-electronics-online.com
SKU: 756109965
Availability: InStock
Rating: 4.8 (127 reviews)

Price:	US $ 100/Piece
Trade Terms:	FOB,CIF
Min Order:	120/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	STR1-63H
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	2p
Category:	RCCB
Standards:	CE
Color:	White ,Green
Brands:	Metworld
Current:	16,20,25,32, 40,50,63
Voltage:	230/400V AC
Typing:	AC,a
Sensitive Current:	10,30, 100,300
Origin Place:	Wenzhou
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	ELCB
Poles Number:	2
Certification:	CE

Product Description

STR1 Series Residual Current Circuit Breaker

Catalogue

Number

Rated

Current (A)

Number

of Pole

Rating

Type

Un(V)

IΔc(A)

STR1-63/2P

16,20,25,32,

40,50,63

10,30,

100,300

AC,A

230VAC

6000

STR1-63/4P

16,20,25,32,

40,50,63

10,30,

100,300

AC,A

400VAC

6000

The RCCB is in conformity with the standard of IEC61008. The RCCB can cut off the fault circuit immediately on the occasion of shock hazard of earth leakage of trunk line. Thus, it is suitable to avoid the shock hazard and fire caused by earth leakage. The RCCB is mainly suitable for useing in varieties of plants and enterprises, buildings constructions. It can be used in circuits up to 1 phase 230V and 3 phase 400V 50/60Hz. RCCB is not suitable for use on DC pulse system.
