| Prod Model: |
Power Star Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Peak Power: |
3 Times of Rating Power |
| Waveform: |
Pure Sine Wave |
| Thd: |
<3% |
| Low Noise: |
Yes |
Product Description
CE approved single phase dc ac Inverters with for fan
Model: Pure Sine Wave Inverter Charger Power Star Series 1KW-12KW (1ph in/1ph out)
Key Features
1:Large LCD display for more detailed content
2:Low noise but high efficiency while working
3:Fast and powerful charger with 35A and 70A
4:High conversion efficiency, smart soft start function
5:Pure sine wave output (THD<3%), available for sensitive loads
6:LCD digital display show voltage, load and battery information in real time
7:Insure the DC voltage of inverter in accordance with the battery voltage
8:Use advanced double CPU single chip computer intelligent control technology
9:Pure sine wave output, with strong overload capability and wide application
10:This Inverter is not only your ideal choice but also lash-up power in your life and work
11:Stable working performance: even in the situation of under voltage or over voltage, the inverter could endure 10% voltage fluctuation until it shutdowns

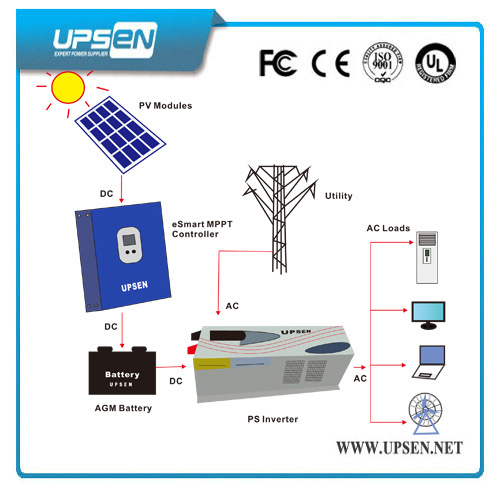

Application
UPSEN Power Srar Inverter can be used for various home appliances, Notebook, digital camera, video camera,incandescent, small television sets, refrigerator,Copiers, Scanners, digital camera etc.
Technical Specification
| Power Star Series |
Model No. |
PS1000 |
PS2000 |
PS3000 |
PS4000 |
PS5000 |
PS6000 |
Nominal Power |
1000W |
2000W |
3000W |
4000W |
5000W |
6000W |
AC Input |
Waveform |
Pure Sine Wave |
Voltage |
120VAC/230VAC |
Acceptable Voltage |
194-243VAC164-243VAC(wide mode) |
Line Low Transfer |
85V±4%/184(154 wide mode±4%) |
Line Low Return |
95V±4%/194(164 wide mode±4%) |
Line high Transfer |
135V±4%/253±4% |
Line high Return |
127V±4%/243±4% |
Frequency |
50Hz or 60Hz (Auto sensing) |
Line Low Transfer |
47Hz for 50Hz, 57Hz for 60Hz |
Line high Transfer |
55Hz for 50Hz, 65Hz for 60Hz |
AC Output |
Waveform |
Pure Sine Wave(bypass mode sync to input) |
Voltage |
120/220/230/240VAC(bypass mode sync to input) |
Voltage Regulation |
±10%rms(bypass mode sync to input) |
Frequency |
50Hz±0.3Hz(bypass mode sync to input) |
Peak Power |
3 times of rating power |
Short Circuit Protection |
Yes,shutdown after 10ms |
Power Factor |
0.9-1.0 |
DC Input |
Battery Voltage |
12V/24V |
12V/24V/48V |
24V/48V |
Minimum Start Voltage |
10V for 12V,20V for 24V,40V for 48V |
Low Battery Alarm |
10.5V for 12V,21V for 24V,42V for 48V |
Low Battery Transfer |
10V for 12V,20V for 24V,40V for 48V |
High Voltage Alarm |
16V for 12V,32V for 24V,64V for 48V |
Max Charging Current |
35A/70A |
Over Charge Voltage |
15.7V for 12V,31.4V for 24V,62.8V for 48V |
Transfer Efficiency |
Line Mode |
>95% |
Battery Mode |
>88% |
power saver |
Available when the load is less than 25 Watts |
Indicators |
7-LED Display |
From the right to the left,LED1 line mode (green lighting),LED2 inverter mode |
(green lighting),LED3 charging mode (yellow lighting),LED4 Fully charged |
(green lighting),LED5 over heat shutdown (red lighting) ,LED6 Overloaded |
shutdown (red lighting) ,LED7 Saving Mode (green lighting) |
3-LED Display |
Charging Mode(green lighting),inverter mode(green lighting), Alarm(red lighting) |
Switch selector |
Saving Mode is on/off when push the switch forwards/backwards, keeping it horisontal is turning the inverter off. |
|
Audible Alarm |
Sounding when the heatsink's tem is over 105ºC and shutdown after 30 seconds. |
Protections |
low battery,over charging,over temp,over load |
Communications |
RS-232/USB(custom-made) |
Enviromental |
Operating Environment |
0-40ºC,0-90%RH(non-condensing) |
Audible Noise |
<60dB |
Physical | | | | | | |
Net Weight(KG) |
18 |
20 |
22 |
35 |
38 |
40 |
Dimension L*W*H(mm) |
442*218*179mm |
598*218*179mm |
* Specification is subject to change without prior notice.
Competitive Advantages:
1: Three Years' warranty for sinewave inverter, and 1% free UPS or 2% free PCB Boards
2: Good after-sales service, we will be full responsible for any faults caused by our side
3: Professional experience in power field more than 10 years
4: Professional technical support before and after sales
5: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
6: Free OEM & ODM Service
7: Competitive price, quality and mature products
